Oxygen Sensor

California models

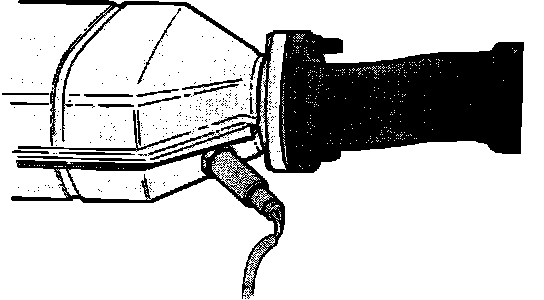

Oxygen Sensor (Lambda-sond) Location:




The oxygen sensor (lambda-sond) is located in the front section of the catalytic converter.

Federal models

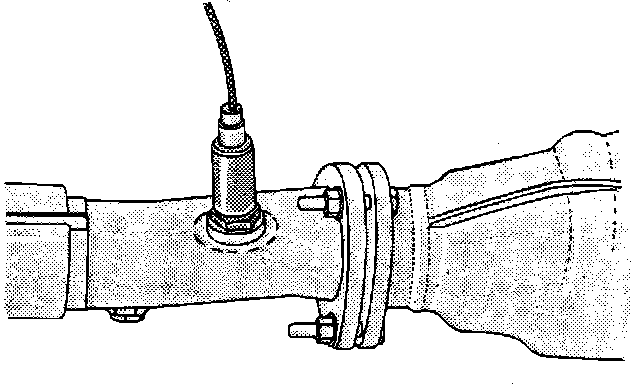

Oxygen Sensor (Lambda-sond) Location:




The oxygen sensor (lambda-sond) is located in the exhaust manifold approx. 6 in. in front of the catalytic converter.
