Headlamp Wash / Wipe

Wiring Diagrams:

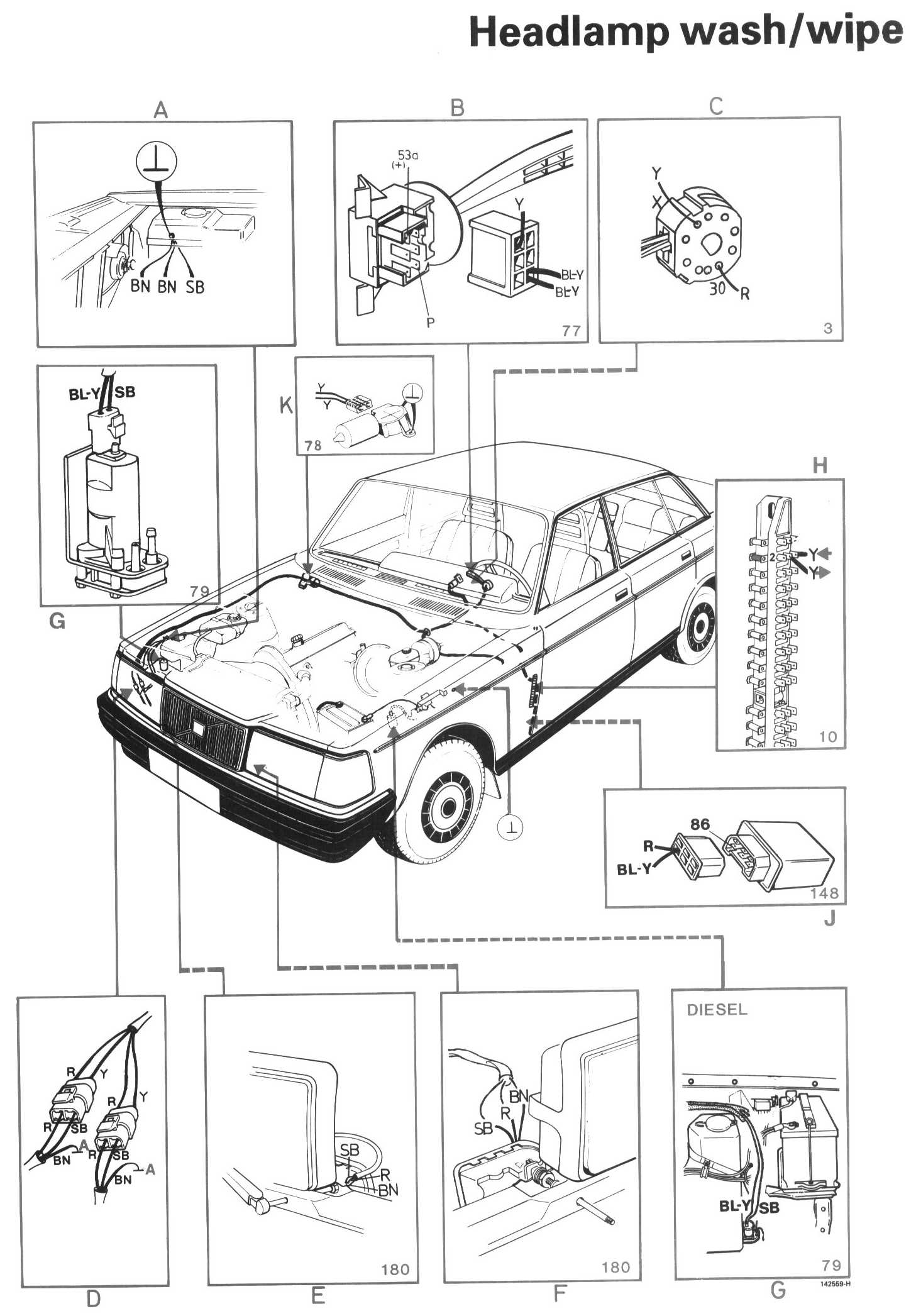

Component / Connector Views:

LEGEND
A Ground connection
B windscreen wash/wipe stalk
C Ignition switch
D Connectors
E Wiper motor (right)
F Wiper motor (left)
G Washer motor
H Fusebox
J Interval relay
K Windscreen wiper motor
