Tailgate Window Wash / Wipe (Interval Relay)

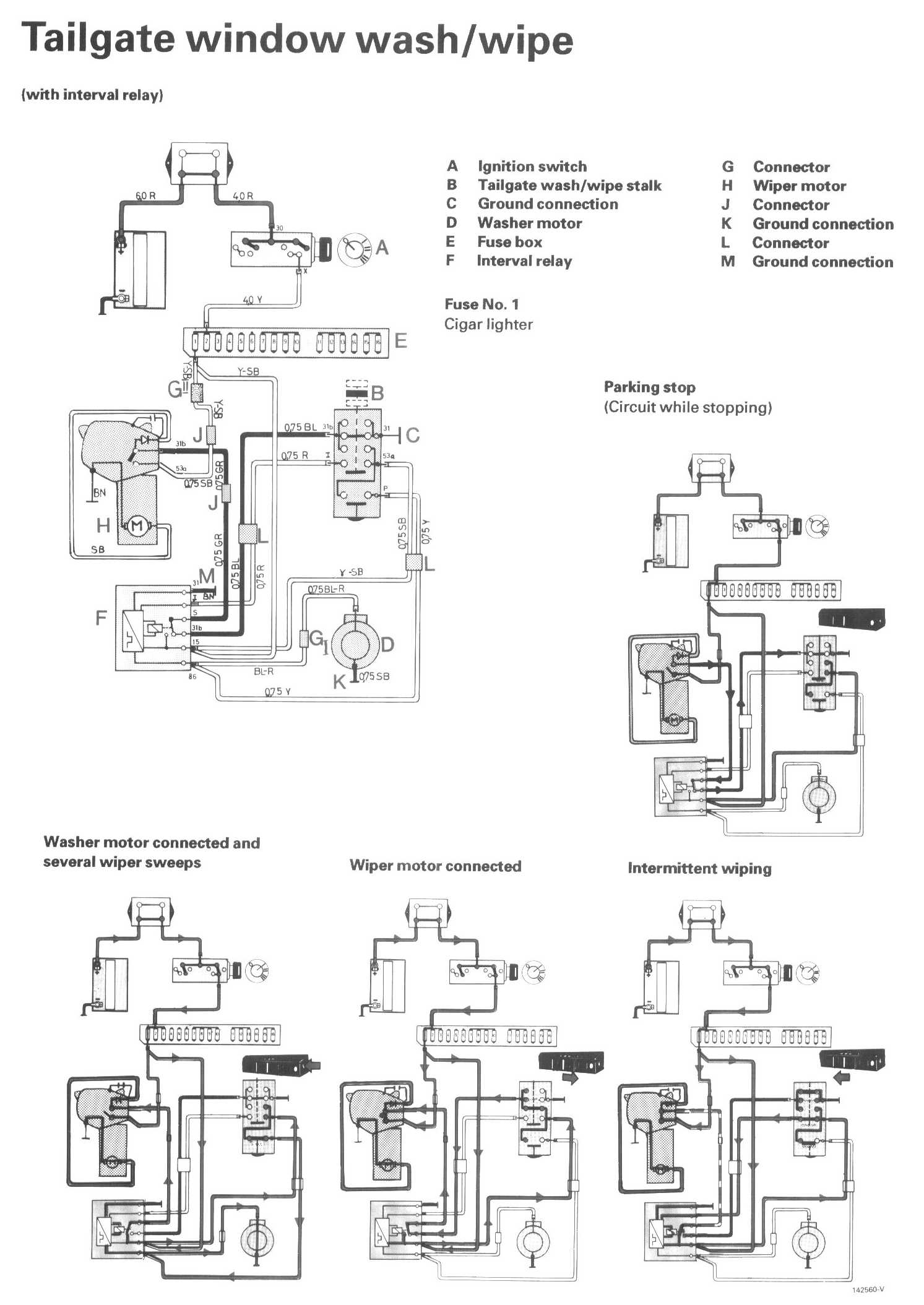

Wiring Diagrams:

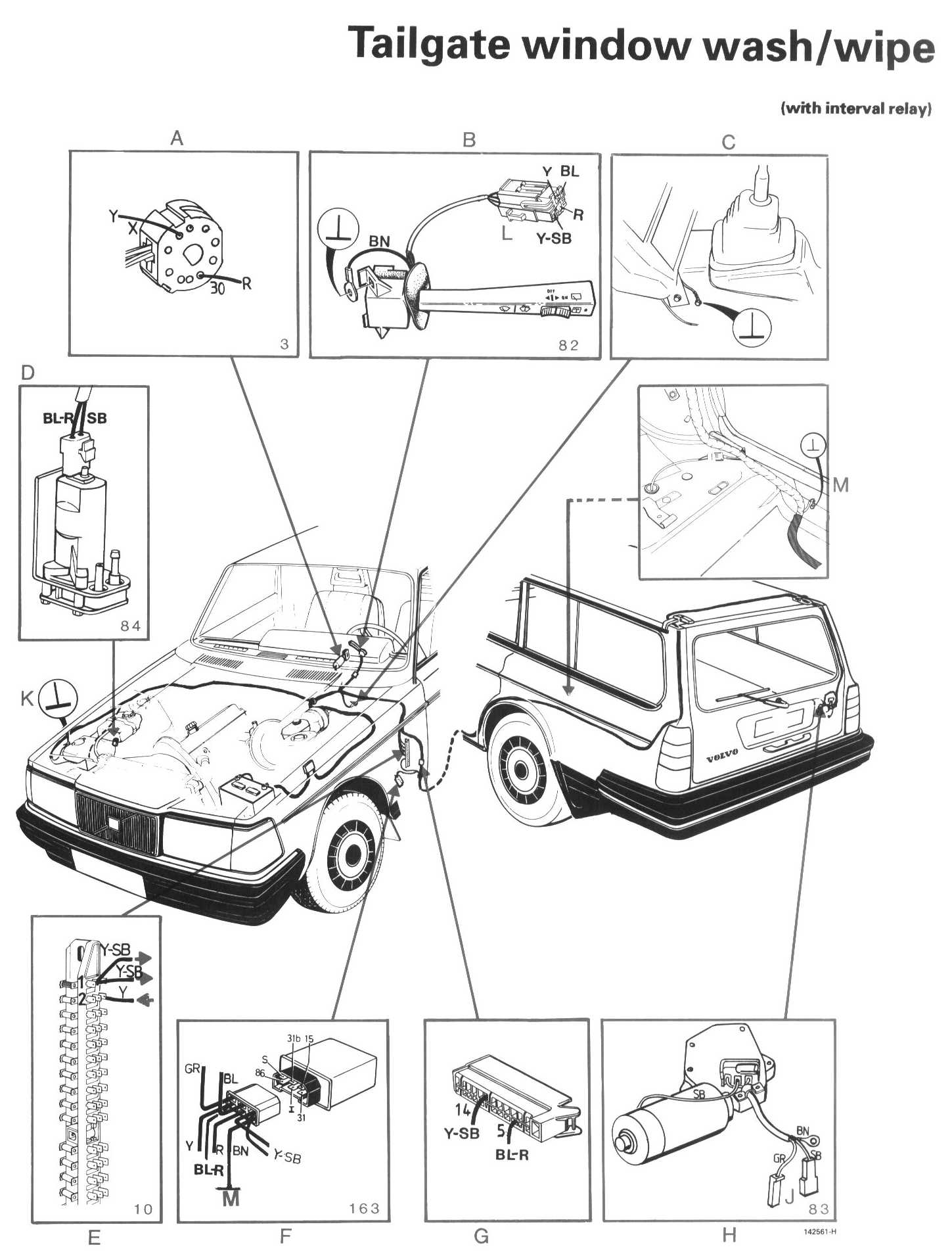

Component / Connector Views:

LEGEND
A Ignition switch
B Tailgate wash/wipe stalk
C Ground connection
D Washer motor
E Fusebox
F Interval relay
G Connector
H Wiper motor
J Connector
K Ground Connection
L Connector
M Ground Connection
