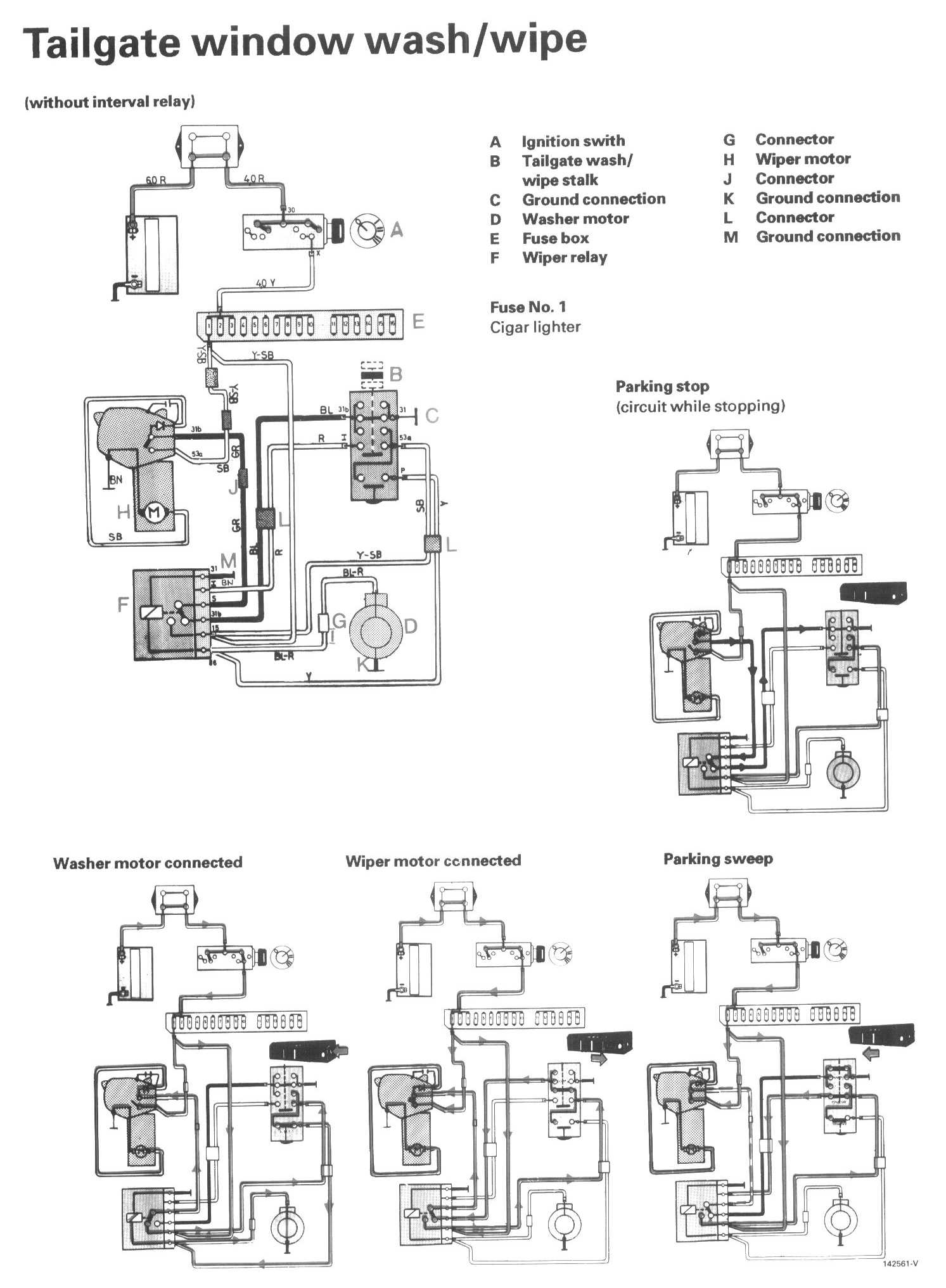

Tailgate Window Wash / Wipe (No Interval Relay)

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Ignition switch
B Tailgate wash / wipe stalk
C Ground connection
D Washer motor
E Fusebox
F Wiper relay
G Connector
H Wiper motor
J Connector
K Ground connection
L Connector
M Ground connection
