Electrical Diagrams

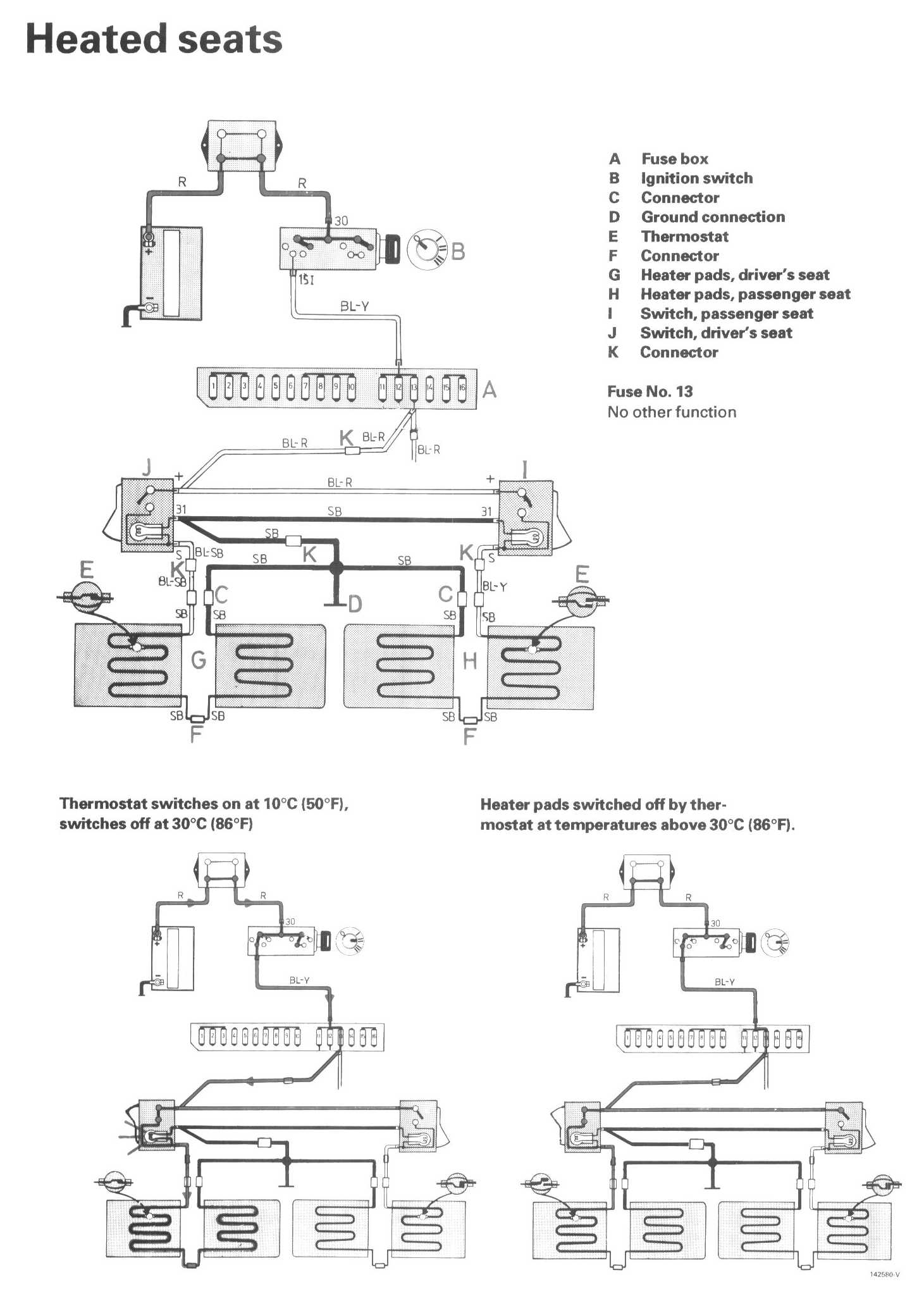

Wiring Diagrams:

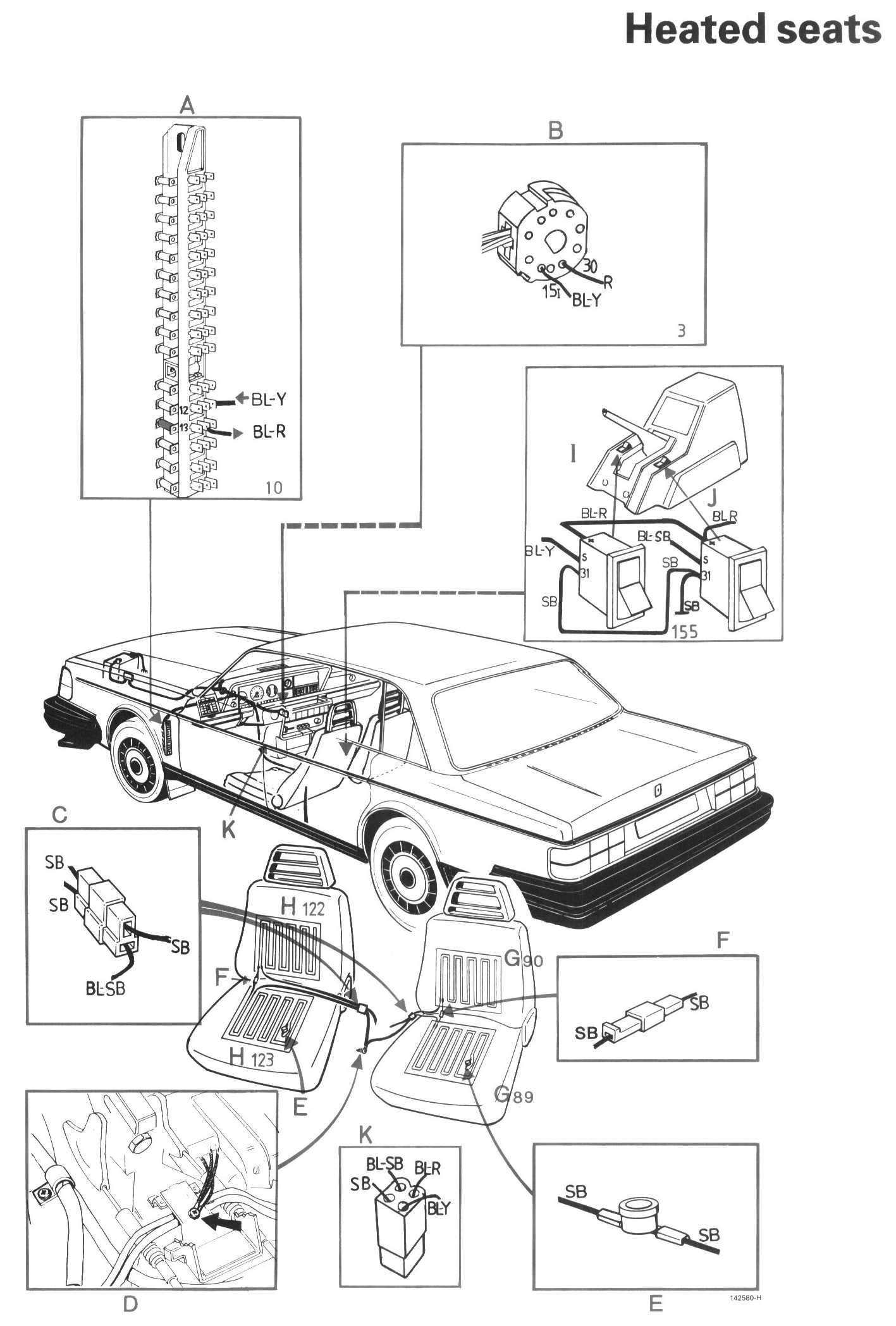

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Connector
D Ground Connection
E Thermostat
F Connector
G Heater pads, driver's seat
H Heater pads, passenger seat
I Switch, passenger seat
J Switch, drivers seat
K Connector
