Headlight Beam Length Control

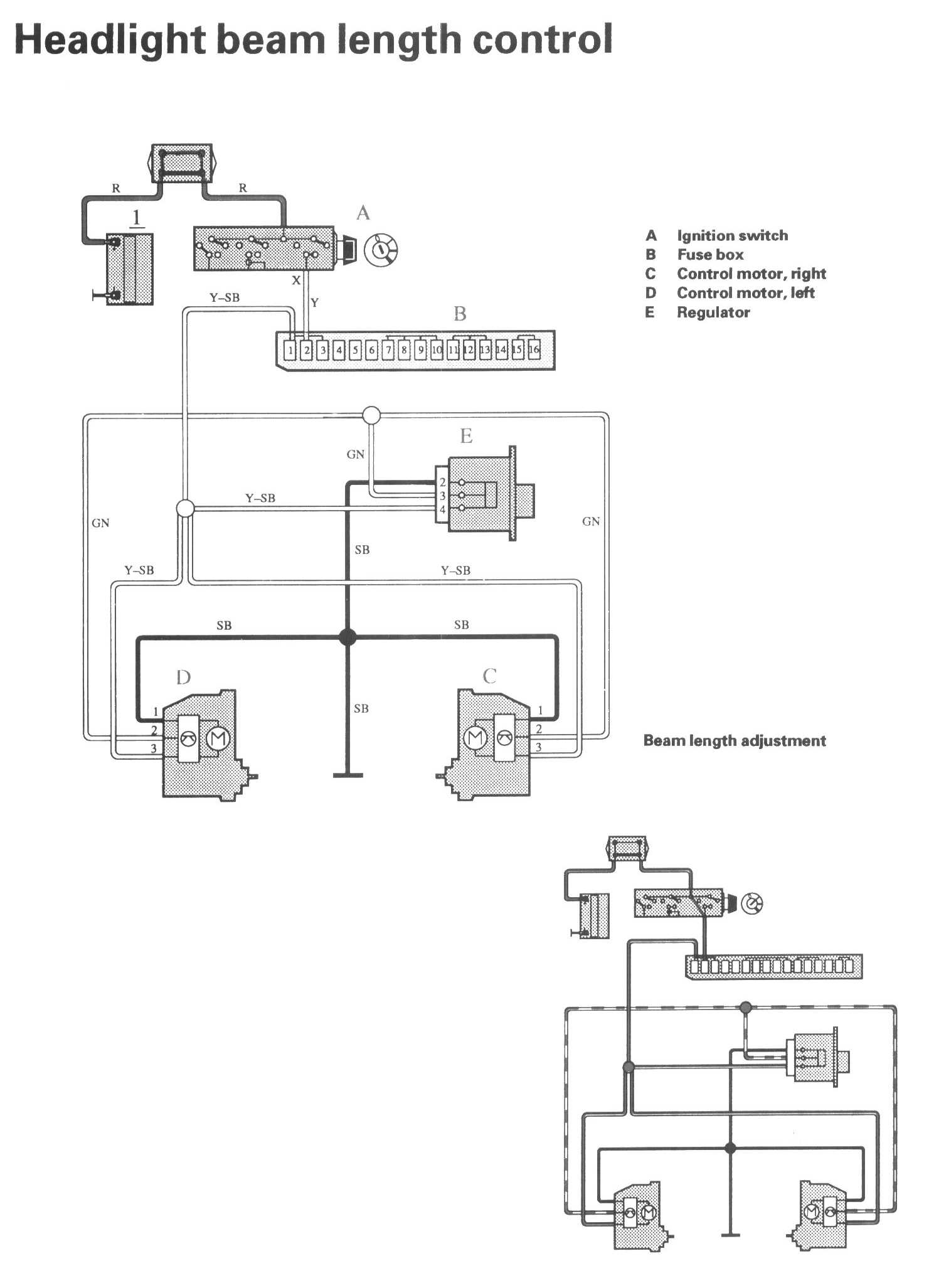

Wiring Diagrams:




Component / Connector Views:




LEGEND
A Ignition switch
B Fusebox
C Control motor, right
D Control motor, left
E Regulator
