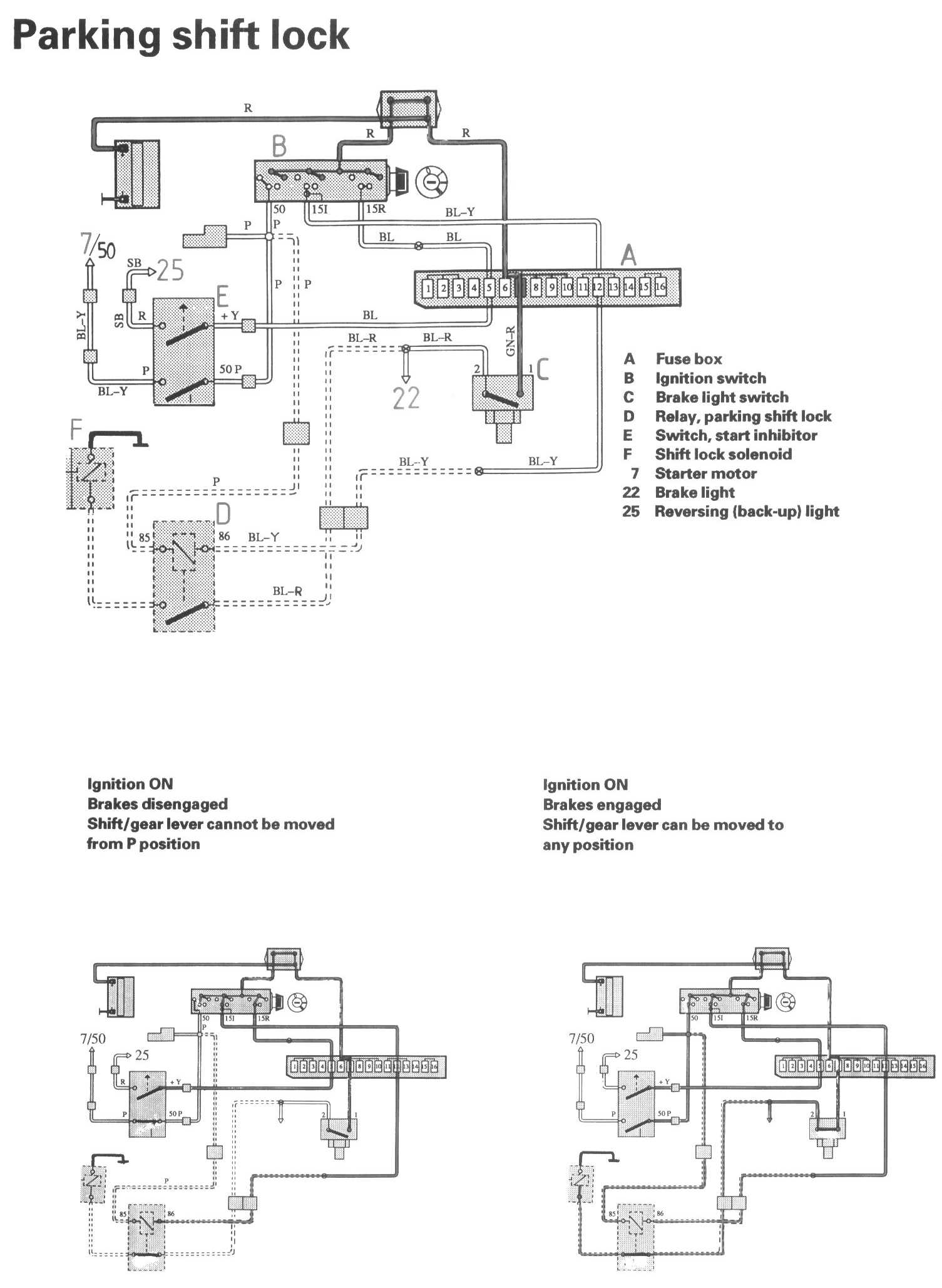

System Diagram

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Brake light switch
D Relay, parking shift lock
E Switch, start inhibitor
F Shift lock solenoid

7 Starter motor

22 Brake light
25 Reversing (back-up) light
