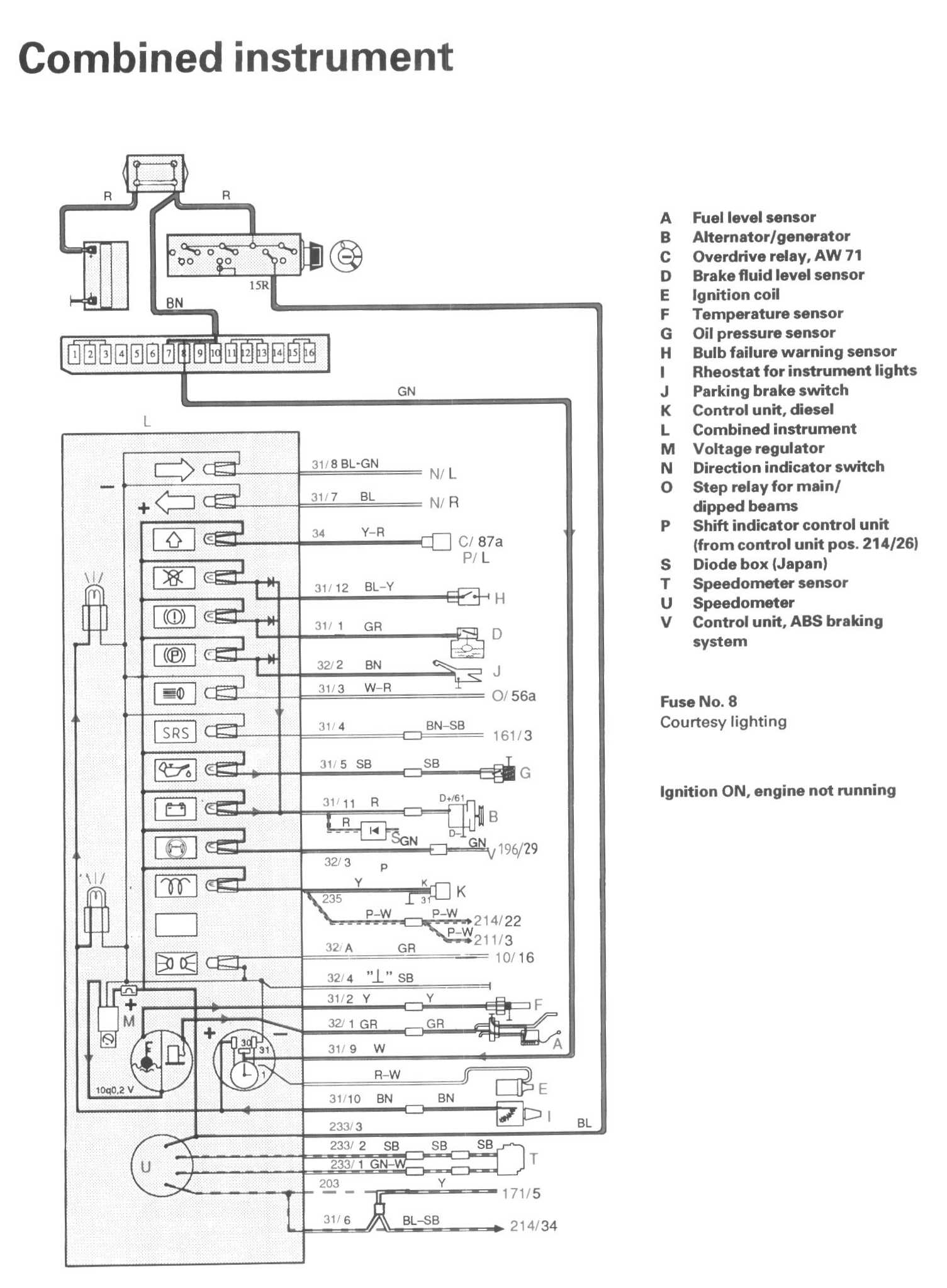

Combined Instrument

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Fuel level sensor
B Alternator / generator
C Overdrive relay, AW 71
D Brake fluid level sensor
E Ignition coil
F Temperature sensor
G Oil pressure sensor
H Bulb failure warning sensor
I Rheostat for instrument lights
J Parking brake switch
K Control unit. diesel
L Combined instrument
M Voltage regulator
N Direction indicator switch
O Step relay for main / dipped beams
P Shift indicator control unit (from control unit pos. 214/26)
S Diode box (Japan)
T Speedometer sensor
U Speedometer
V Control unit, ABS braking system
