Electrical Diagrams

WITH TIMER

Heated Rear Window Wiring (with Timer):

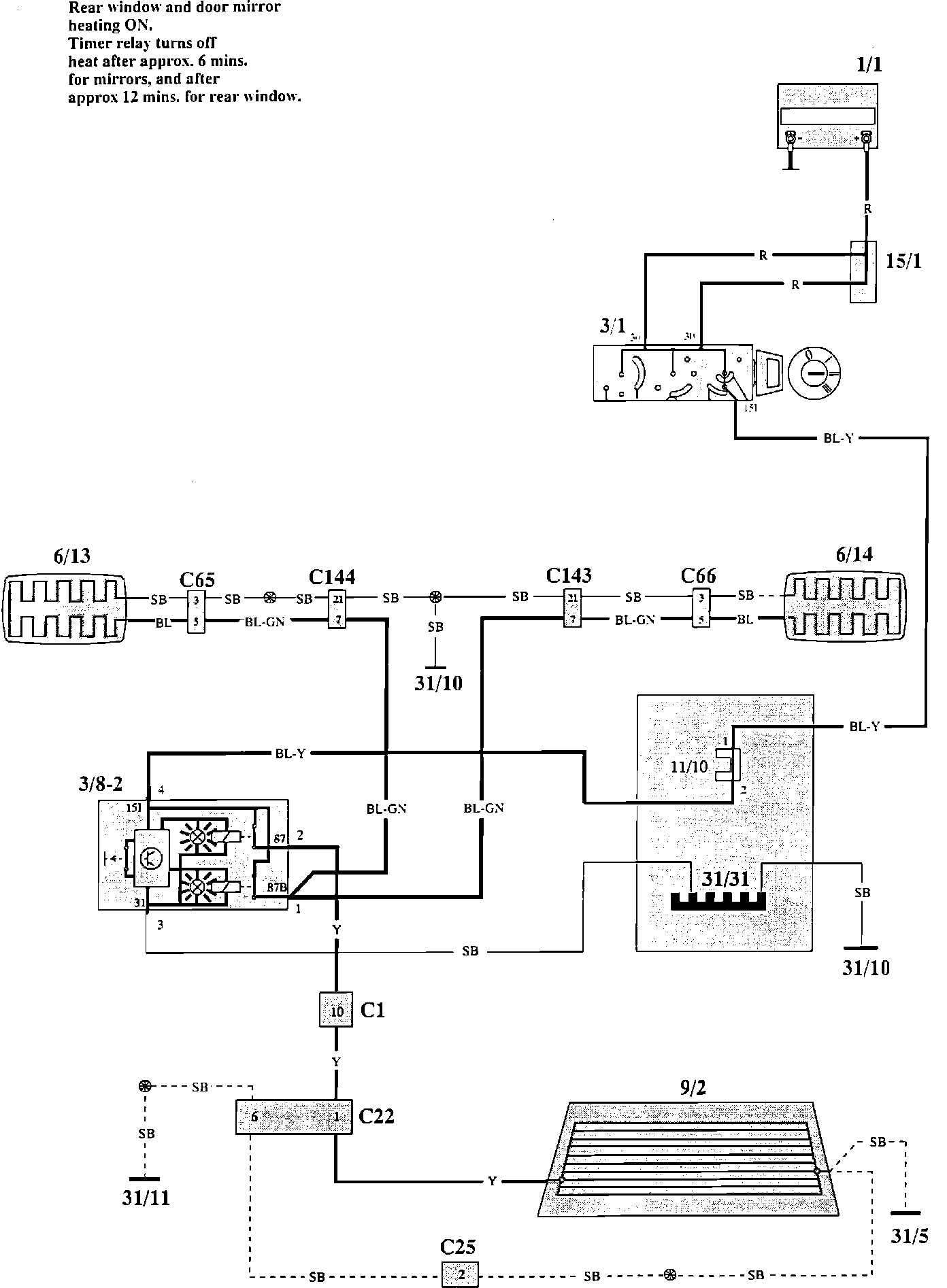

Wiring Diagram

Heated Rear Window Components (with Timer):

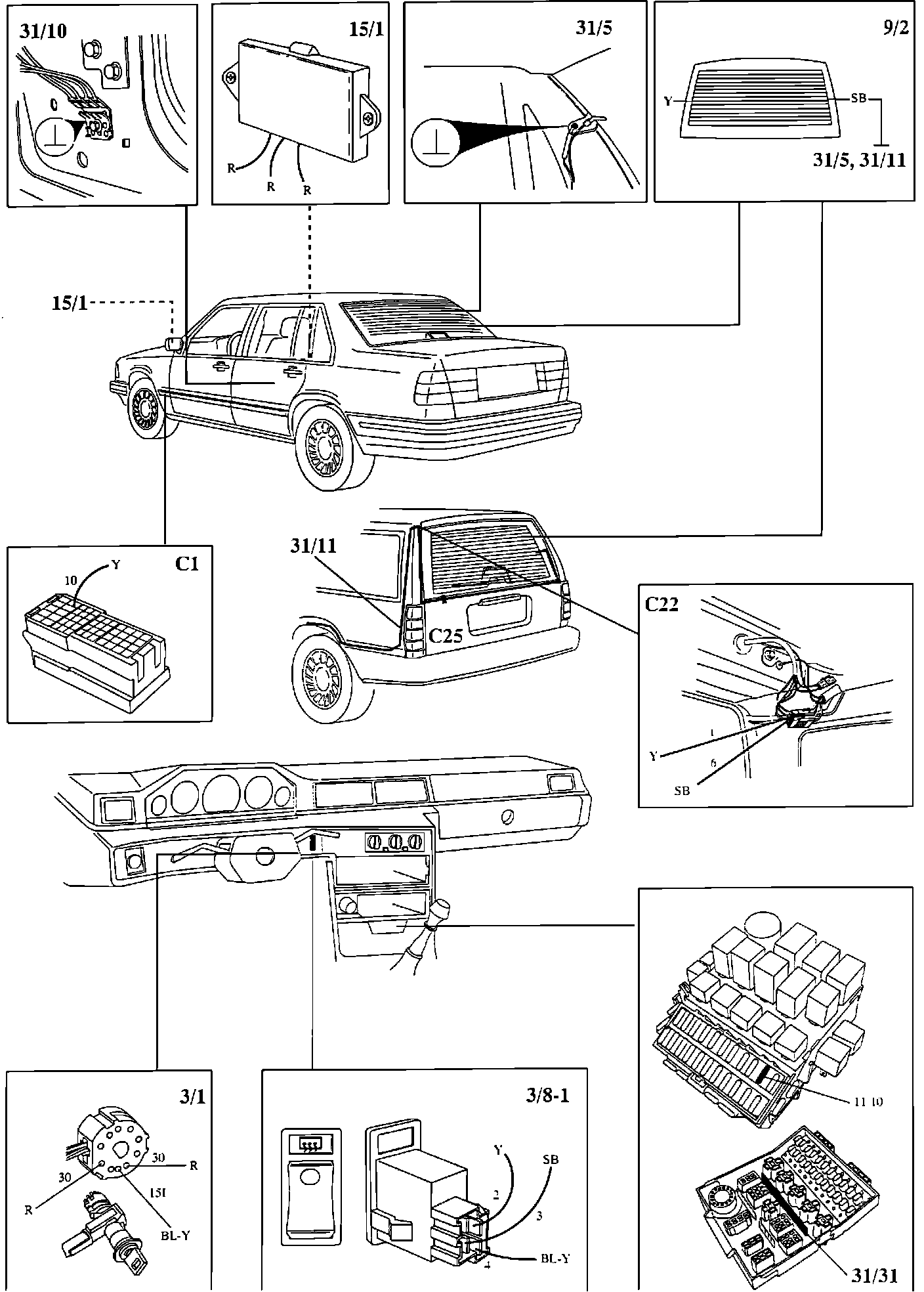

Component Locations

WITHOUT TIMER

Heated Rear Window Wiring:

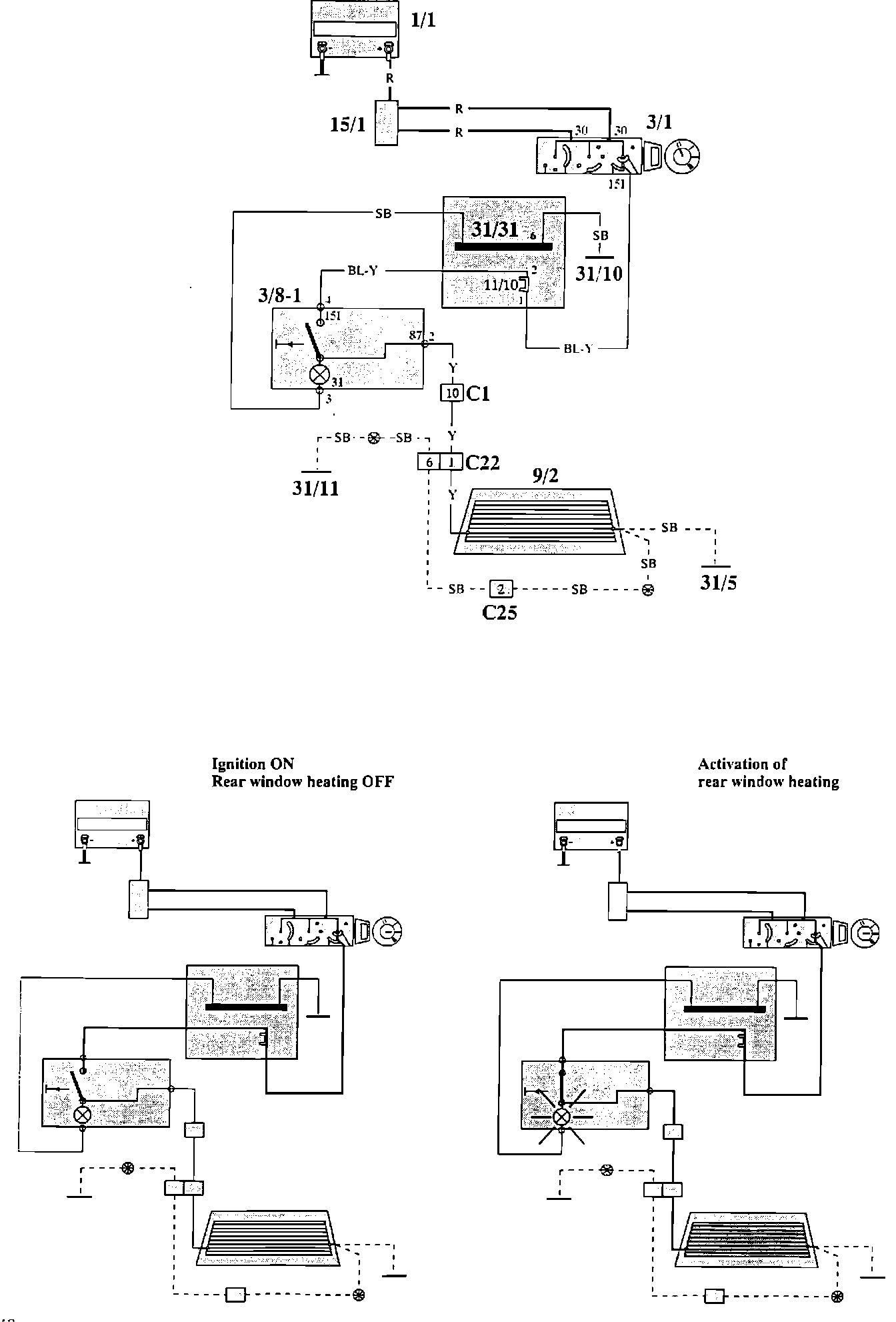

Wiring Diagram

Heated Rear Window Components:

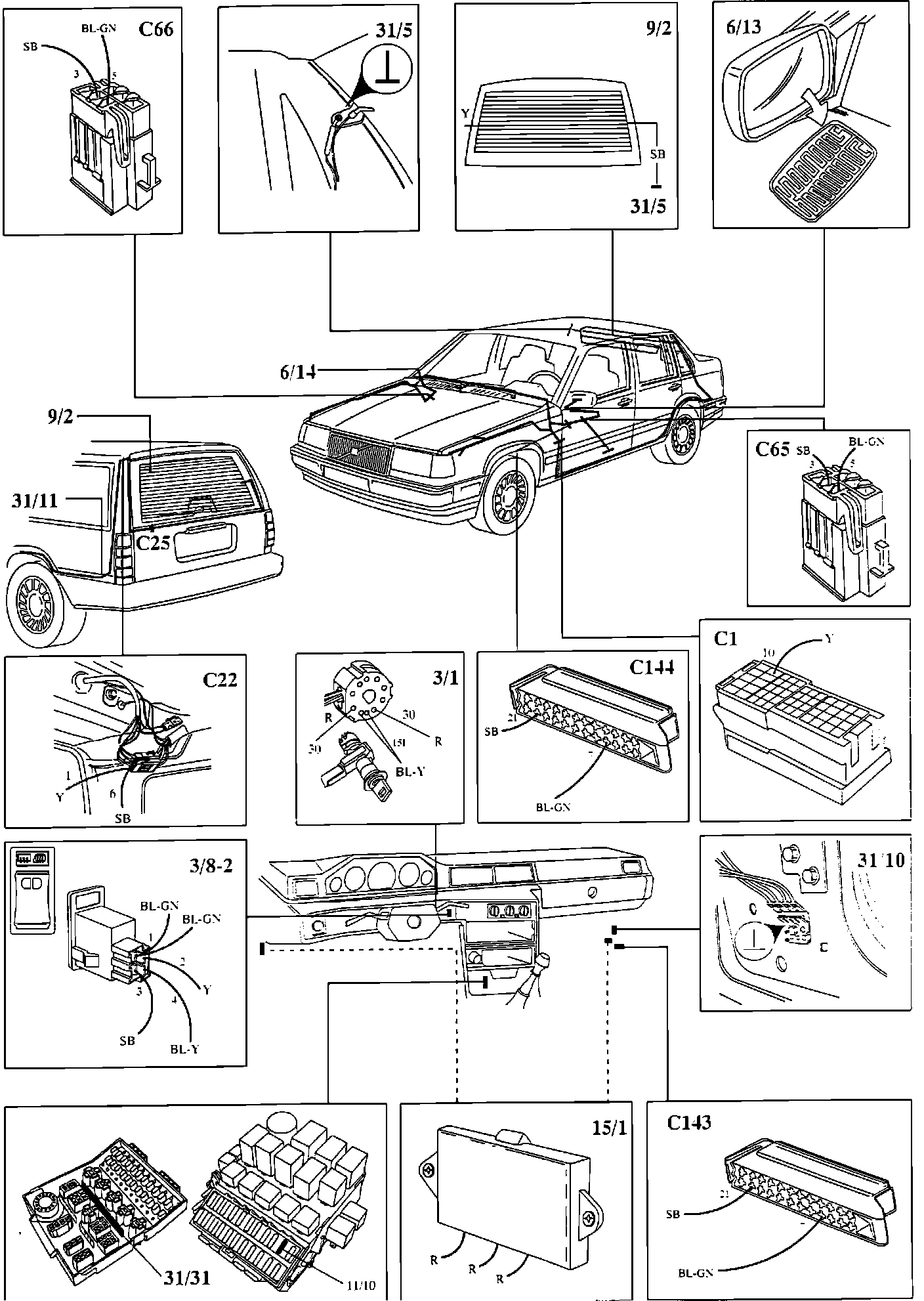

Component Locations
