System Diagram


STANDARD

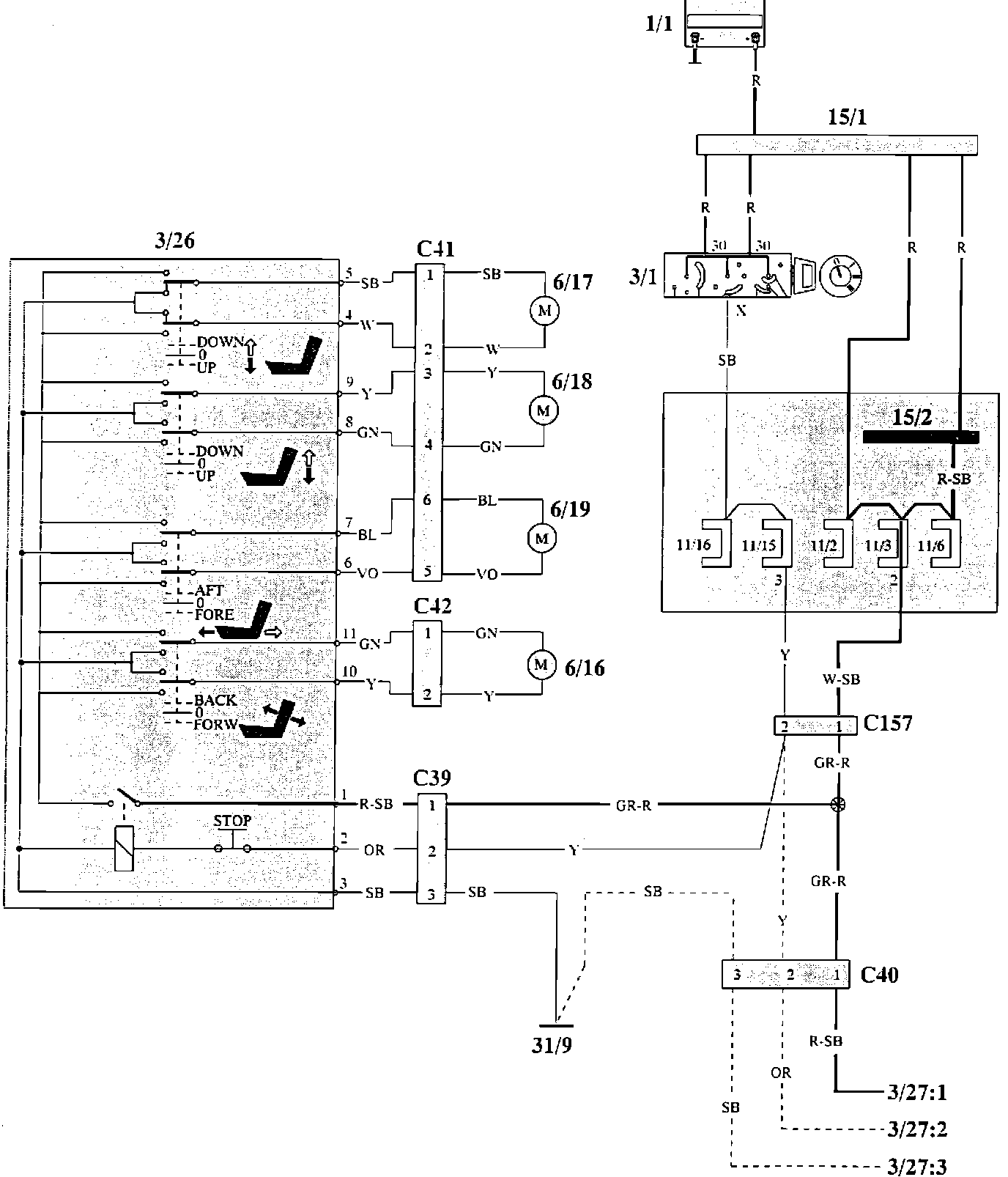

Power Seat Wiring:





Wiring Diagram

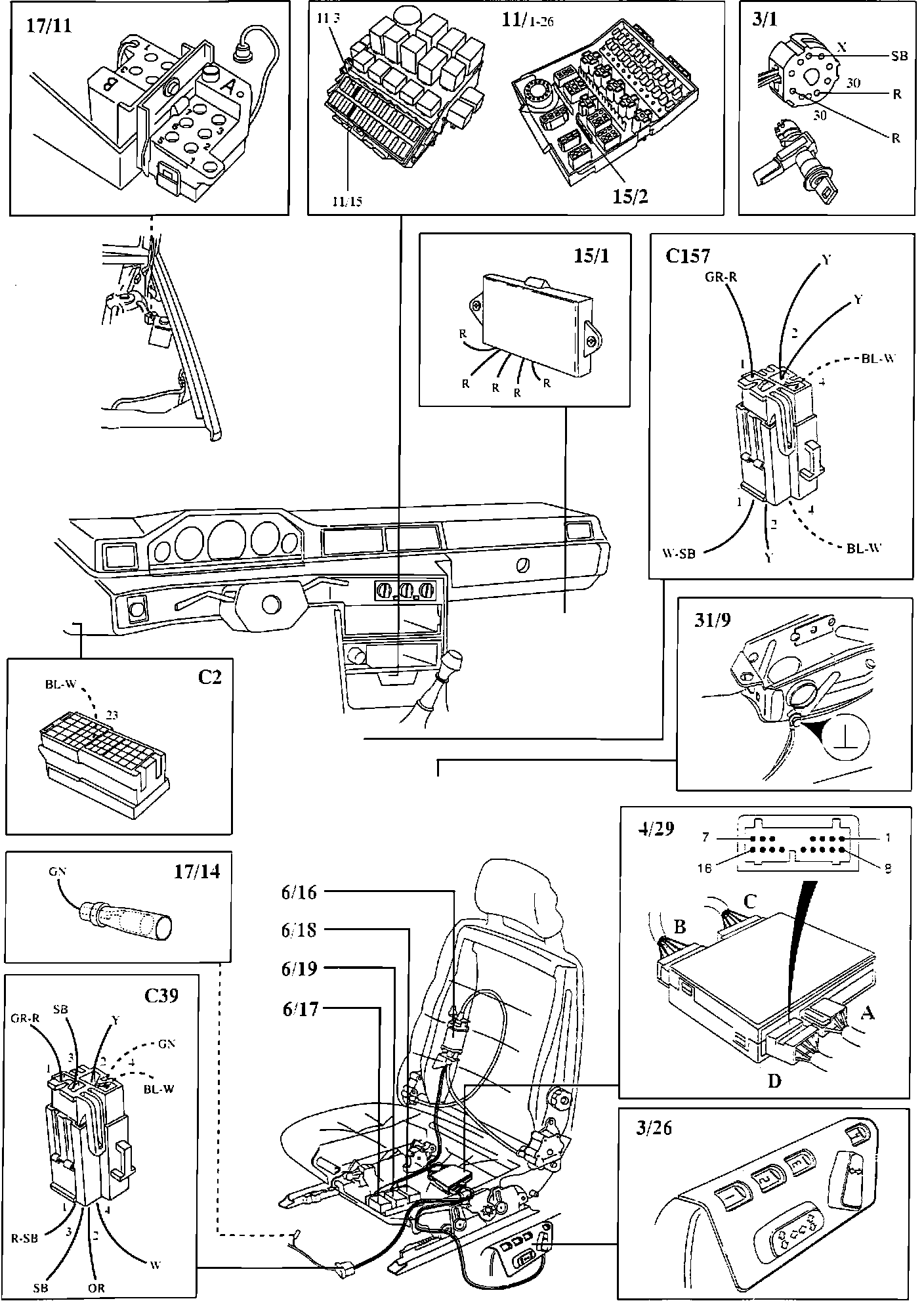

Power Seat Components:





Component Locations

WITH MEMORY

Power Seat Wiring (with Memory):





Wiring Diagram

Power Seat Components (with Memory):
