Tailgate Washer & Wiper

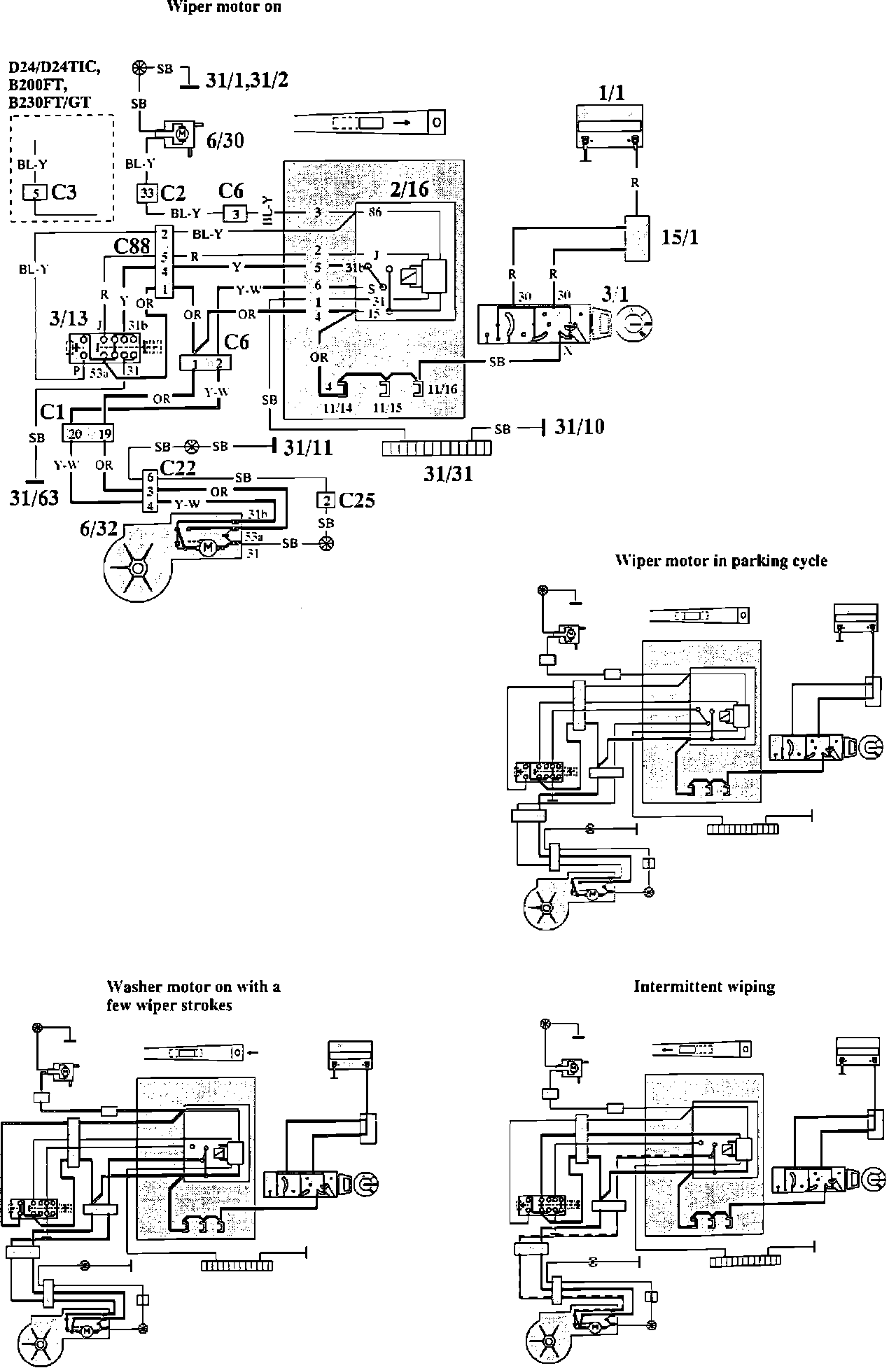

Tailgate Wiper/washer Wiring:





Wiring Diagram

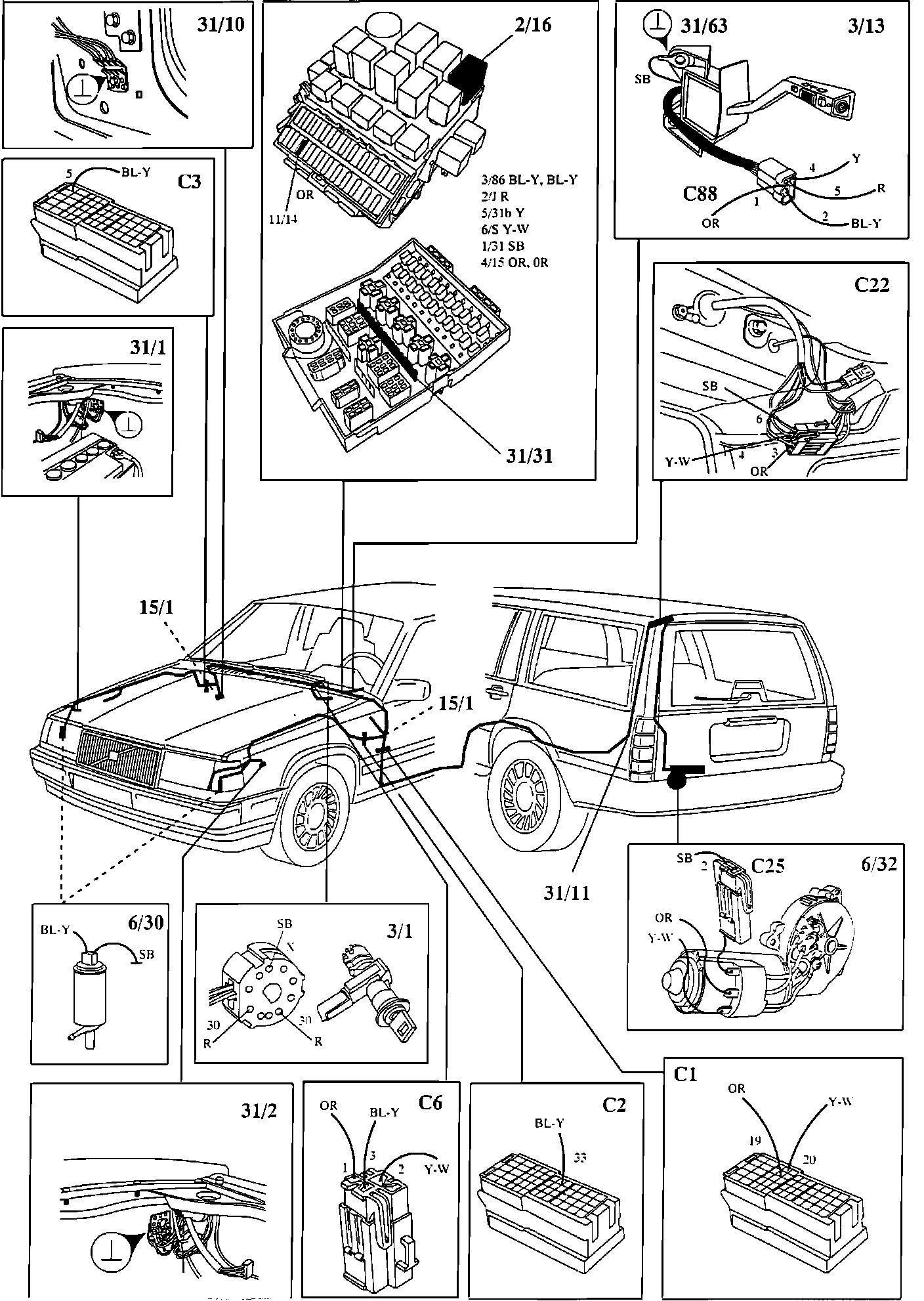

Windshield Washer/wiper Components:





Component Locations
