Sunroof / Moonroof: Locations

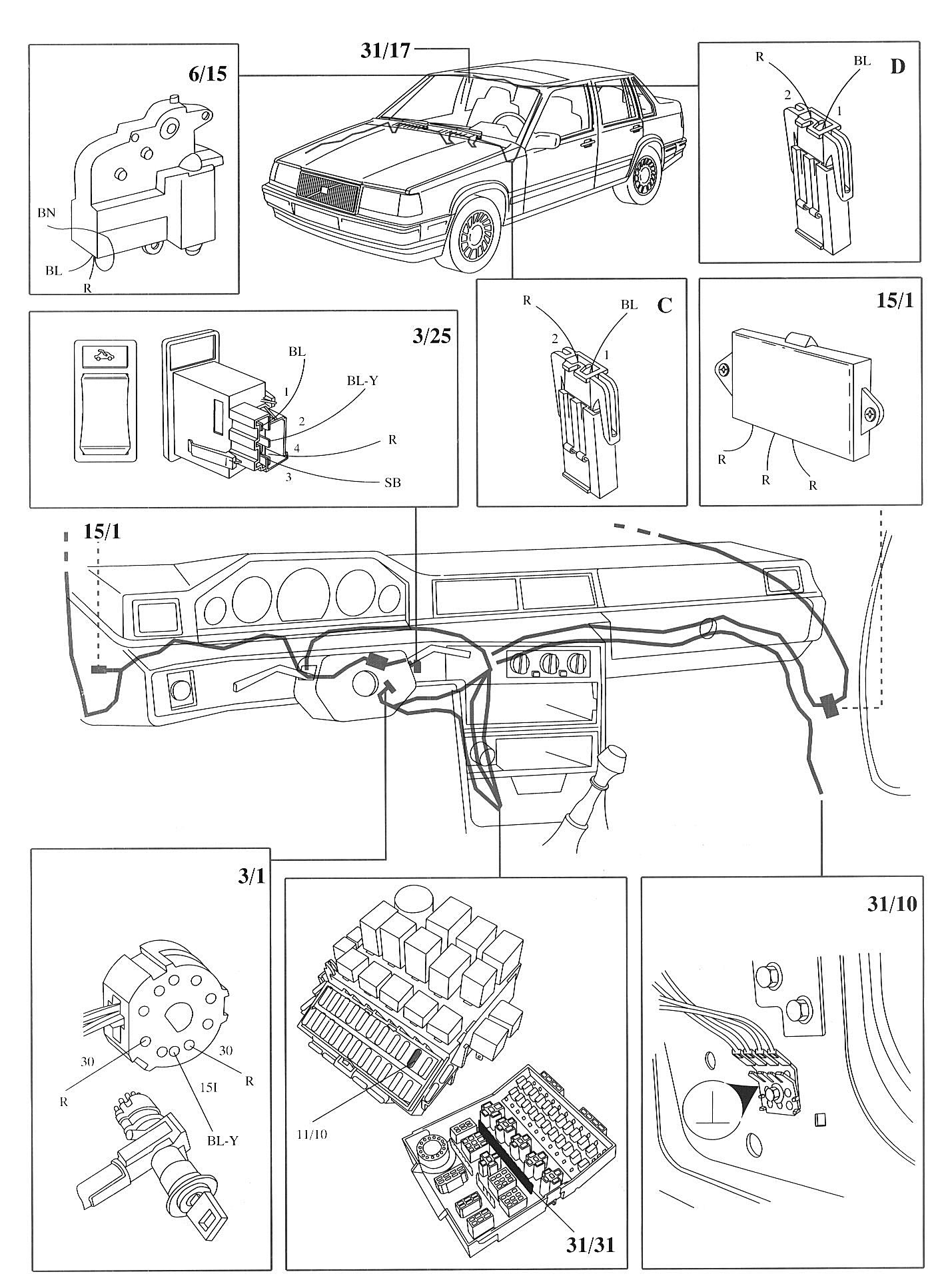

Component / Connector Locations:

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/25 Switch, power sunroof
6/15 Motor, power sunroof

11/1-26 Fuses
15/1 Positive terminal
31/10 Ground connection, right A-post
31/17 Ground connection at power sunroof motor
31/31 Ground connection rail in central el. unit
