System Diagram

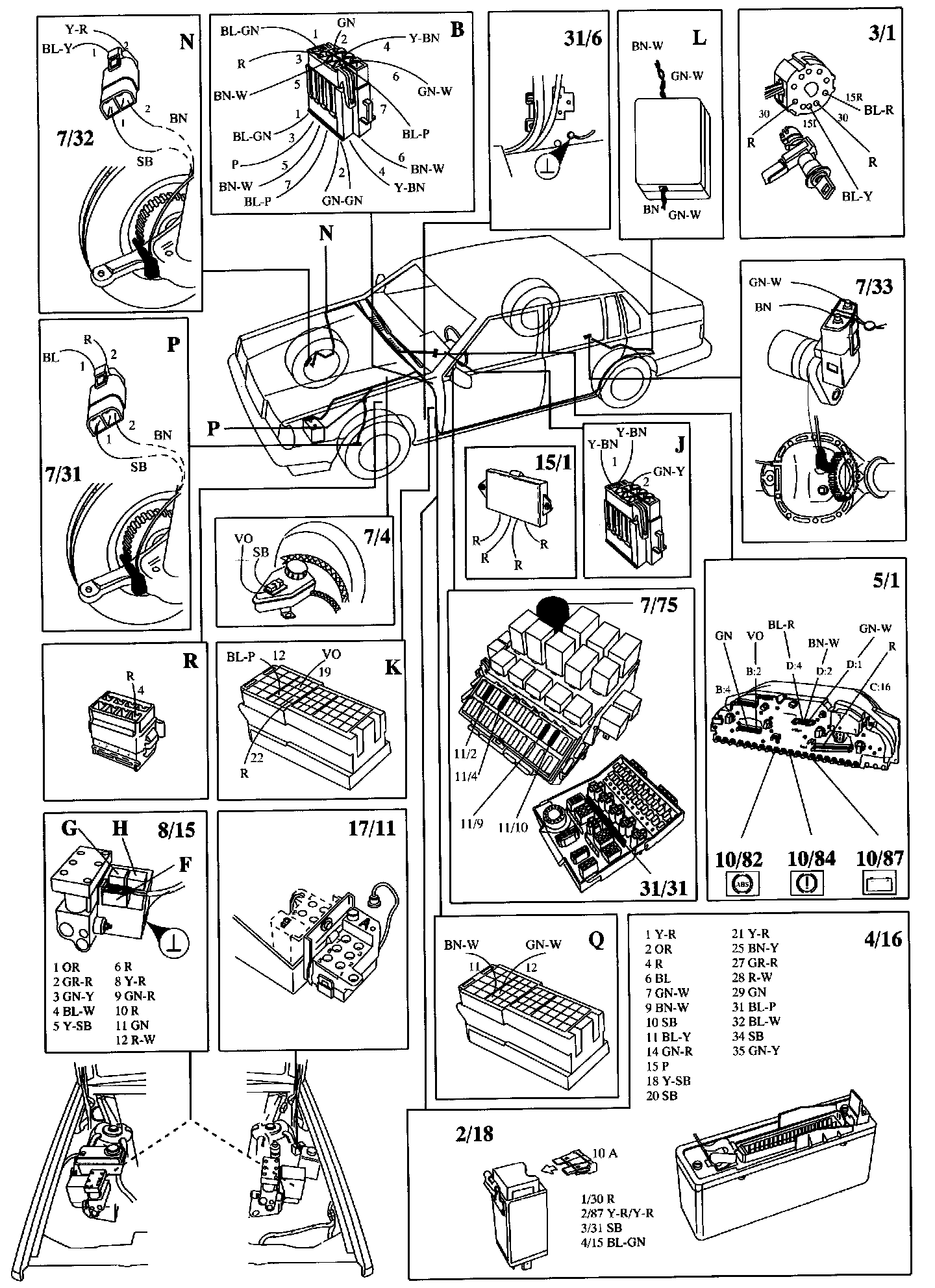

ABS System Wiring Diagrams:

ABS System Components:

LEGEND
1/1 Battery.
2/18 Surge protection, ABS.
3/1 Ignition lock.
3/9 Brake light switch.
4/16 Control unit, ABS.
5/1 Combined instrument.
6/26 Alternator.
7/4 Brake fluid level sensor.
7/31 Sensor, ABS left front.
7/32 Senosr, ABS right front.
7/33 Sensor, speedomemter and ABS.
7/75 Bulb failure sensor.
8/15 Hydraulic unit, ABS.
10/82 Indicator lamp ABS.
10/84 Indicator lamp brake warning.
10/87 Indicator lamp charging.
11/1-26 Fuses.
15/1 Positive terminal.
17/11 Diagnostic socket.
31/1 Ground connection right front fender.
31/2 Ground connection left front fender.
31/6 Ground connection left A-post.

B Connector left A-post, 8-pin.
F Connector for hydraulic unit.
G Relay for solenoid valves.
H Relay for pump motor.
J Connector at steering column, 8-pin.
K Connector left A-post.
L Connector in luggage compartment.
N Connector right suspension tower.
P Connector left suspension tower.
Q Connector left A-post.
R Connector left suspension tower.
