System Diagram

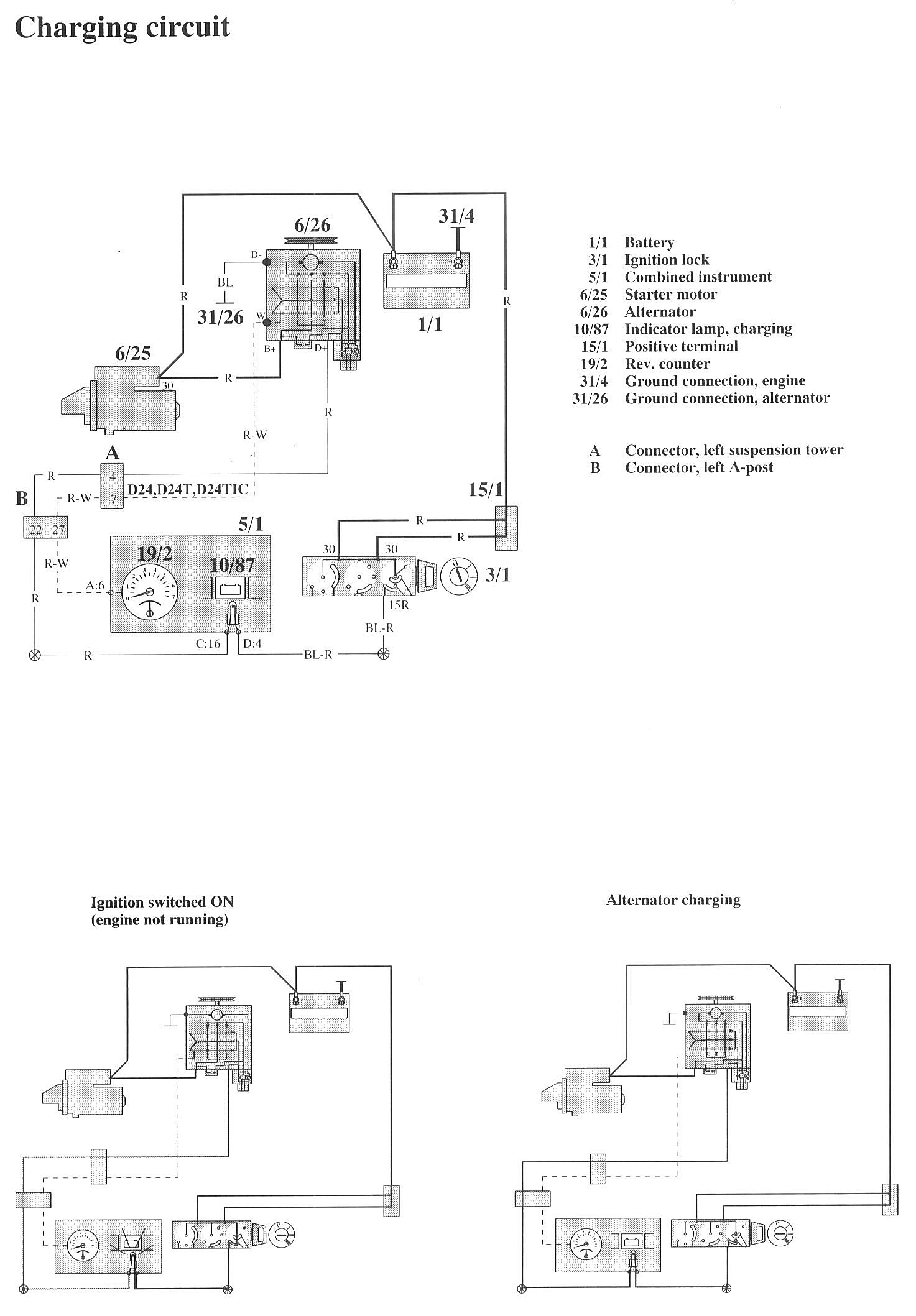

Wiring Diagrams:

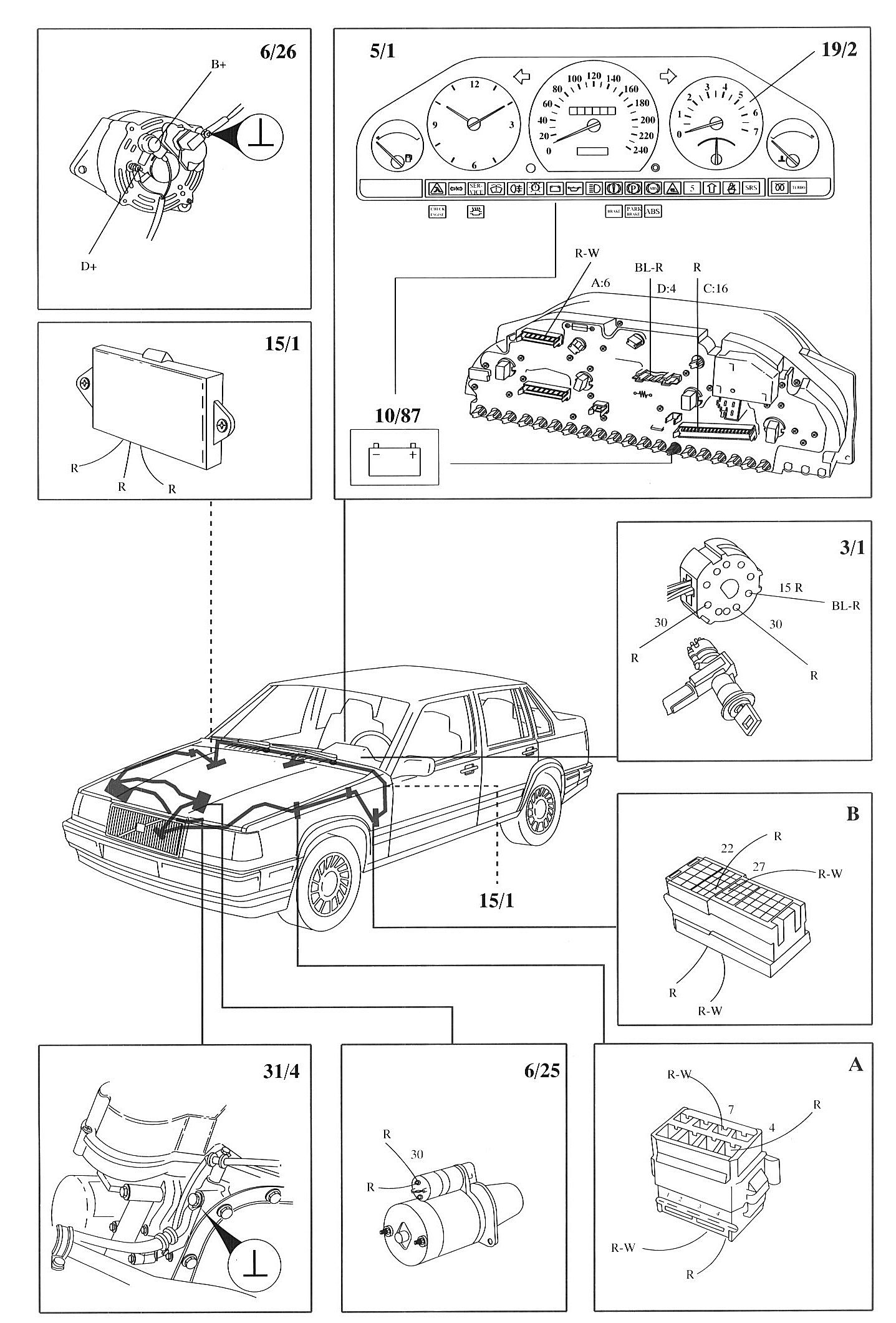

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
5/1 Combined instrument
6/25 Starter motor
6/26 Alternator

10/87 Indicator lamp, charging
15/1 Positive terminal
19/2 Rev. counter
31/4 Ground connection, engine
31/26 Ground connection, alternator
