Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1992
>>
940 L4-2320cc 2.3L DOHC B234F (Can)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor Clutch Relay
Compressor Clutch Relay

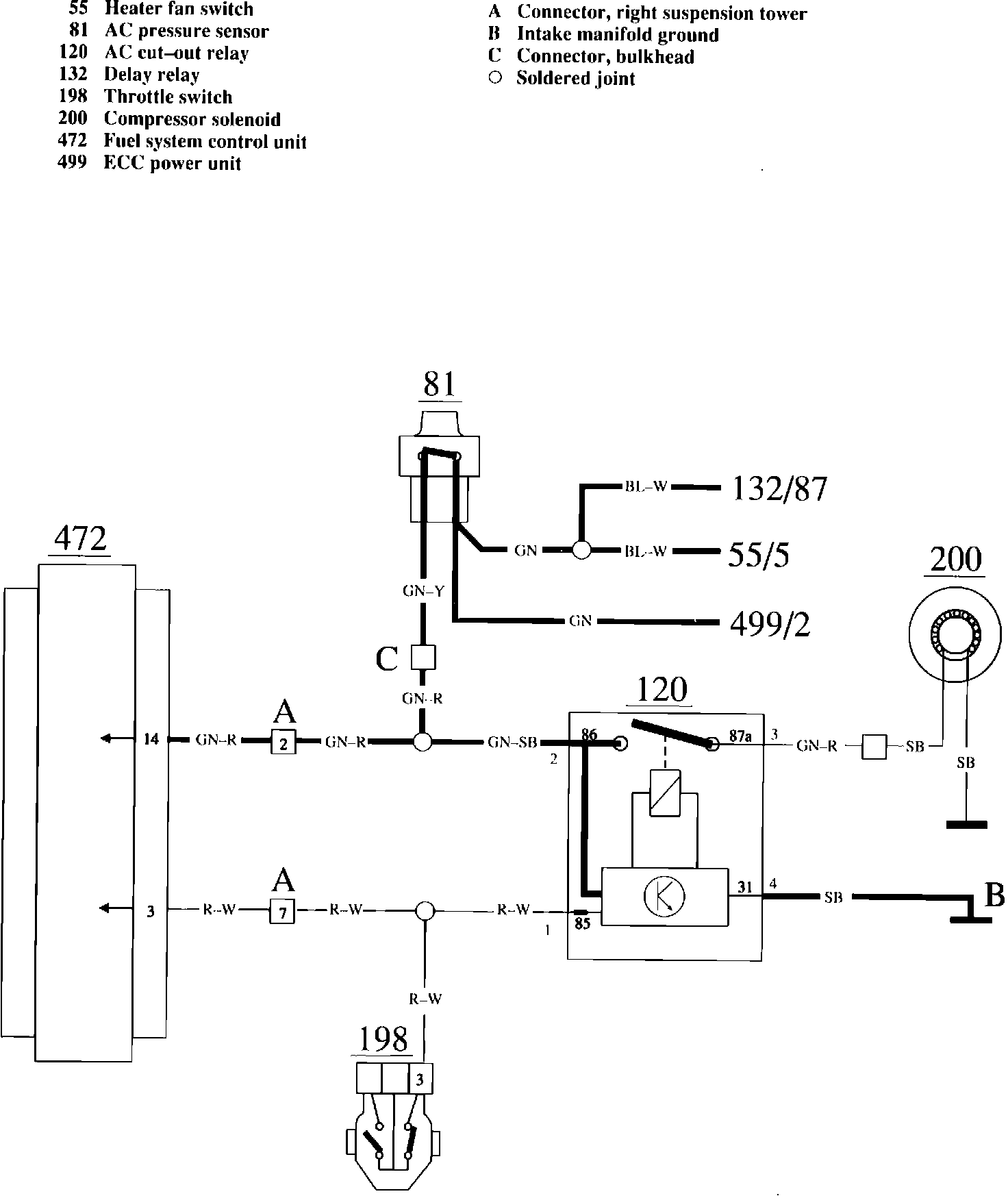

Air Conditioning Full Load Cut Off System:
