Backup Lamp

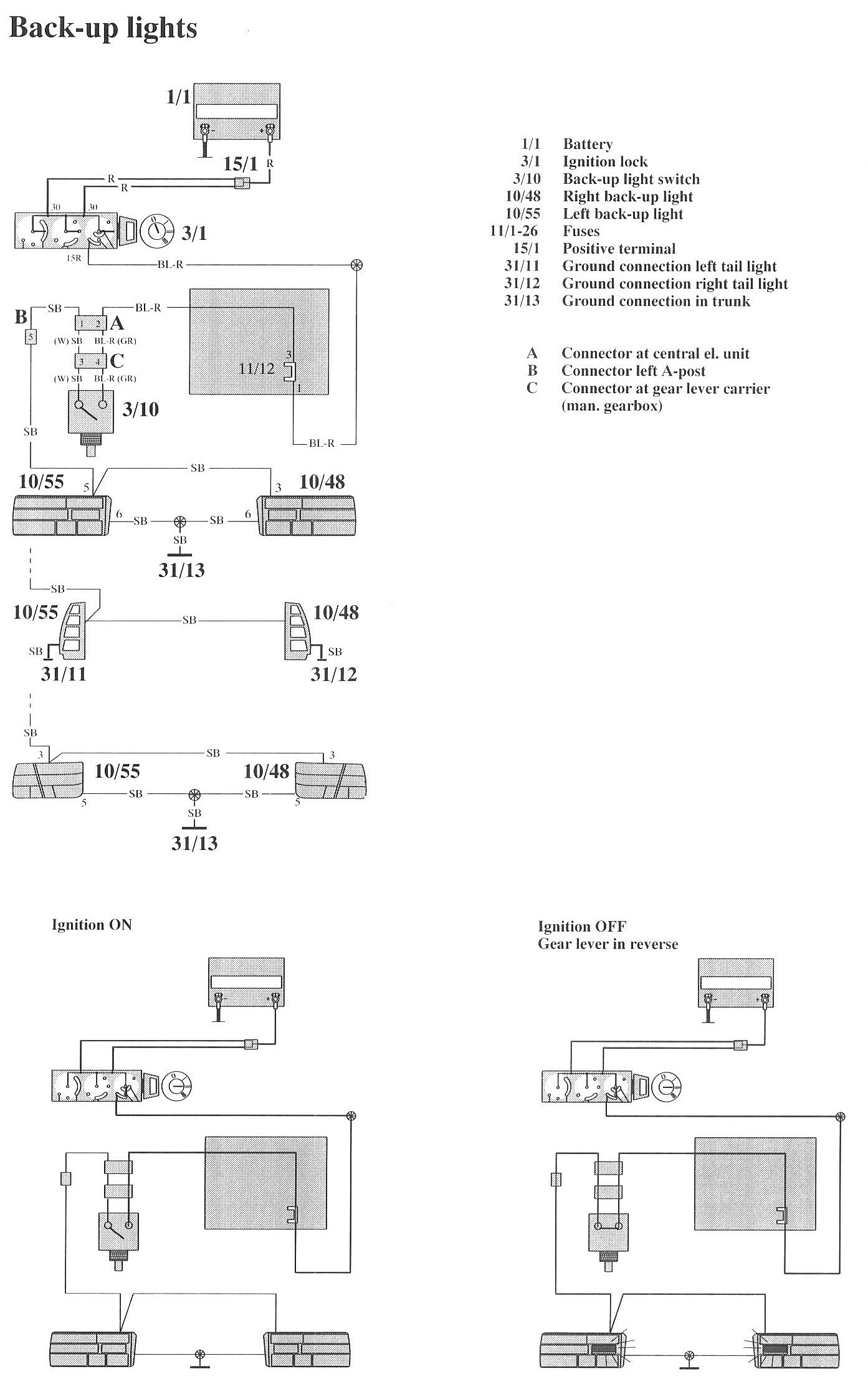

Wiring Diagrams:

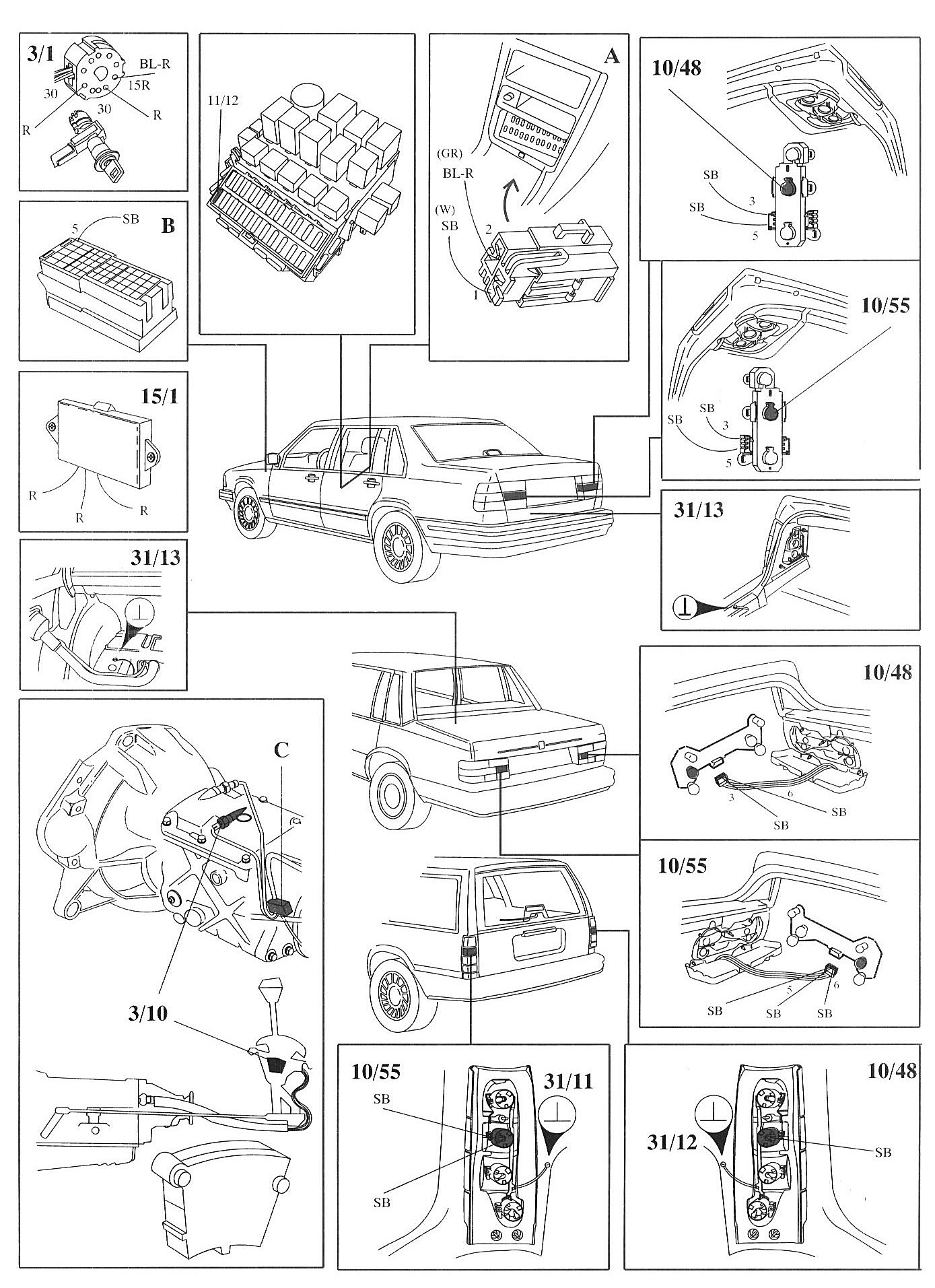

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
3/10 Back-up light switch

10/48 Right back-up light
10/55 Left back-up light
11/1-26 Fuses
15/1 Positive terminal
31/11 Ground connection left tail light
31/12 Ground connection right tail light
31/13 Ground connection in trunk
