Vanity Lamp

Wiring Diagrams:

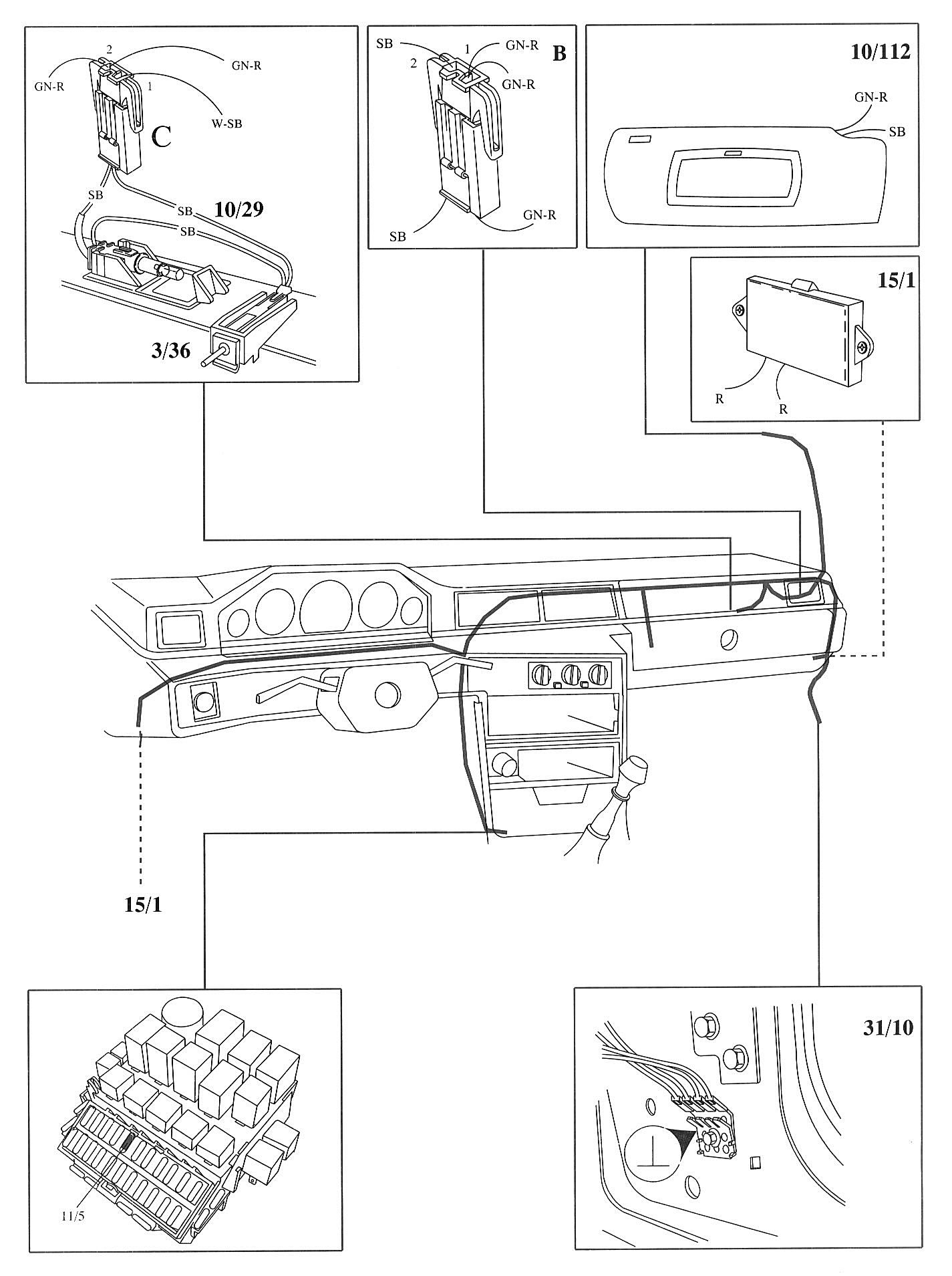

Component / Connector Locations:

LEGEND
1/1 Battery
5/1 Combined instrument
3/36 Switch, glove compartment

10/29 Glove compartment light
10/112 Vanity mirror light
11/1-26 Fuses
15/1 Positive terminal
31/10 Ground connection, right A-post
