System Diagram

Wiring Diagrams:

Component / Connector Locations:

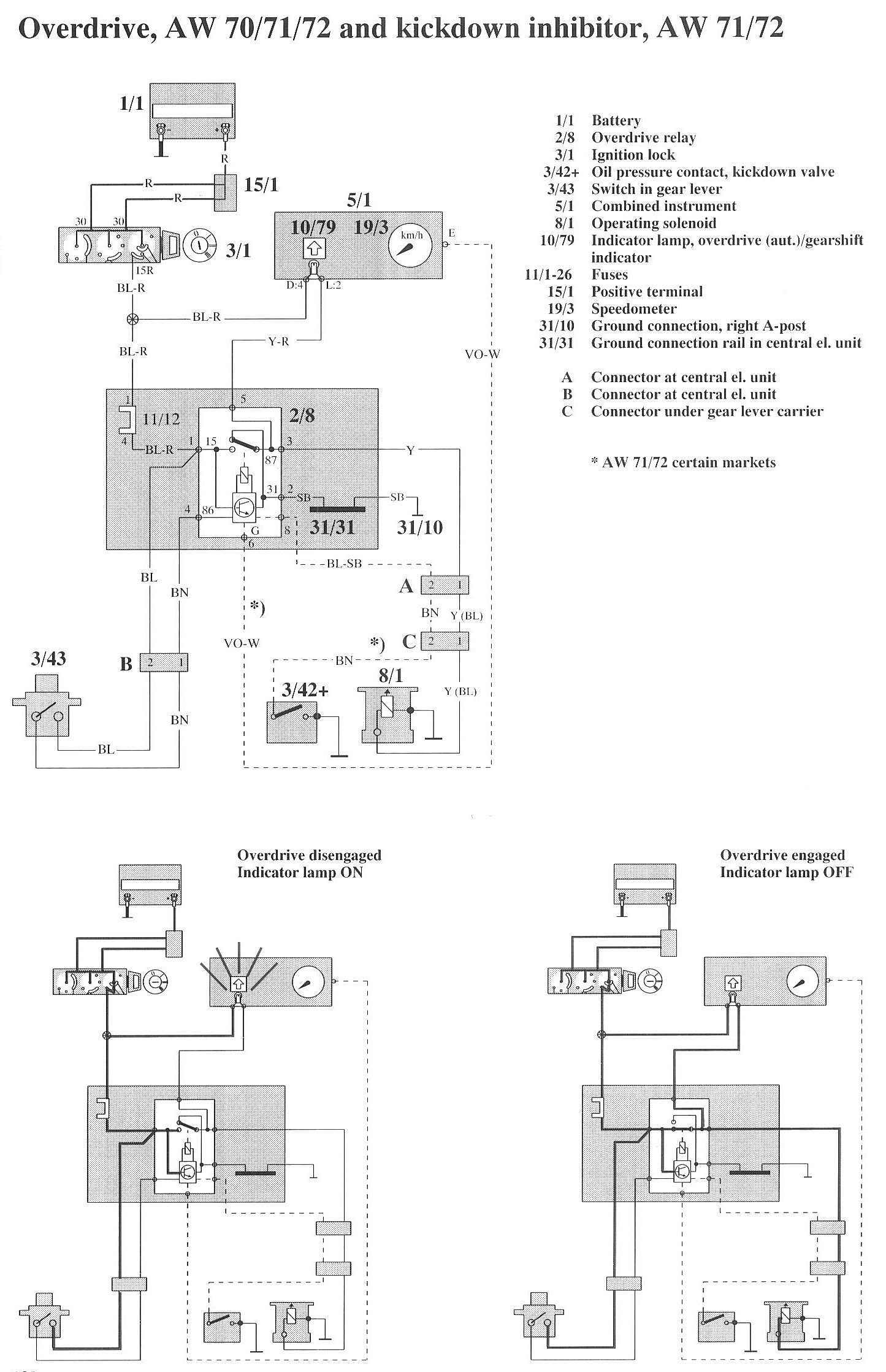

LEGEND
1/1 Battery
2/8 Overdrive relay
3/1 Ignition lock
3/42+ Oil pressure contact, kickdown valve
3/43 Switch in gear lever
5/1 Combined instrument
8/1 Operating solenoid

10/79 Indicator lamp, overdrive (aut.)/gearshift indicator
11/1-26 Fuses
15/1 Positive terminal
19/3 Speedometer
31/10 Ground connection, right A-post
31/31 Ground connection rail in central el. unit
