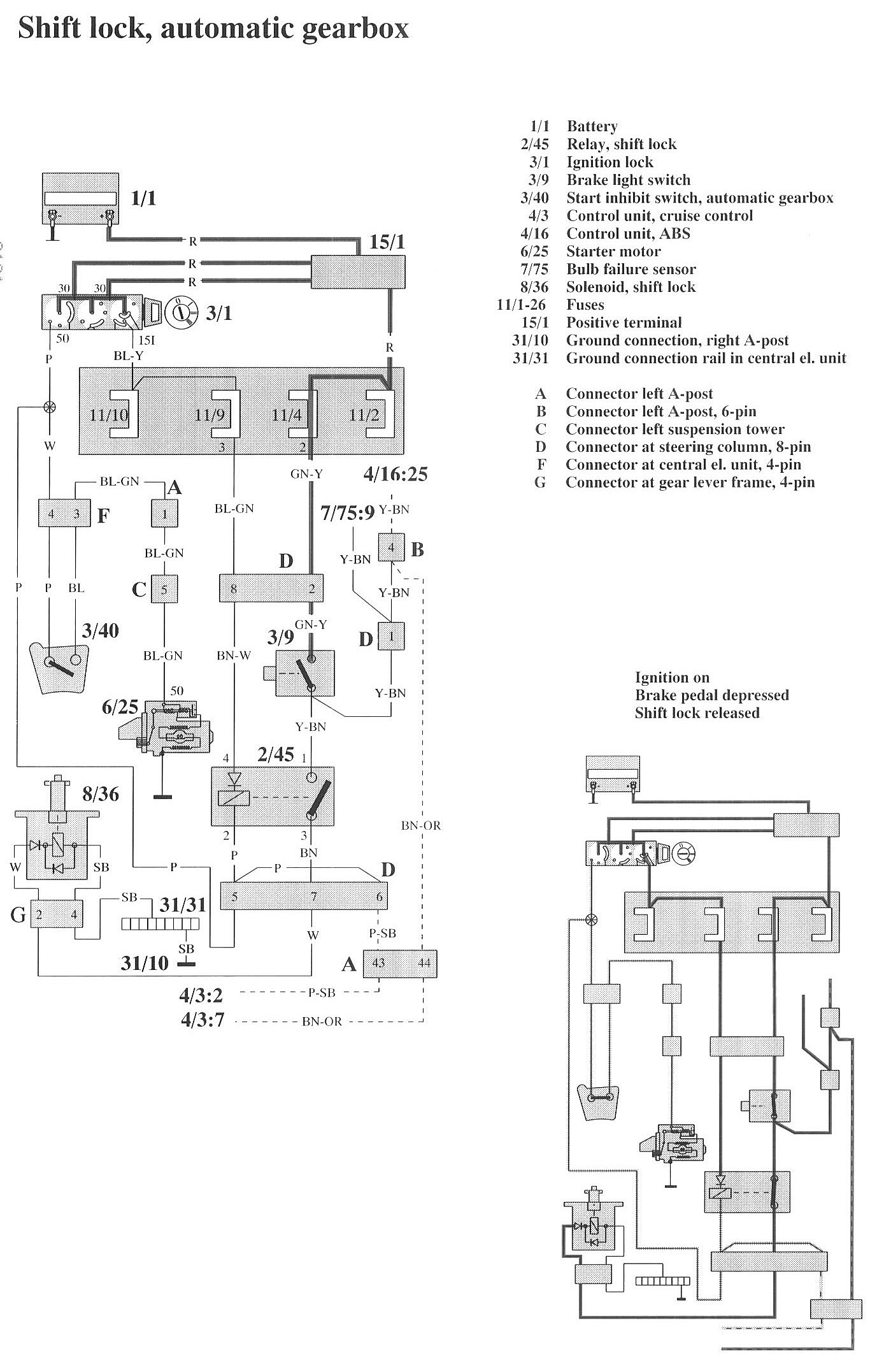

System Diagram

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
2/45 Relay, shift lock
3/1 Ignition lock
3/9 Brake light switch
3/40 Start inhibit switch, automatic gearbox
4/3 Control unit, cruise control
4/16 Control unit, ABS
6/25 Starter motor
7/75 Bulb failure sensor
8/36 Solenoid, shift lock

11/1-26 Fuses
15/1 Positive terminal
31/10 Ground connection, right A-post
31/31 Ground connection rail in central el. unit
