System Diagram

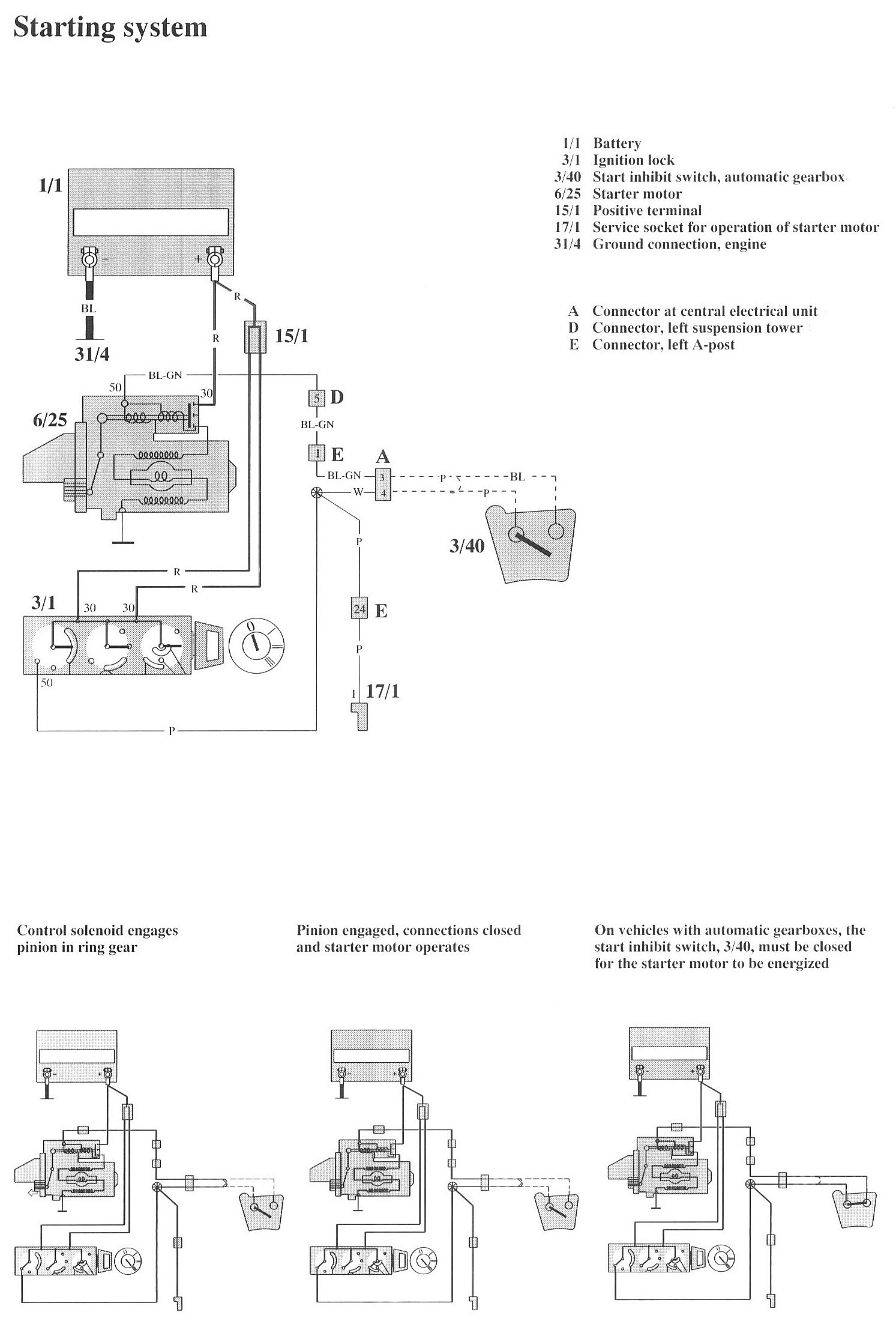

Wiring Diagrams:

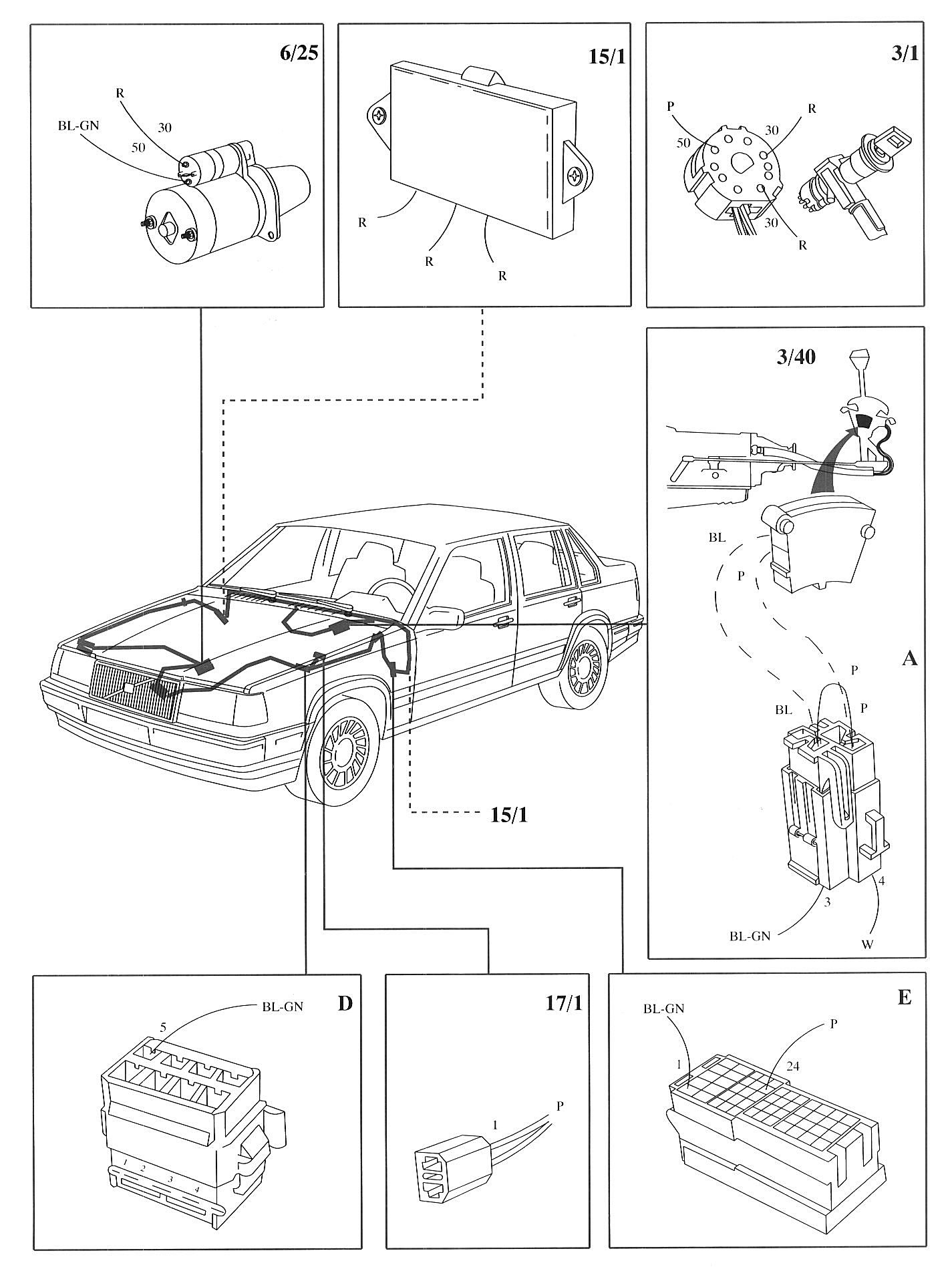

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
3/40 Start inhibit switch, automatic gearbox
6/25 Starter motor

15/1 Positive terminal
17/1 Service socket for operation of starter motor
31/4 Ground connection, engine
