System Diagram

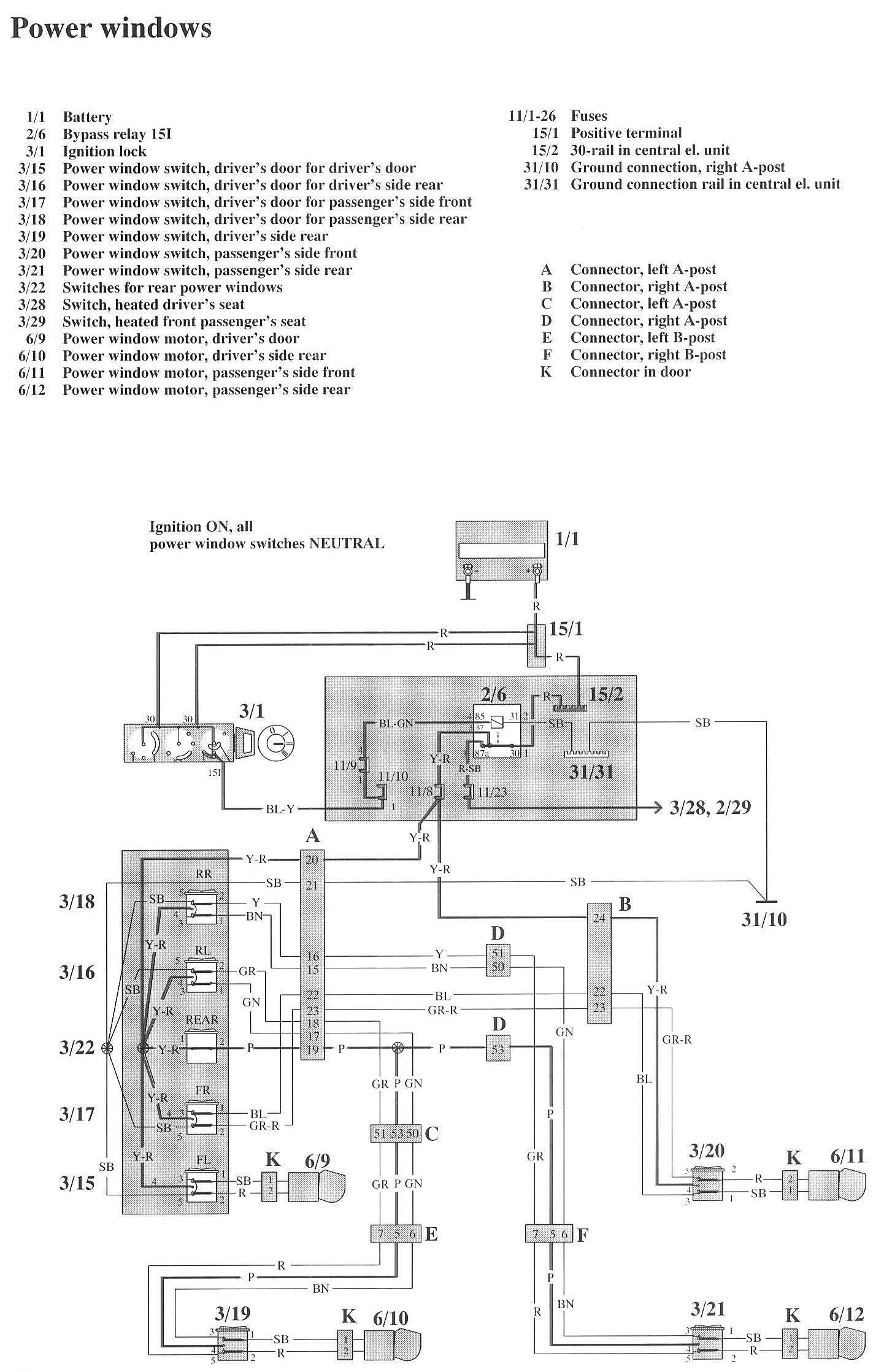

Wiring Diagrams:

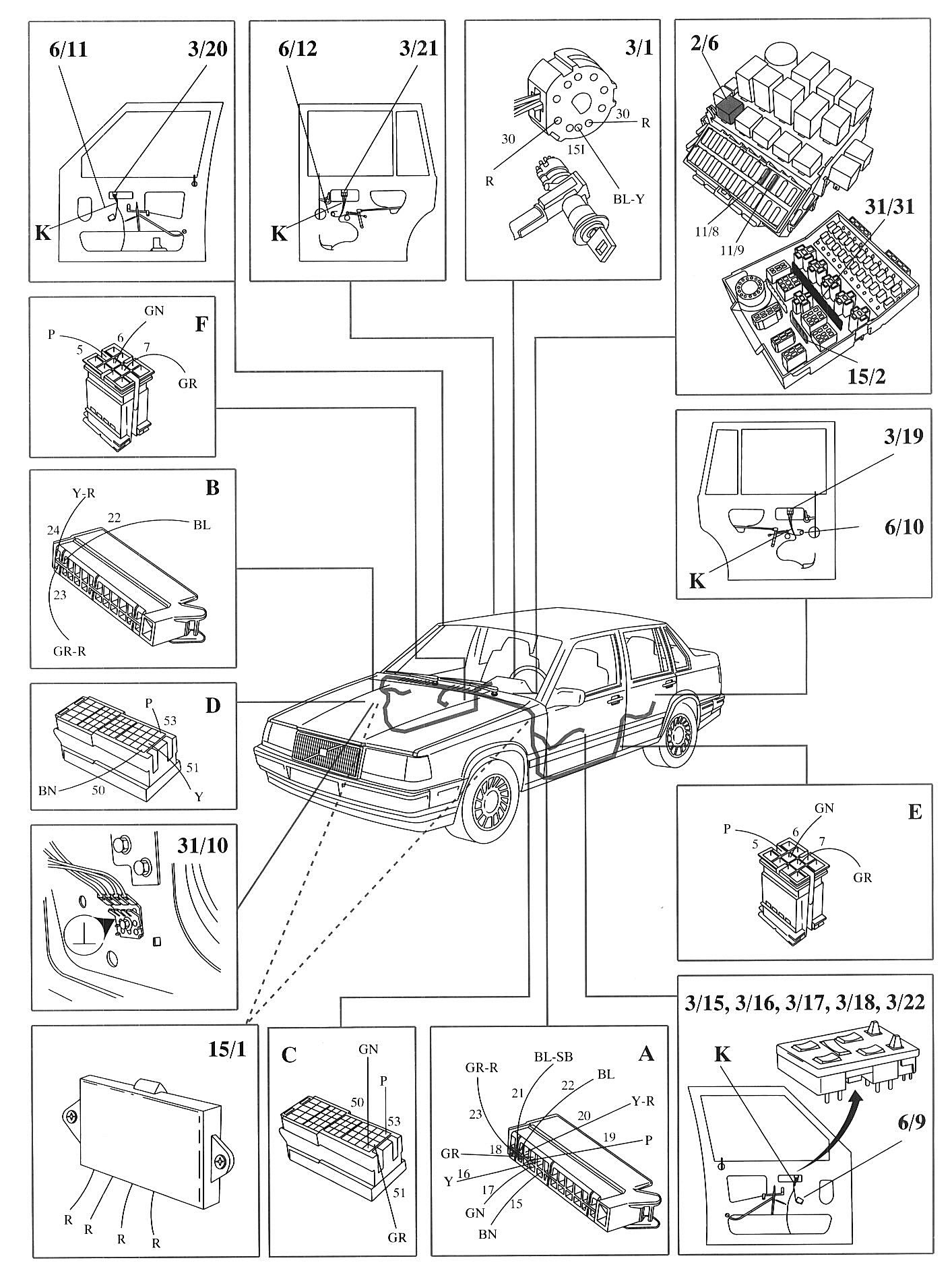

Component / Connector Locations:

LEGEND
1/1 Battery
2/6 Bypass relay 15I
3/1 Ignition lock
3/15 Power window switch, driver's door for driver's door
3/16 Power window switch, driver's door for driver's side rear
3/17 Power window switch, driver's door for passenger's side front
3/18 Power window switch, driver's door for passenger's side rear
3/19 Power window switch, driver's side rear
3/20 Power window switch, passenger's side front
3/21 Power window switch, passenger's side rear
3/22 Switches for rear power windows
3/28 Switch, heated driver's seat
3/29 Switch, heated front passenger's seat
6/9 Power window motor, driver's door
6/10 Power window motor, driver's side rear
6/11 Power window motor, passenger's side front
6/12 Power window motor, passenger's side rear

11/1-26 Fuses
15/1 Positive terminal
15/2 30-rail in central el. unit
31/10 Ground connection, right A-post
31/31 Ground connection rail in central el. unit
