Interior Lights

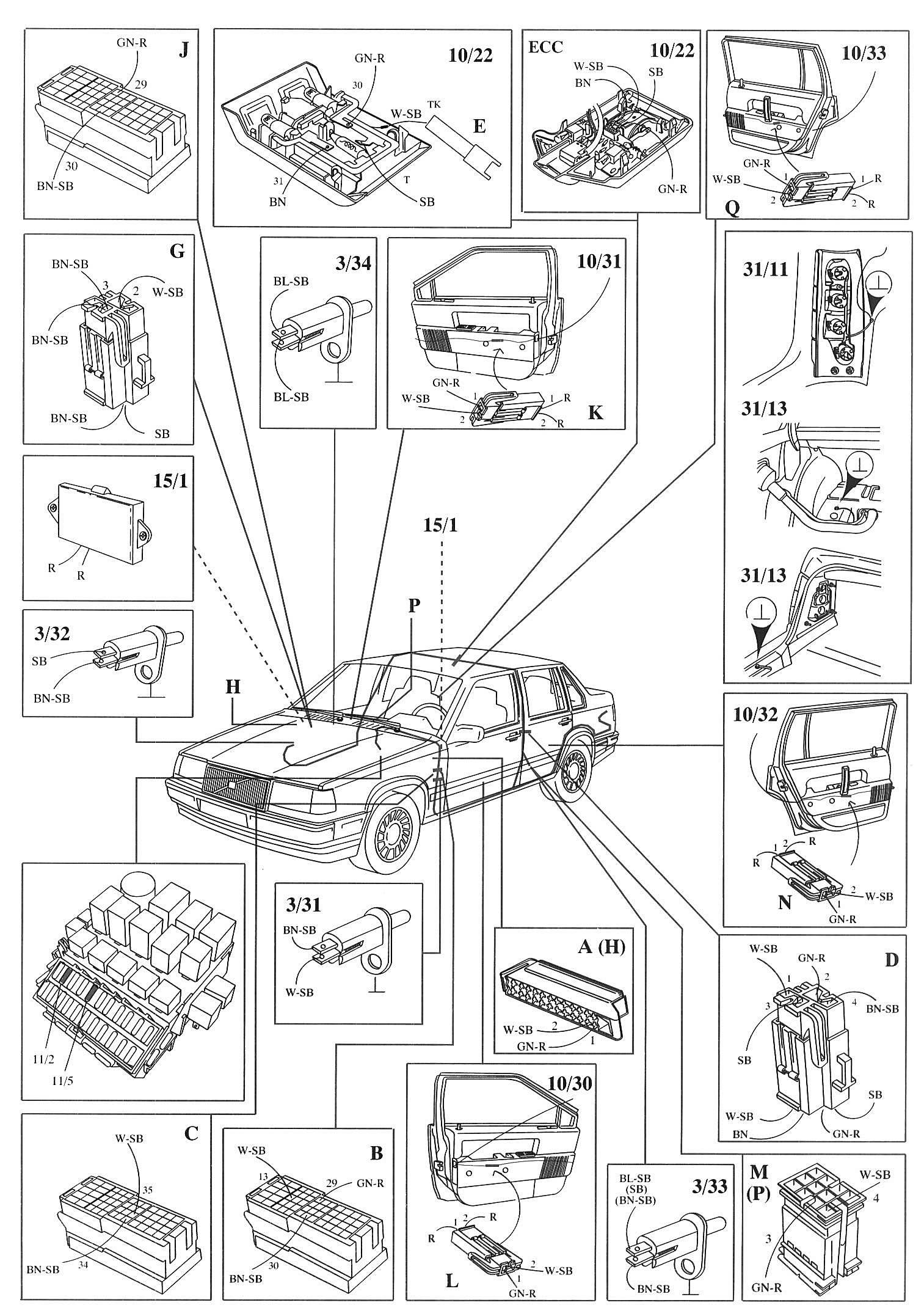

Component / Connector Locations:

Wiring Diagrams:

LEGEND
1/1 Battery
3/31 Door switch, driver's door
3/32 Door switch, front passenger door
3/33 Door switch, driver's side rear
3/34 Door switch, passenger's side rear

10/22 Roof light
10/30 Door-open warning lamp driver's door
10/31 Door-open warning lamp passenger's side front
10/32 Door-open warning lamp driver's side rear
10/33 Door-open warning lamp passenger's side rear
11/1-26 Fuses
15/1 Positive terminal
31/11 Ground connection, left tail light
31/13 Ground connection in trunk
