Beam Control

Wiring Diagrams:

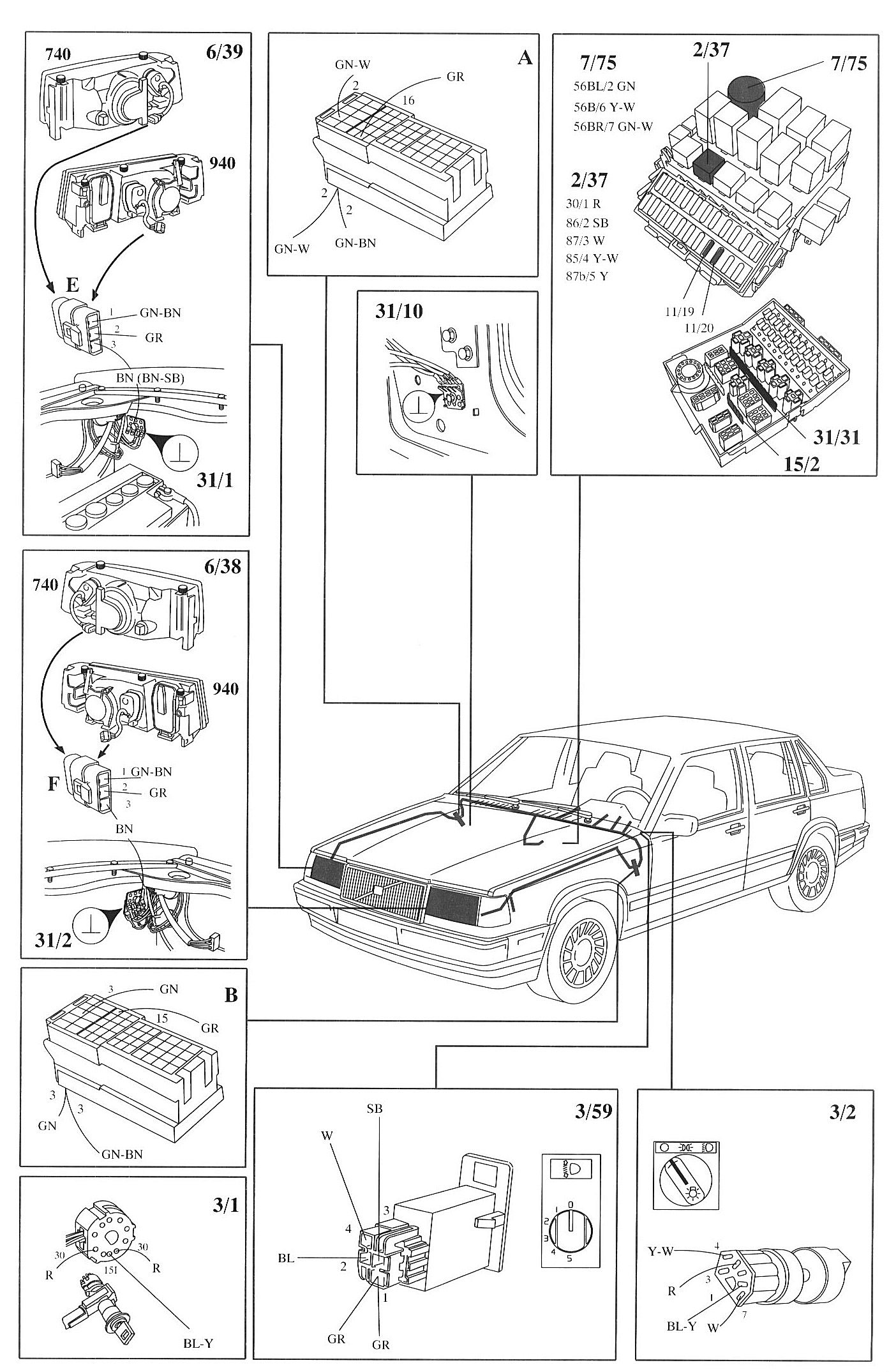

Component / Connector Locations:

LEGEND
1/1 Battery
2/37 Main light relay
3/1 Ignition lock
3/2 Light switch
3/5 Switch, turn signal/high-low beam
3/59 Beam control
5/1 Combined instrument
6/38 Actuator, left
6/39 Actuator, right
7/75 Bulb failure sensor

10/66 Right low beam light
10/70 Left low beam light
11/1-26 Fuses
15/1 Positive terminal
15/2 30-rail in central el. unit
16/1 Radio
31/1 Ground connection right front fender
31/2 Ground connection left front fender
31/10 Ground connection right A-post
31/31 Ground connection rail in central el. unit
