Bulb Failure Sensor

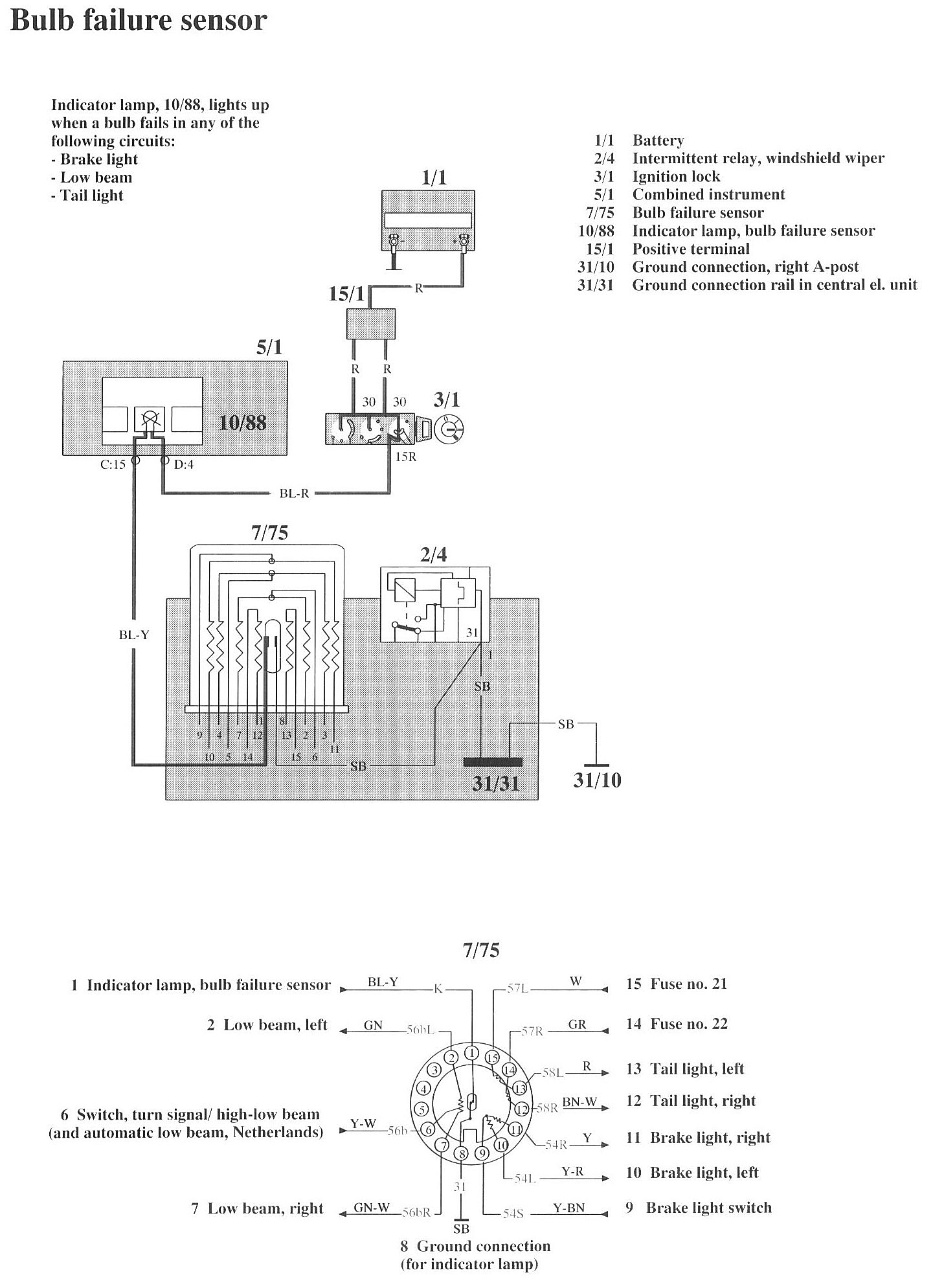

Wiring Diagrams:

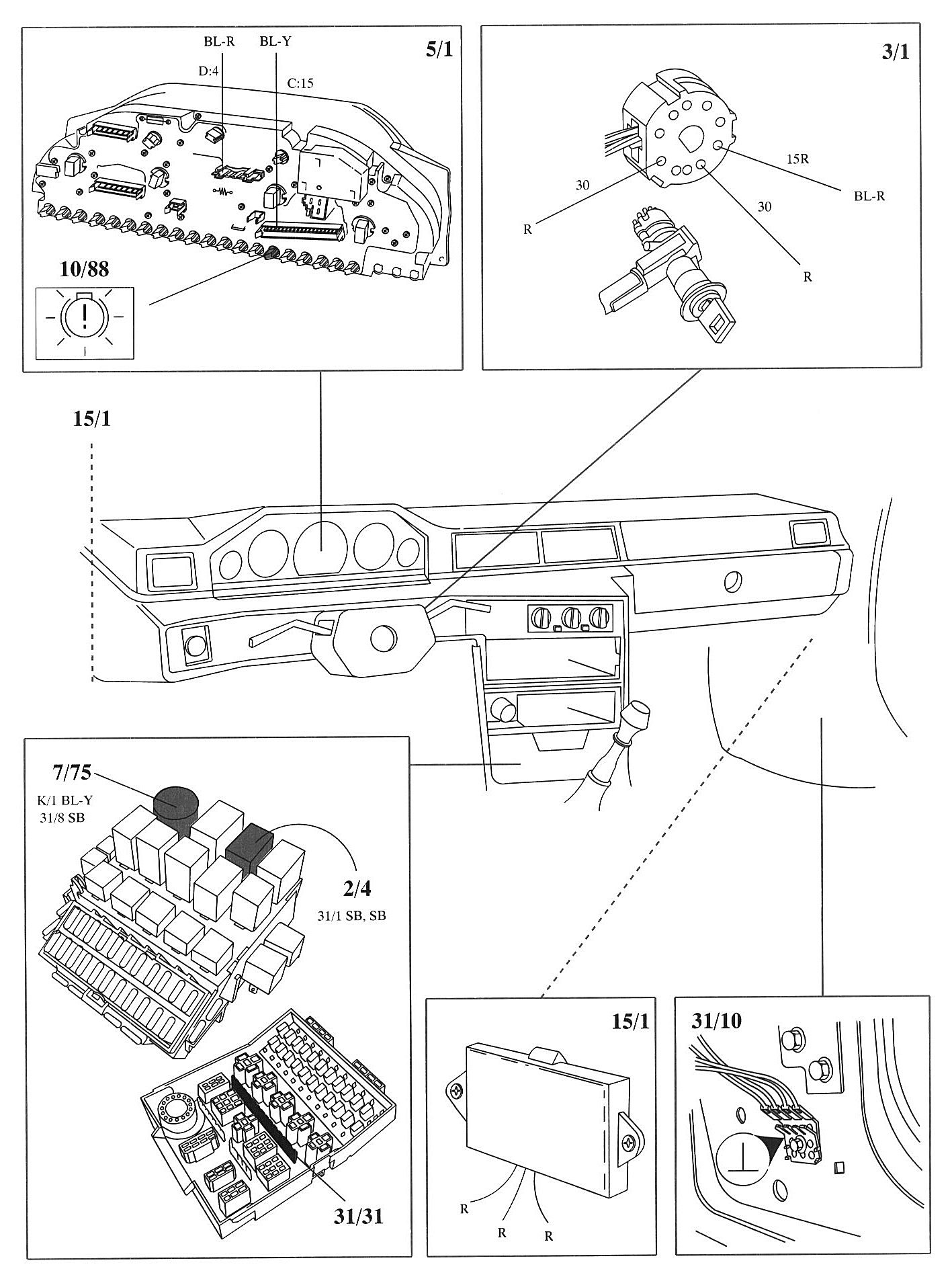

Component / Connector Locations:

LEGEND
1/1 Battery
2/4 Intermittent relay, windshield wiper
3/1 Ignition lock
5/1 Combined instrument
7/75 Bulb failure sensor

10/88 Indicator lamp, bulb failure sensor
15/1 Positive terminal
31/10 Ground connection, right A-post
31/31 Ground connection rail in central el. unit
