Turn Signals - Hazard Warning Lights

Wiring Diagrams:

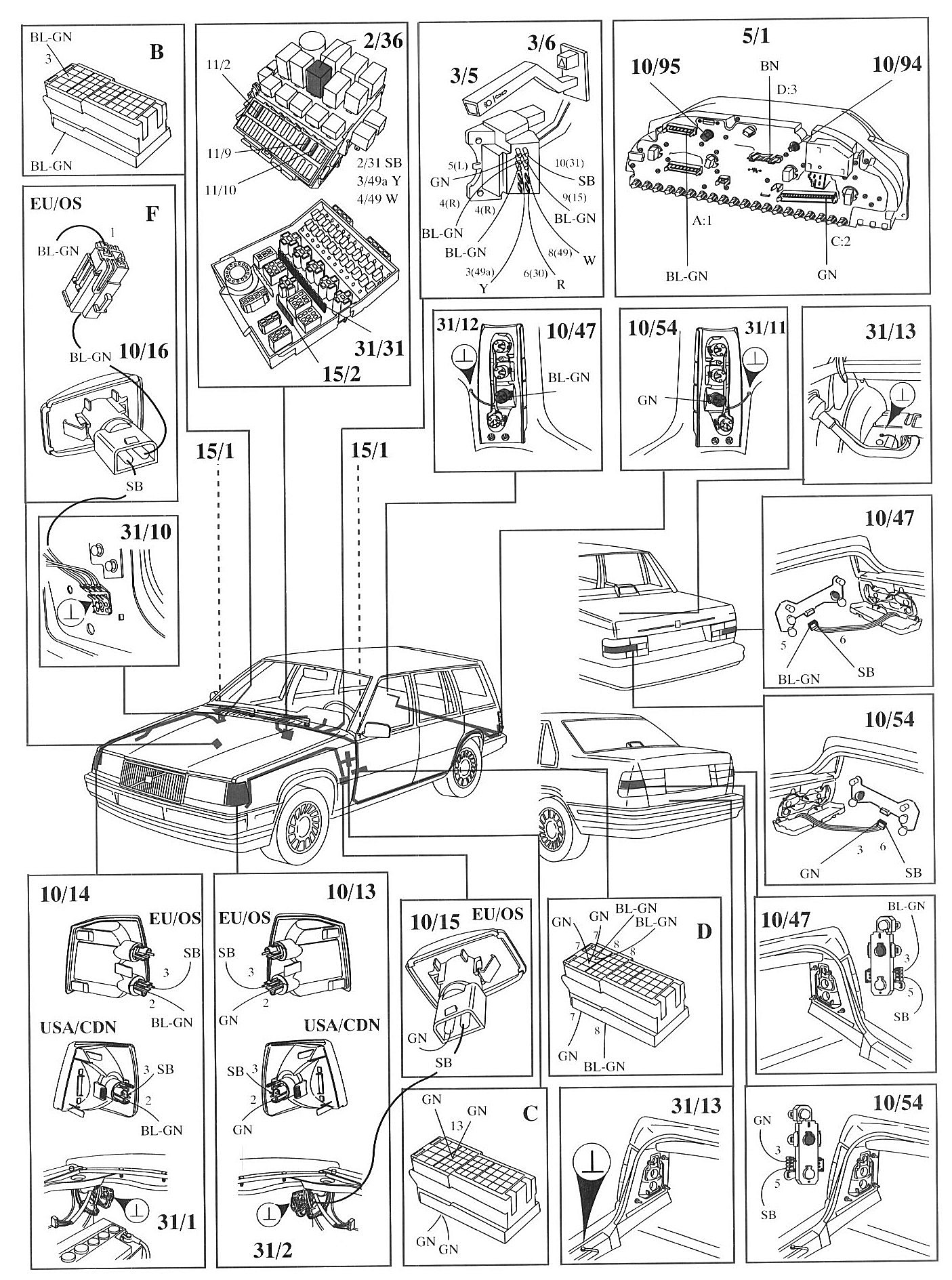

Component / Connector Locations:

LEGEND
1/1 Battery
2/36 Headlight flasher
3/1 Ignition lock
3/5 Switch, turn signal/high-low beam
3/6 Switch, hazard warning lights
3/7 Foglight switch
3/59 Beam control
5/1 Combined instrument

10/13 Left turn signal front
10/14 Right turn signal front
10/15 Left turn signal side repeater (not USA/CAN)
10/16 Right turn signal side repeater (not USA/CAN)
10/47 Right turn signal, rear
10/54 Left turn signal, rear
10/94 Indicator lamp, right turn signal
10/95 Indicator lamp, left turn signal
11/1-26 Fuses
15/1 Positive terminal
15/2 30-rail in central el. unit
21/2 Connector, anti-theft alarm
31/1 Ground connection, right front fender
31/2 Ground connection, left front fender
31/10 Ground connection, right A-post
31/11 Ground connection, left tail light
31/12 Ground connection, right tail light
31/13 Ground connection in luggage compartment
31/31 Ground connection rail in central el. unit
