Foglights

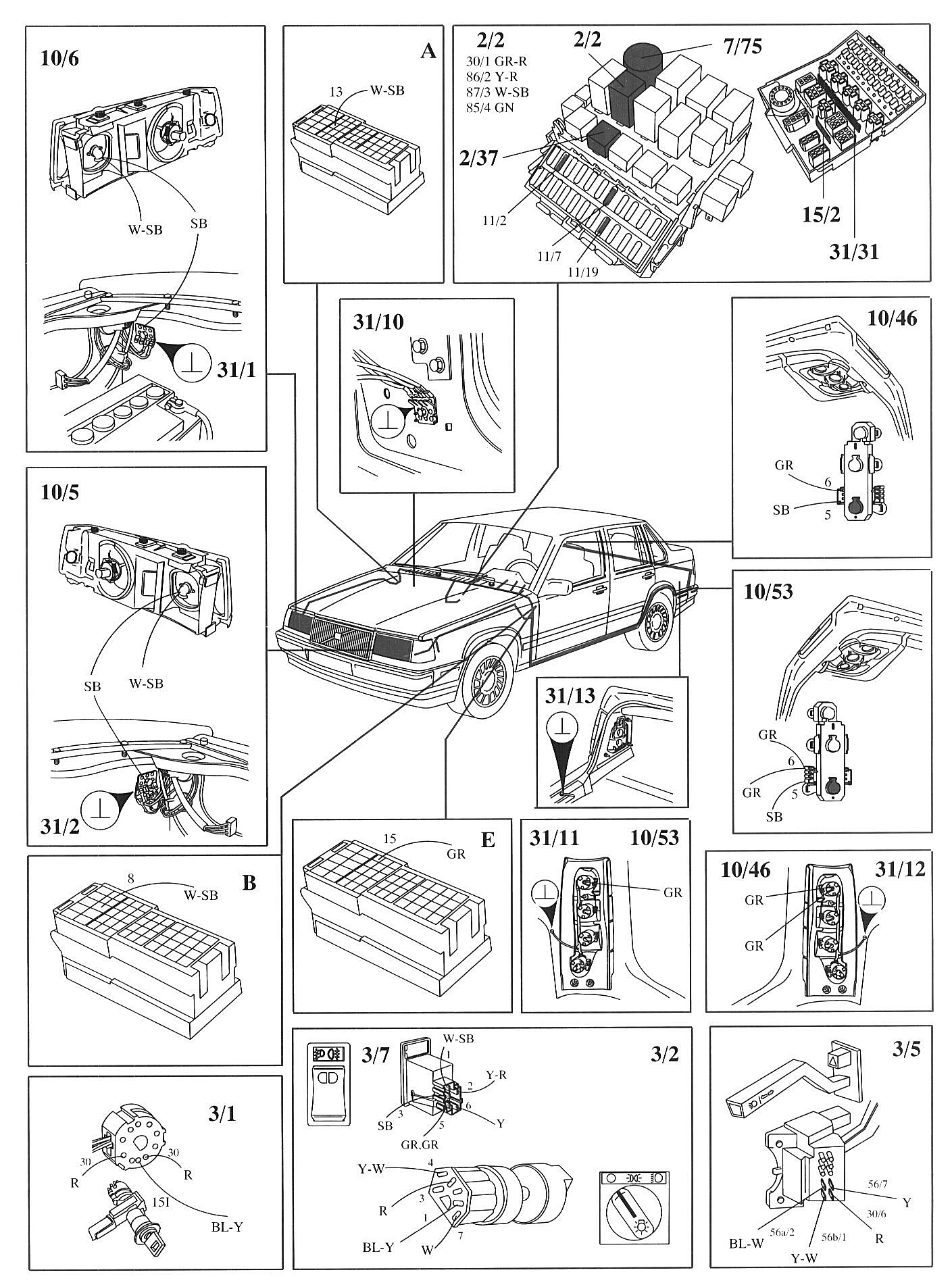

Component / Connector Locations:

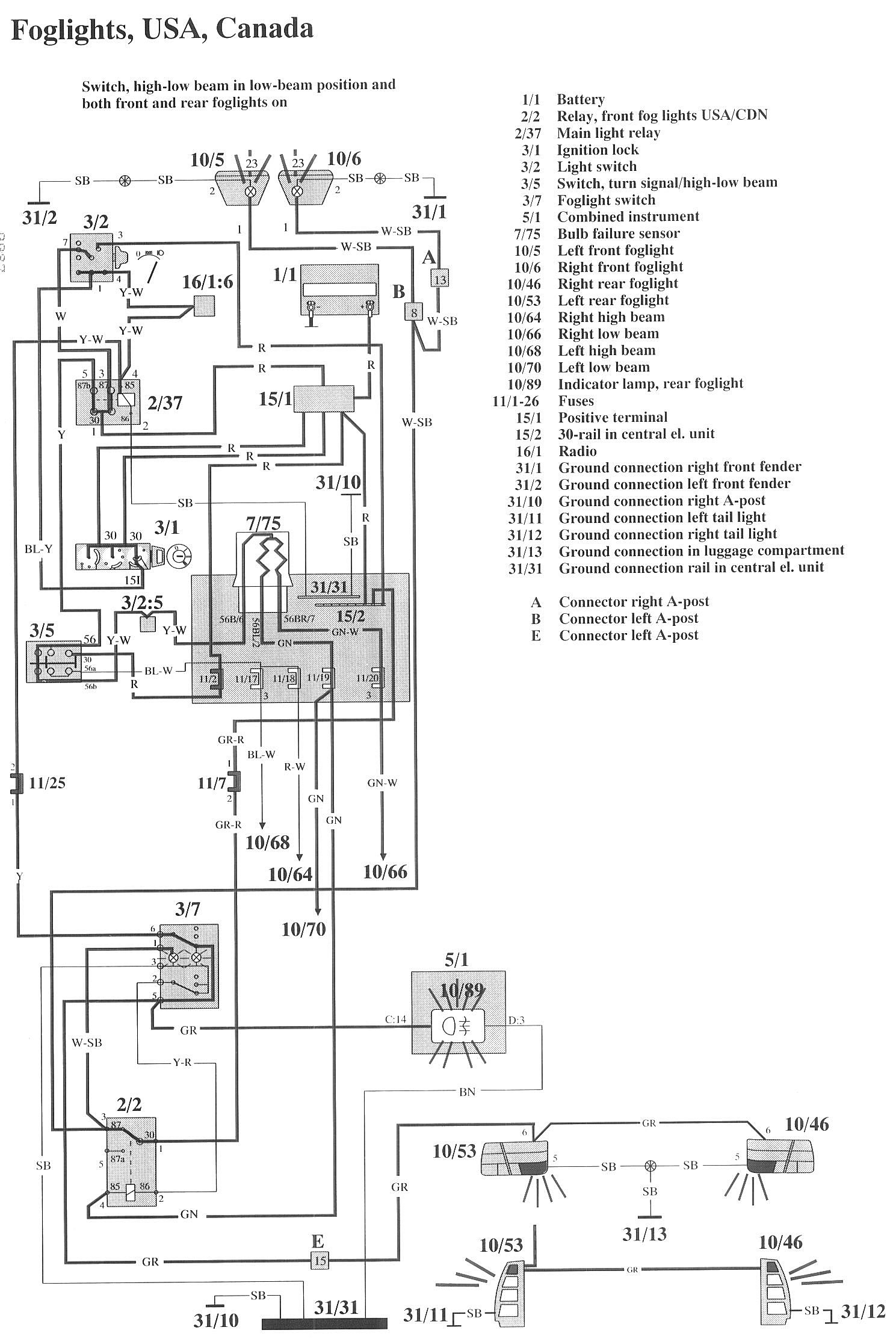

Wiring Diagrams:

LEGEND
1/1 Battery
2/2 Relay, front fog lights USA/CAN
2/37 Main light relay
3/1 Ignition lock
3/2 Light switch
3/5 Switch, turn signal/high-low beam
3/7 Foglight switch
5/1 Combined instrument
7/75 Bulb failure sensor

10/5 Left front foglight
10/6 Right front foglight
10/46 Right rear foglight
10/53 Left rear foglight
10/64 Right high beam
10/66 Right low beam
10/68 Left high beam
10/70 Left low beam
10/89 Indicator lamp, rear foglight
11/1-26 Fuses
15/1 Positive terminal
15/2 30-rail in central el. unit
16/1 Radio
31/1 Ground connection right front fender
31/2 Ground connection left front fender
31/10 Ground connection right A-post
31/11 Ground connection left tail light
31/12 Ground connection right tail light
31/13 Ground connection in luggage compartment
31/31 Ground connection rail in central el. unit
