Heated Rear Window and Door Mirrors With Timer Relay

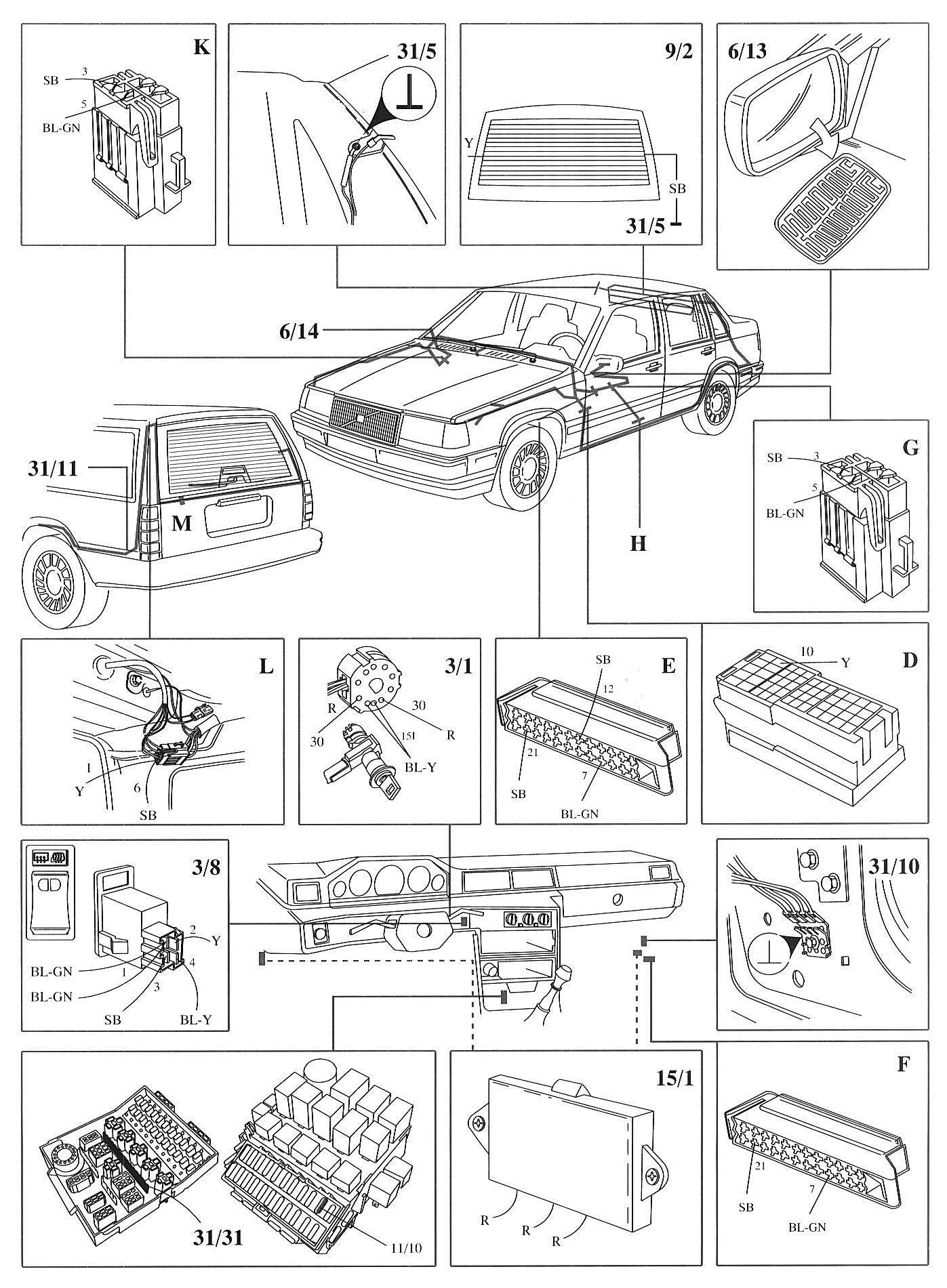

Component / Connector Locations:

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/8+ Switch with delay relay, rear window/door mirror heating
3/23 Switch, driver's power door mirror
3/24 Switch, passenger power door mirror
6/13 Power door mirror, driver's side
6/14 Power door mirror, passenger's side
9/2 Heated rear window

11/1-26 Fuses
15/1 Positive terminal
31/5 Ground connection for heated rear window (4-door)
31/10 Ground connection right A-post
31/11 Ground connection left tail light
31/31 Ground connection rail in central el. unit
