Windscreen Wash/Wipe

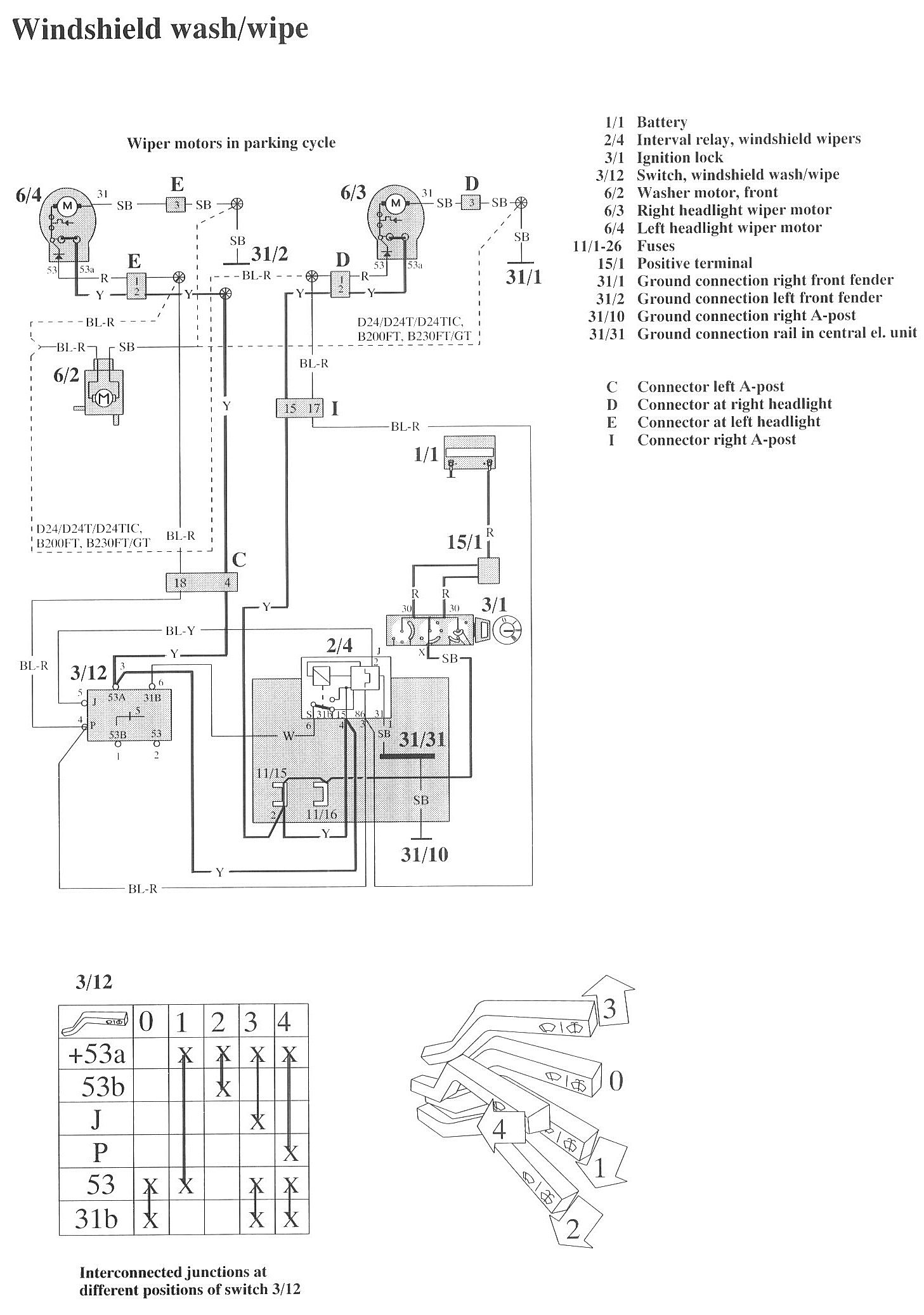

Wiring Diagrams:

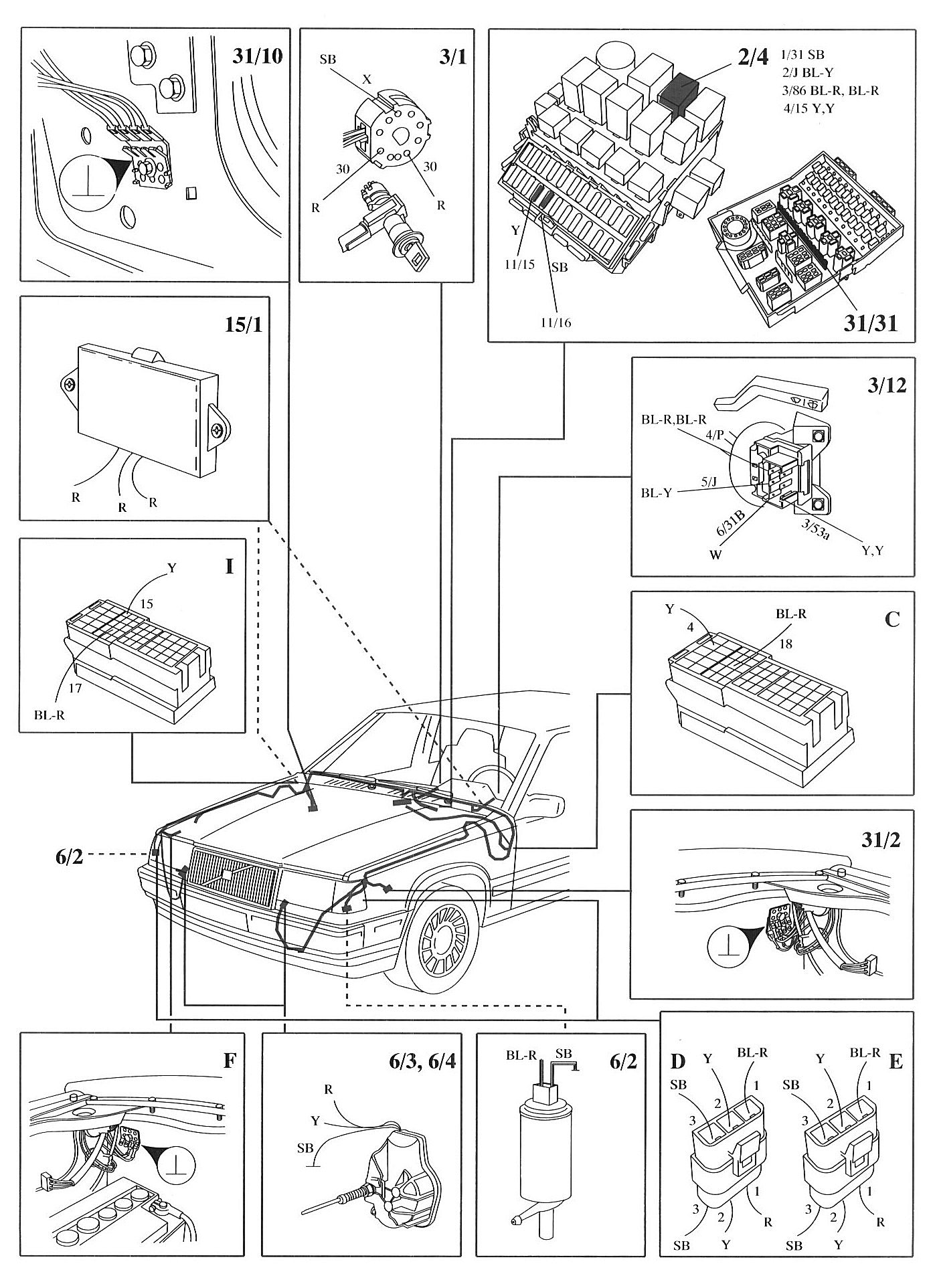

Component / Connector Locations:

LEGEND
1/1 Battery
2/4 Interval relay, windshield wipers
3/1 Ignition lock
3/12 Switch, windshield wash/wipe
6/2 Washer motor, front
6/3 Right headlight wiper motor
6/4 Left headlight wiper motor

11/1-26 Fuses
15/1 Positive terminal
31/1 Ground connection right front fender
31/2 Ground connection left front fender
31/10 Ground connection right A-post
31/31 Ground connection rail in central el. unit
