Power Seat With Memory

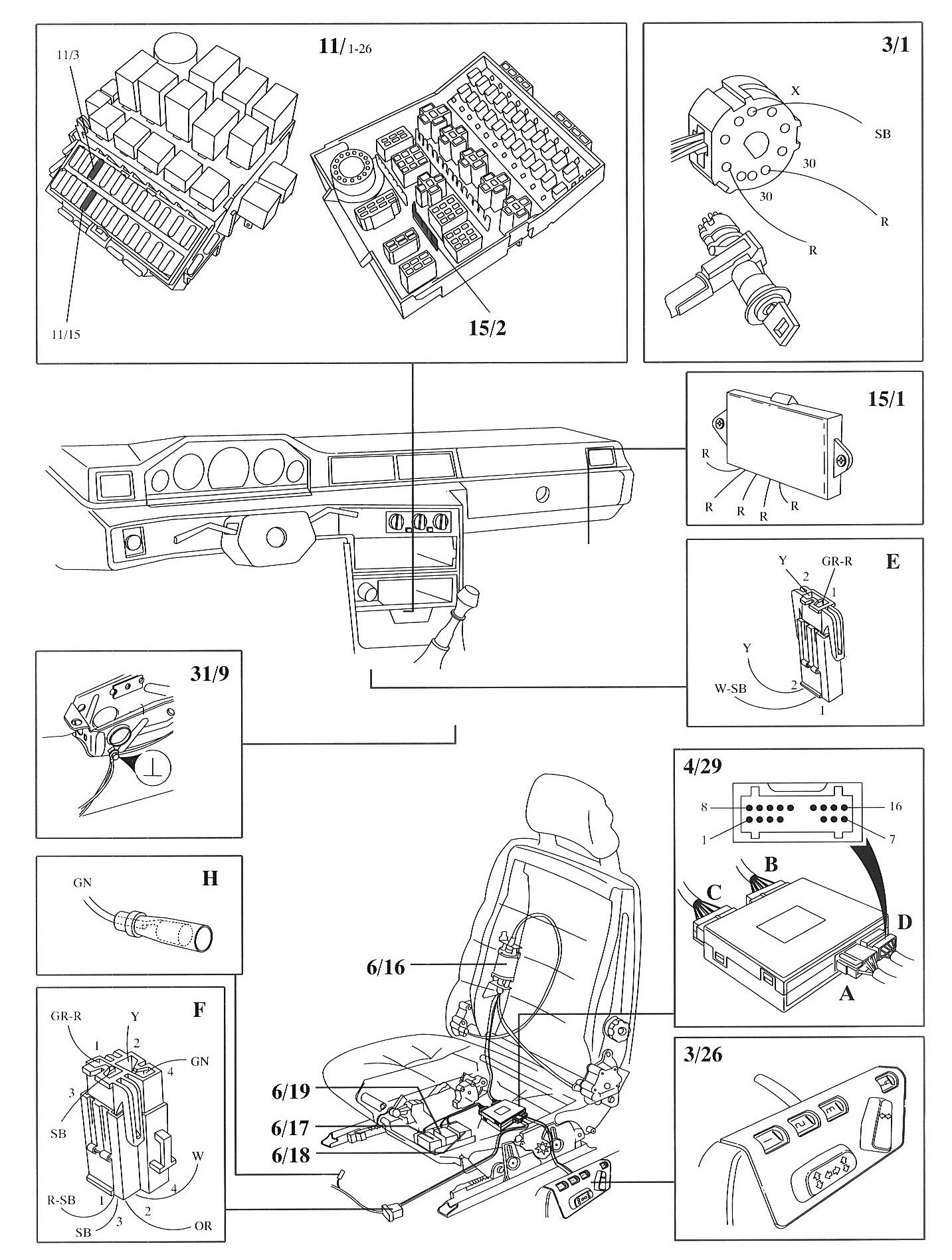

Component / Connector Locations:

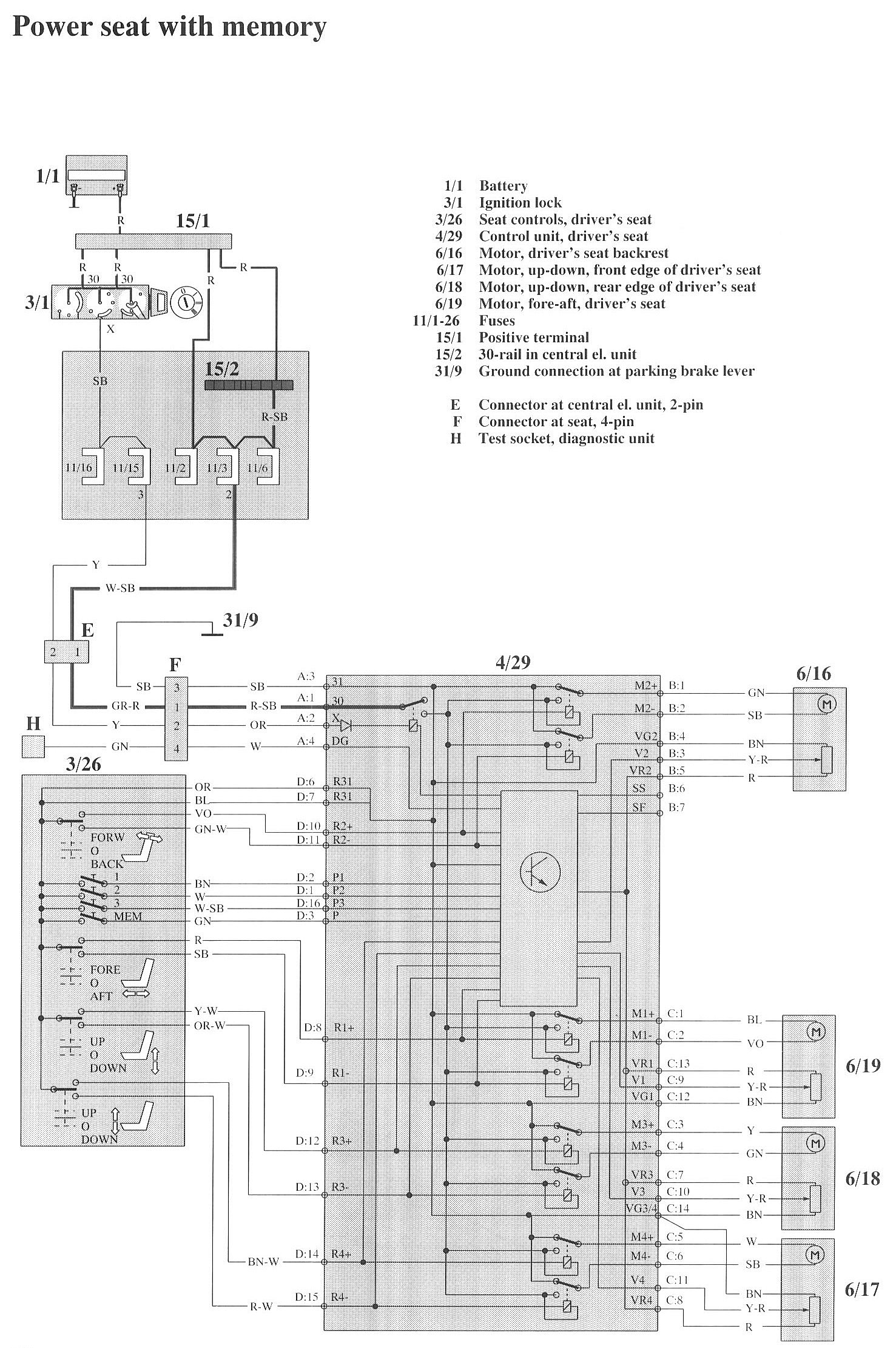

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/26 Seat controls, driver's seat
4/29 Control unit, driver's seat
6/16 Motor, driver's seat backrest
6/17 Motor, up-down, front edge of driver's seat
6/18 Motor, up-down, rear edge of driver's seat
6/19 Motor, fore-aft, driver's seat

11/1-26 Fuses
15/1 Positive terminal
15/2 30-rail in central el. unit
31/9 Ground connection at parking brake lever
