System Diagram

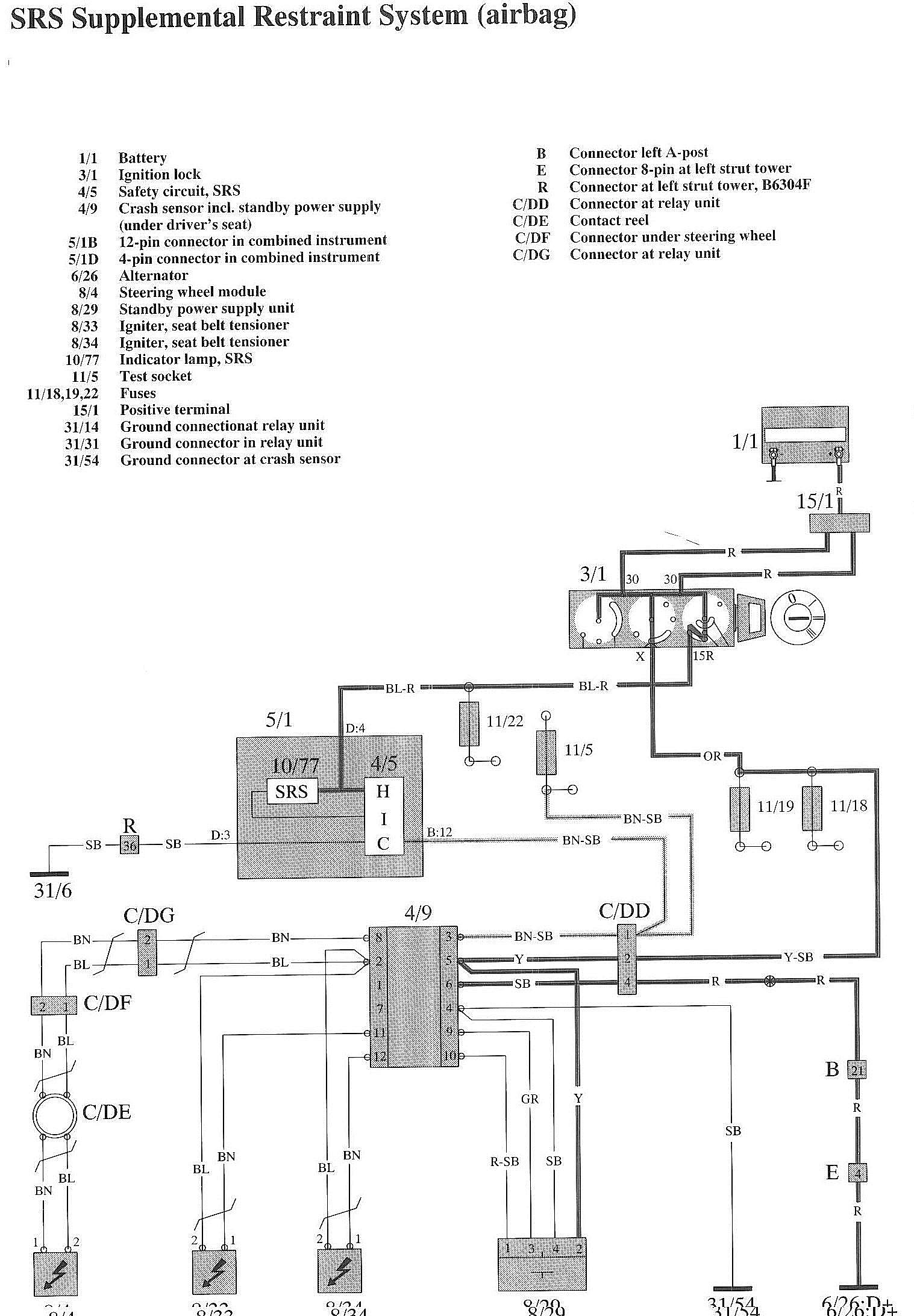

Wiring Diagrams:

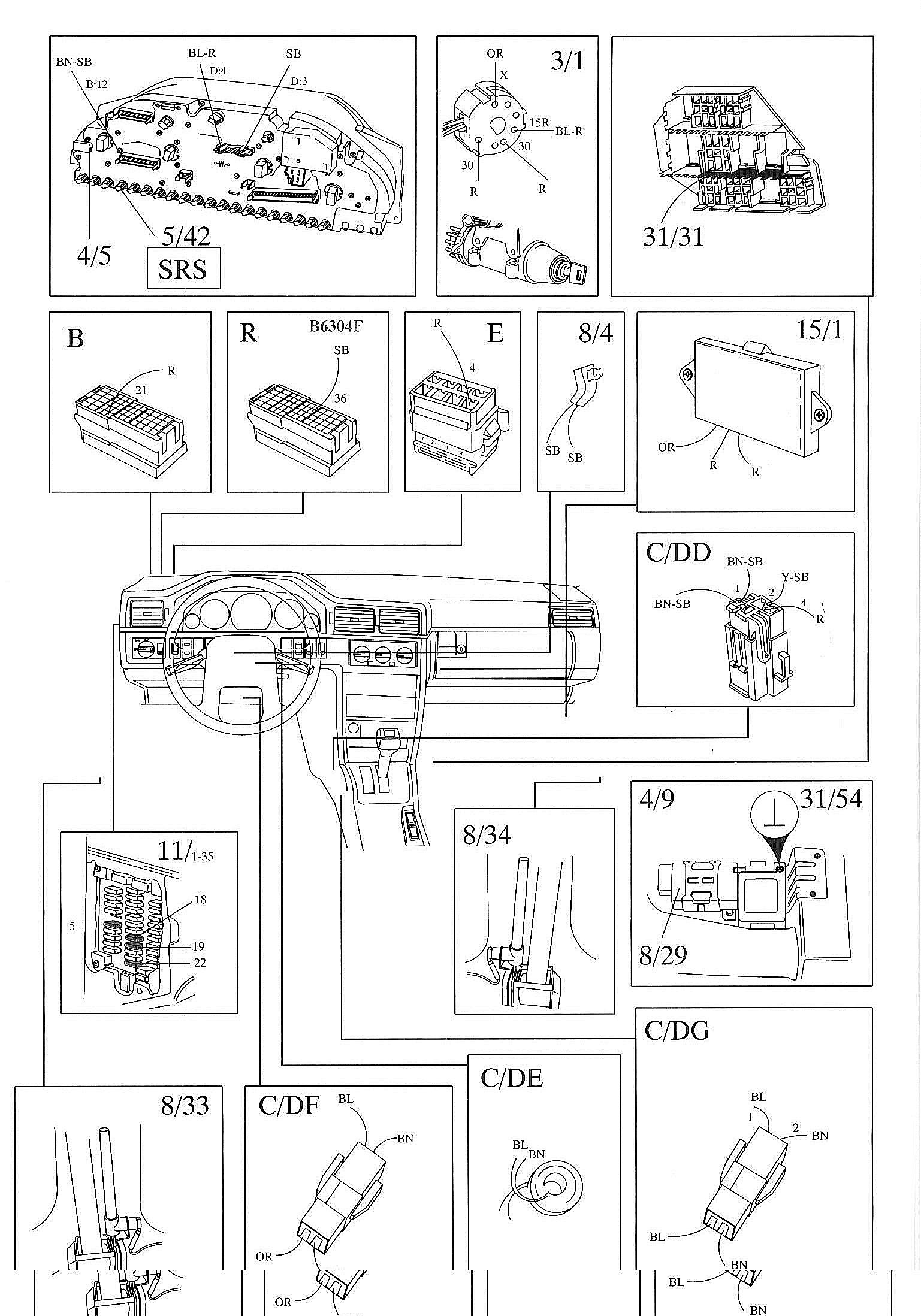

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
4/5 Safety circuit, SRS
4/9 Crash sensor incl. standby power supply (under driver's seat)
5/1B 12-pin connector in combined instrument
5/1D 4-pin connector in combined instrument
6/26 Alternator
8/4 Steering wheel module
8/29 Standby power supply unit
8/33 Igniter, seat belt tensioner
8/34 Igniter, seat belt tensioner

10/77 Indicator lamp, SRS
11/5 Test socket
11/18,19,22 Fuses
15/1 Positive terminal
31/14 Ground connection at relay unit
31/31 Ground connector in relay unit
31/54 Ground connector at crash sensor
