Antitheft and Alarm Systems

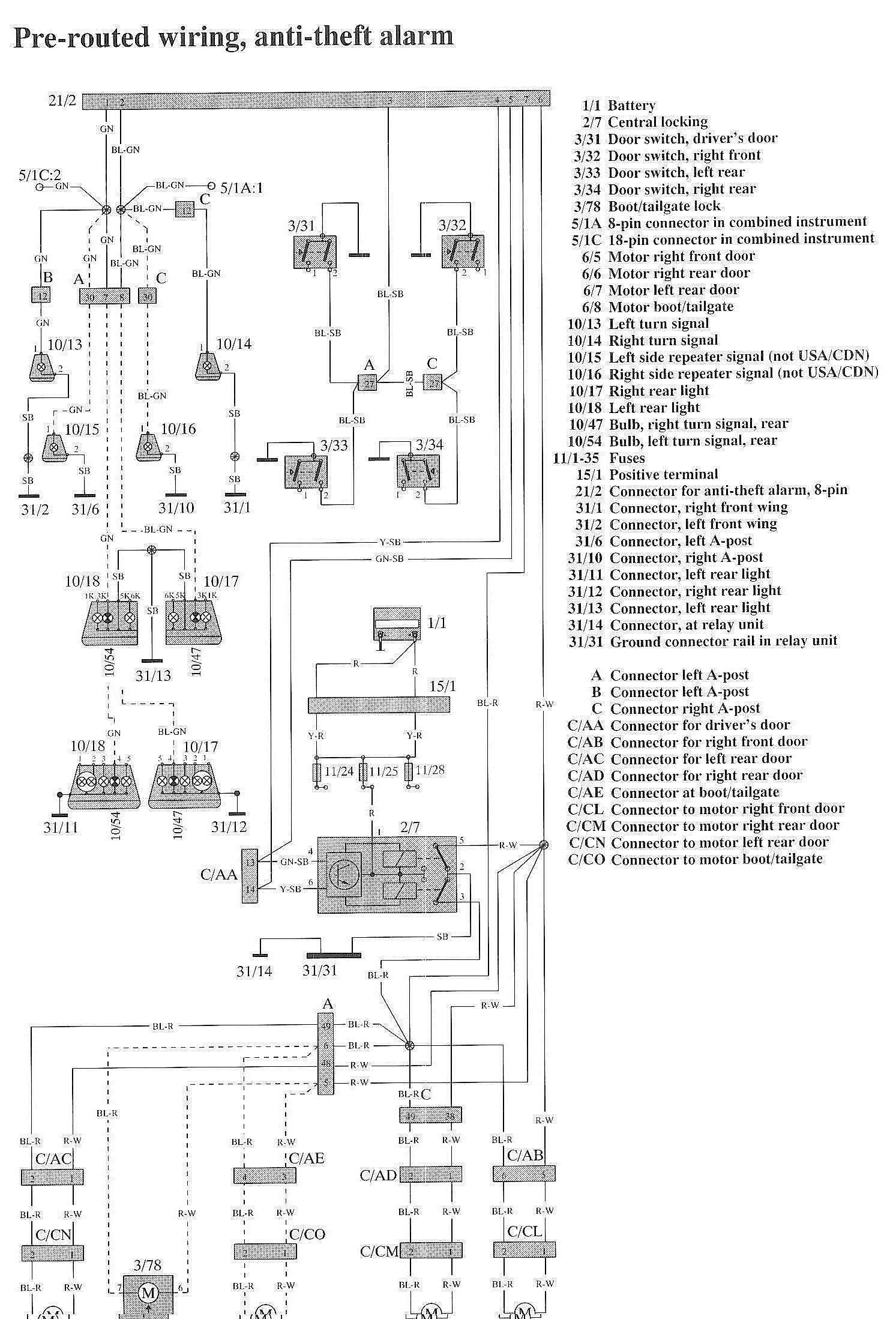

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
2/7 Central locking
3/31 Door switch, driver's door
3/32 Door switch, right front
3/33 Door switch, left rear
3/34 Door switch, right rear
3/78 Boot/tailgate lock
5/1A 8-pin connector in combined instrument
5/1C 18-pin connector in combined instrument
6/5 Motor right front door
6/6 Motor right rear door
6/7 Motor left rear door
6/8 Motor boot, tailgate

10/13 Left turn signal
10/14 Right turn signal
10/15 Left side repeater signal (not USA/CAN)
10/16 Right side repeater signal (not USA/CAN)
10/17 Right rear light
10/18 Left rear light
10/47 Bulb, right turn signal, rear
10/54 Bulb, left turn signal, rear
11/1-35 Fuses
15/1 Positive terminal
21/2 Connector for anti-theft alarm, 8-pin
31/1 Connector, right front wing
31/2 Connector, left front wing
31/6 Connector, left A-post
31/10 Connector, right A-post
31/11 Connector, left rear light
31/12 Connector, right rear light
31/13 Connector, left rear light
31/14 Connector, at relay unit
31/31 Ground connector rail in relay unit
