System Diagram

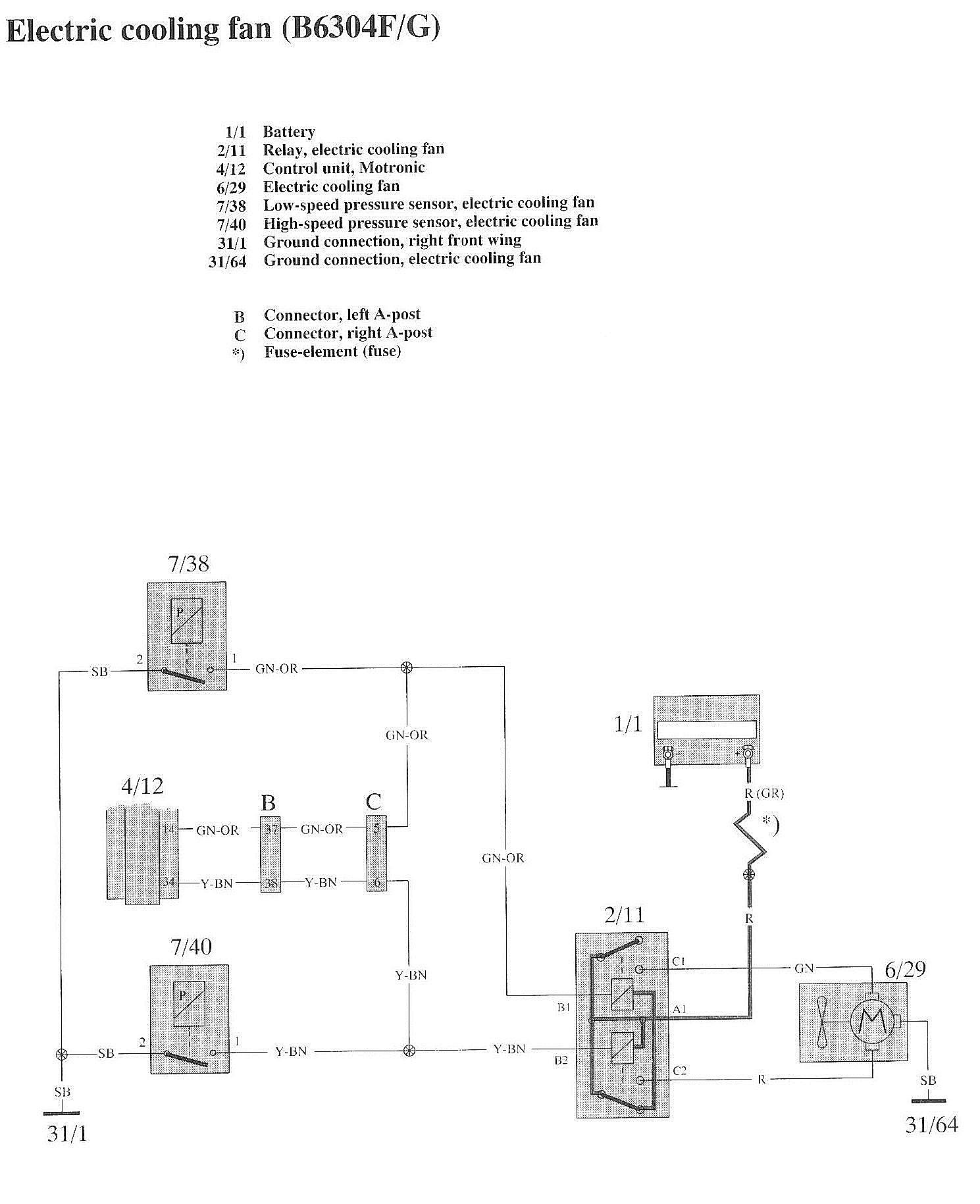

Wiring Diagrams:

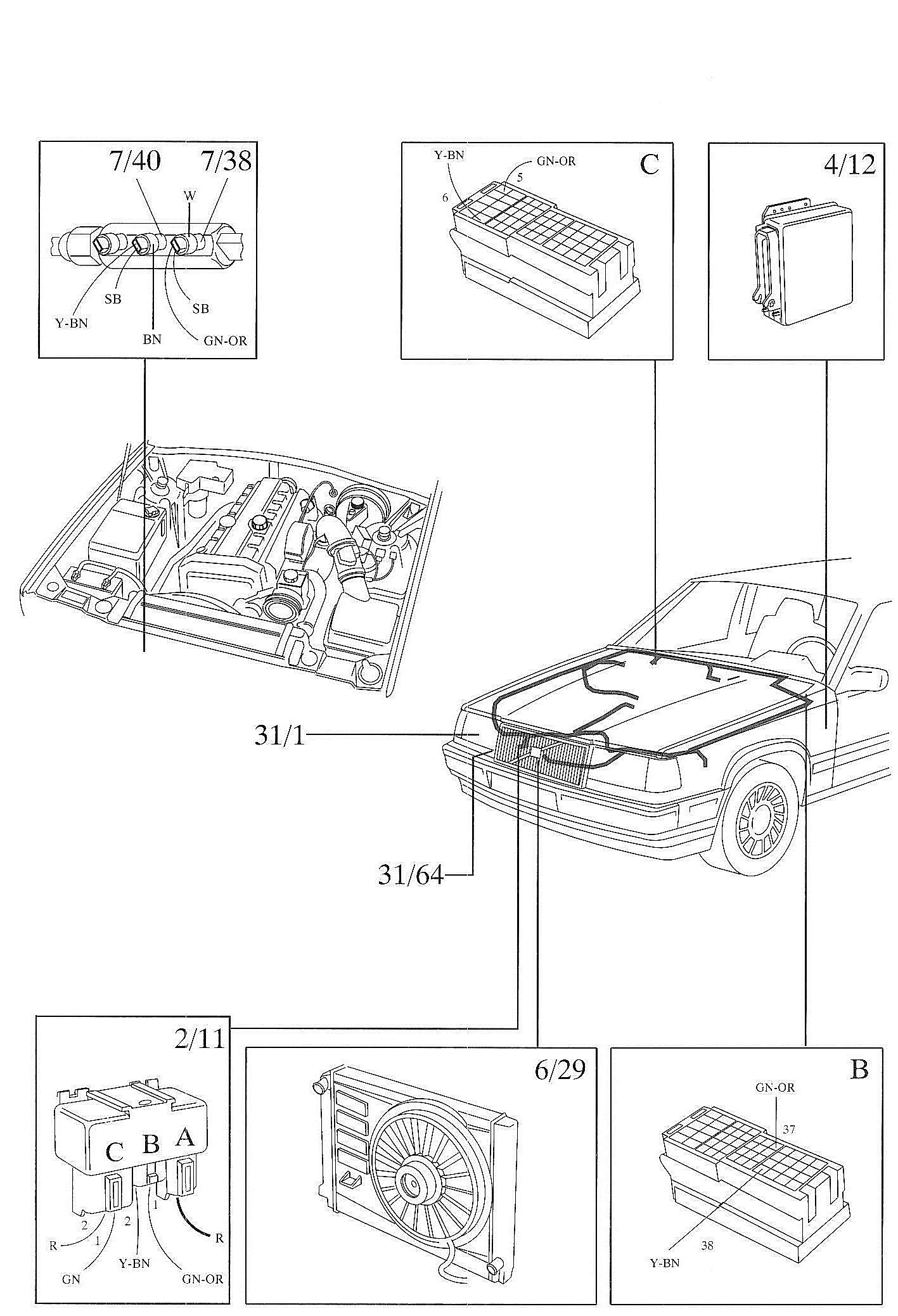

Component / Connector Locations:

LEGEND
1/1 Battery
2/11 Relay, electric cooling tan
4/12 Control unit, Motronic
6/29 Electric cooling fan
7/38 Low-speed pressure sensor. electric cooling fan
7/40 High-speed pressure sensor, electric cooling fan

31/1 Ground connection, right front wing
31/64 Ground connection, electric cooling fan
