Backup Lamp

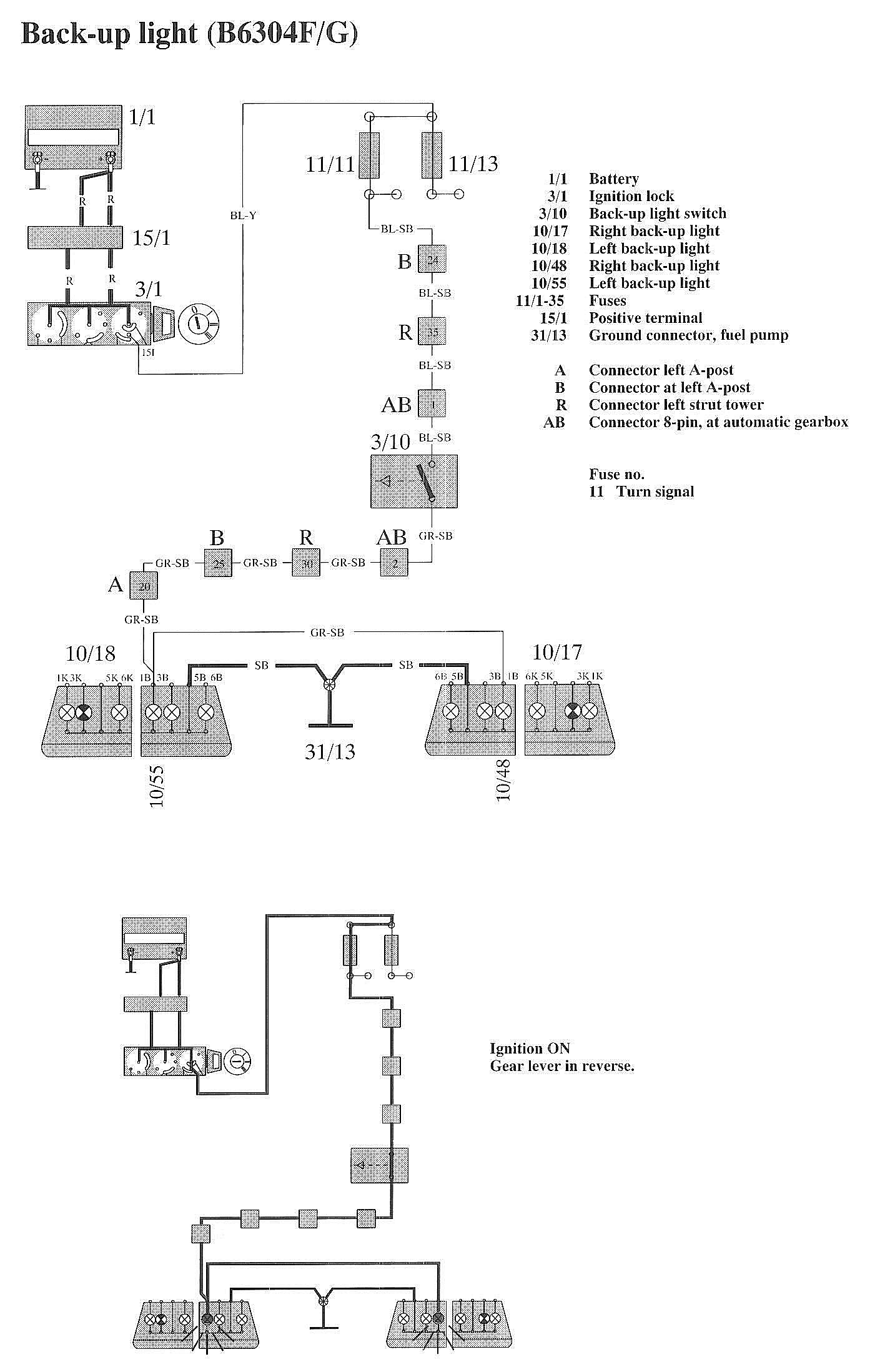

Wiring Diagrams:

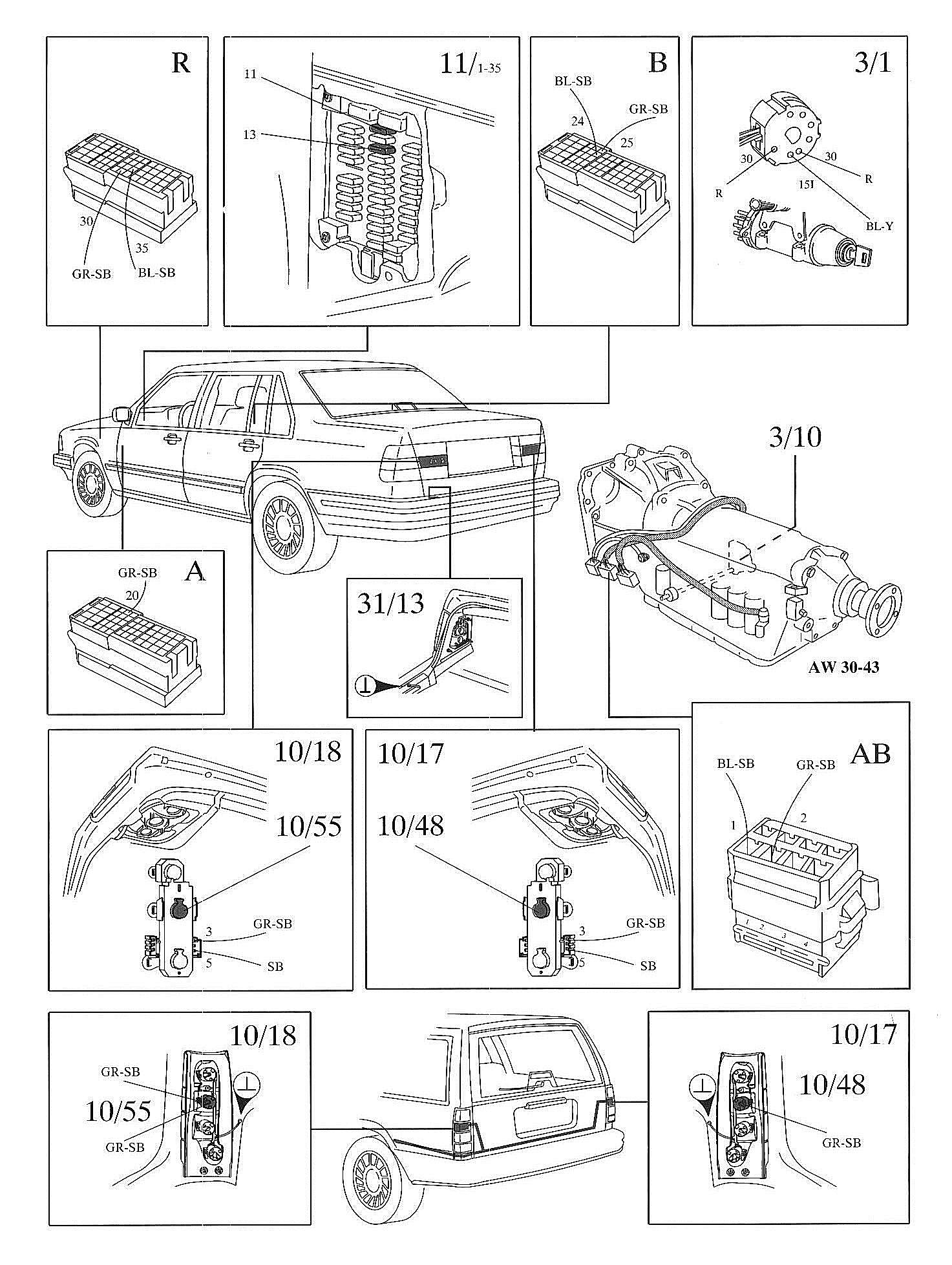

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
3/10 Back-up light switch

10/17 Right back-up light
10/18 Left back-up light
10/48 Right back-up light
10/55 Left back-up light
11/1-35 Fuses
15/1 Positive terminal
31/13 Ground connector, fuel pump
