Fog/Driving Lamp

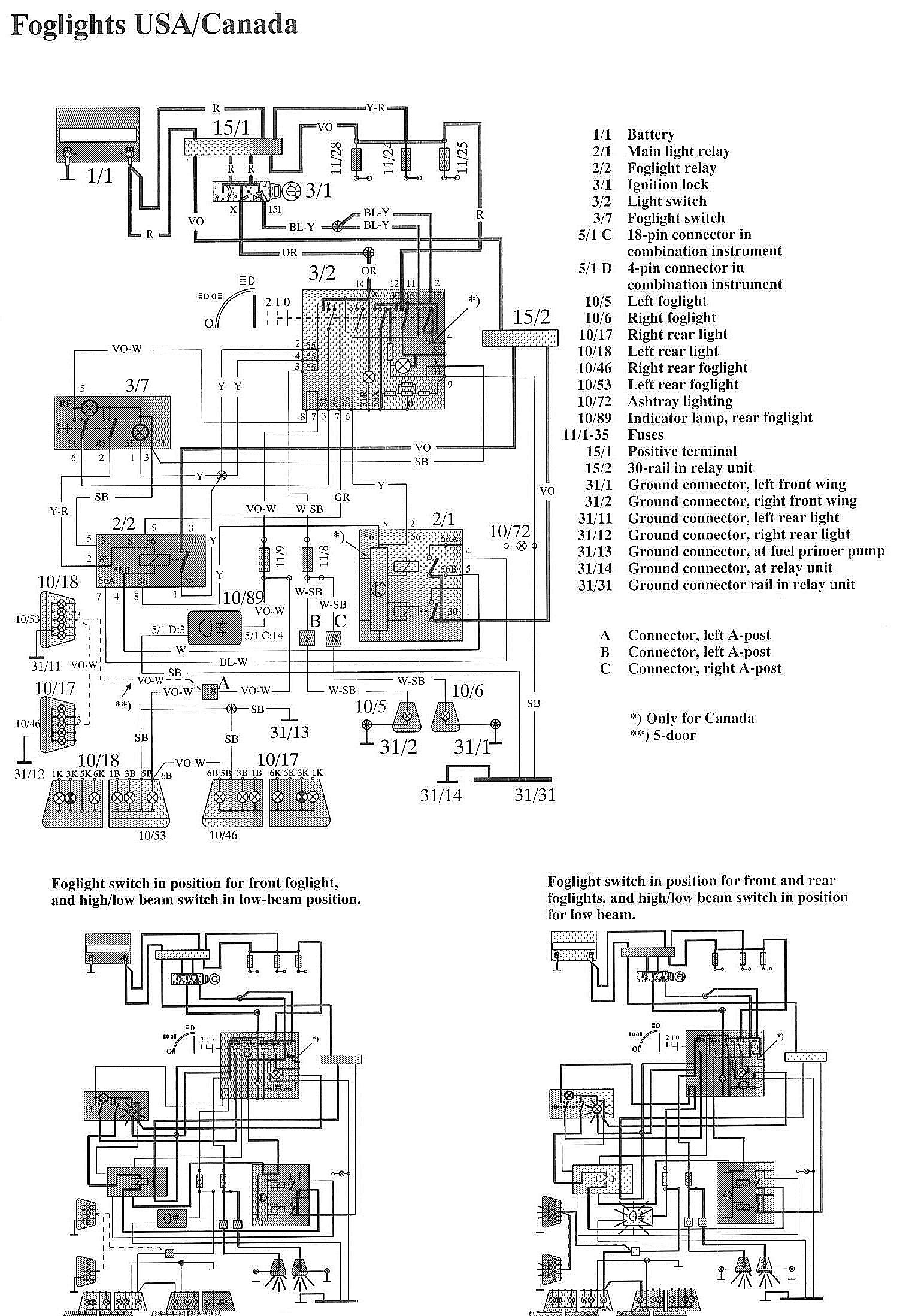

Wiring Diagrams:

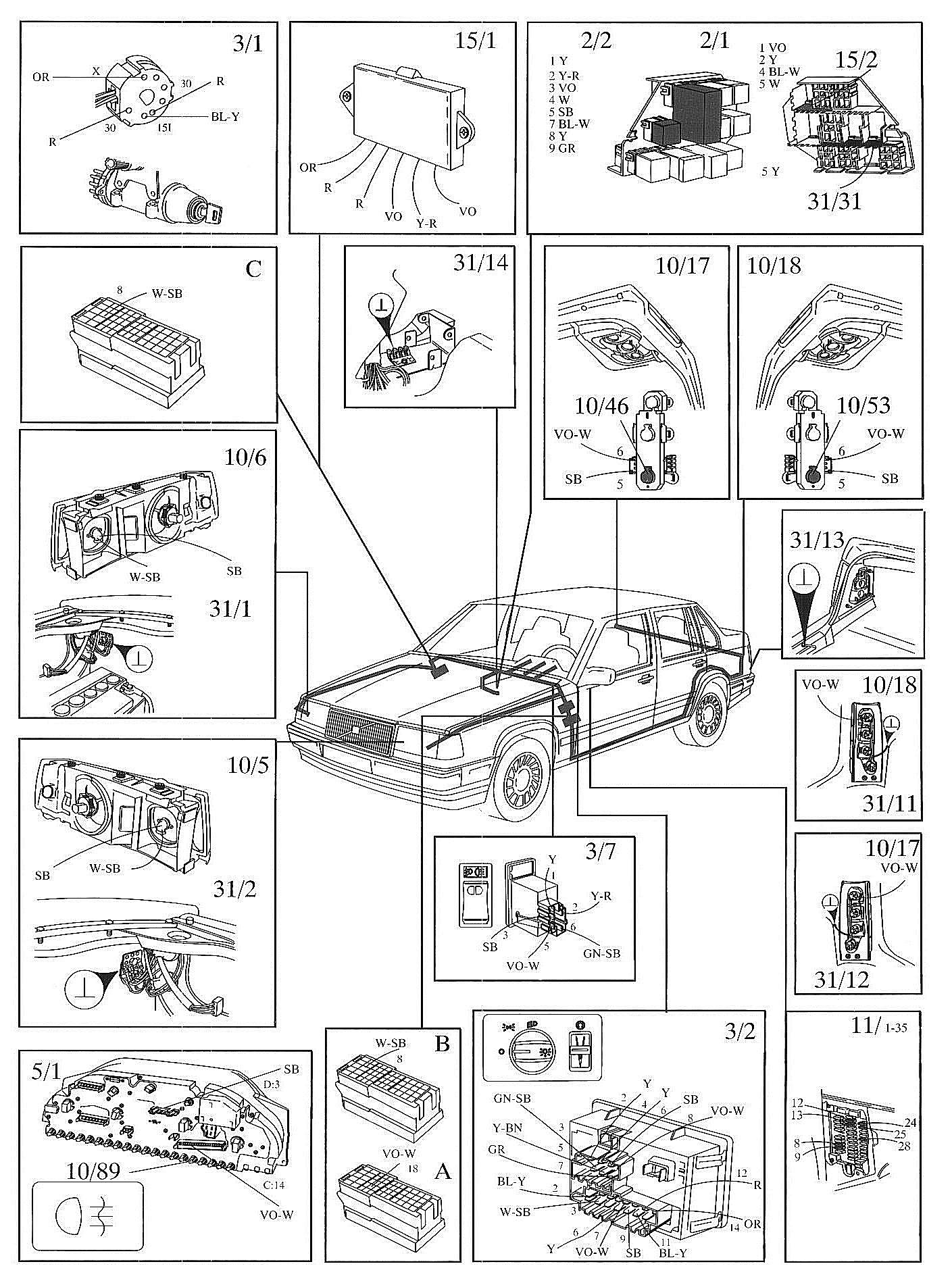

Component / Connector Locations:

LEGEND
1/1 Battery
2/1 Main light relay
2/2 Foglight relay
3/1 Ignition lock
3/2 Light switch
3/7 Foglight switch
5/1C 18-pin connector in combination instrument
5/1D 4-pin connector in combination instrument

10/5 Left foglight
10/6 Right foglight
10/17 Right rear light
10/18 Left rear light
10/46 Right rear foglight
10/53 Left rear foglight
10/72 Ashtray lighting
10/89 Indicator lamp, rear foglight
11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
31/1 Ground connector left front wing
31/2 Ground connector, right front wing
31/11 Ground connector, left rear light
31/12 Ground connector, right rear light
31/13 Ground connector, at fuel primer pump
31/14 Ground connector. at relay unit
31/31 Ground connector rail in relay, unit
