Trunk Lamp

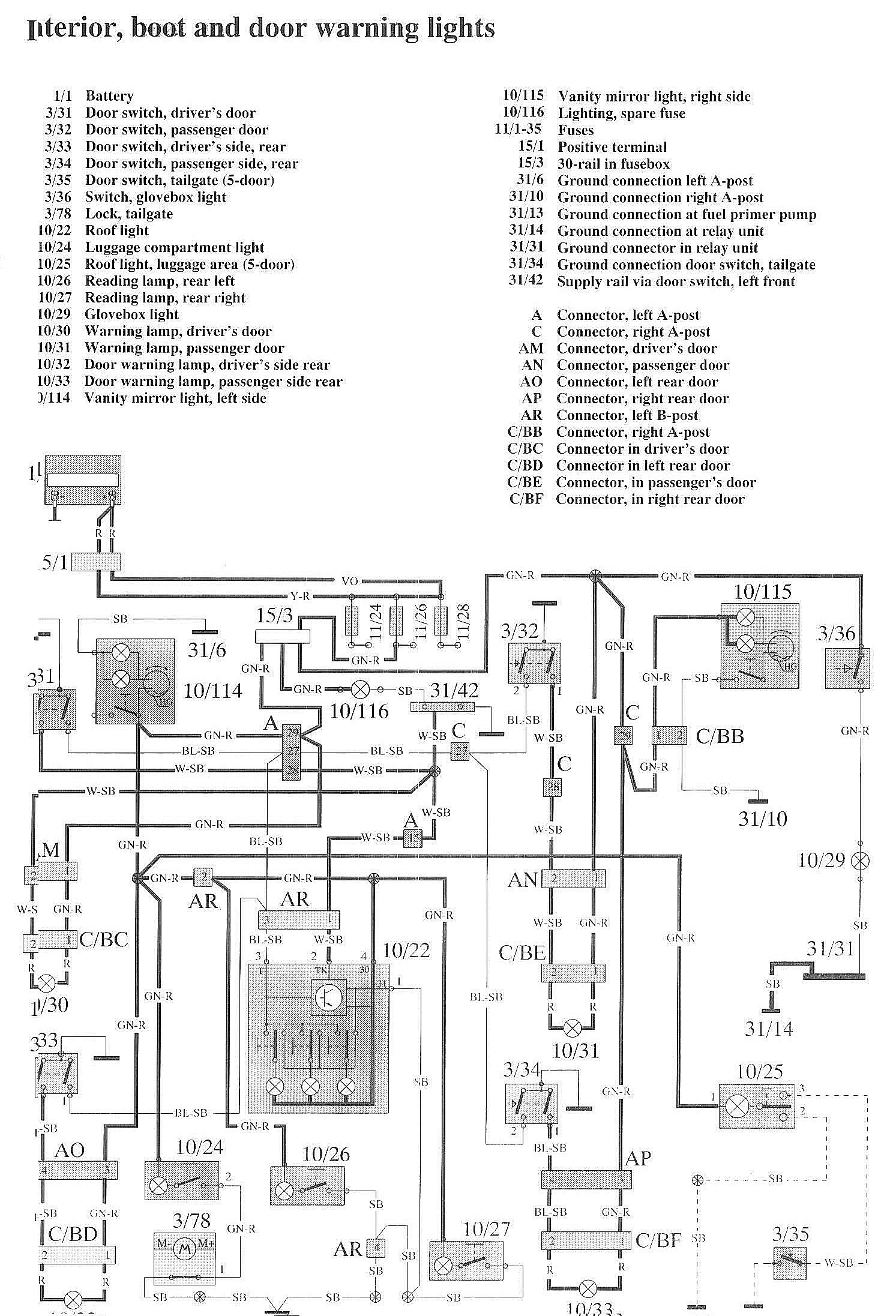

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
3/31 Door switch. driver's door
3/32 Door switch, passenger door
3/33 Door switch, driver's side, rear
3/34 Door switch, passenger side, rear
3/35 Door switch, tailgate (5-door)
3/36 switch, glovebox light
3/78 Lock, tailgate

10/22 Roof light
10/24 Luggage compartment light
10/25 Roof light, luggage area (5-door)
10/26 Reading lamp, rear left
10/27 Reading lamp, rear right
10/29 Glovebox light
10/30 Warning lamp, driver's door
10/31 Warning lamp, passenger door
10/32 Door warning lamp, driver's side rear
10/33 Door warning lamp, passenger side rear
10/114 Vanity mirror light, left side
10/115 Vanity mirror light, right side
10/116 Lighting, spare fuse
11/1-35 Fuses
15/1 Positive terminal
15/3 30-rail in fusebox
31/6 Ground connection left A-post
31/10 Ground connection right A-post
31/13 Ground connection at fuel primer pump
31/14 Ground connection at relay unit
31/31 Ground connector in relay unit
31/34 Ground connection door switch, tailgate
31/42 Supply rail via door switch, left front
