System Diagram

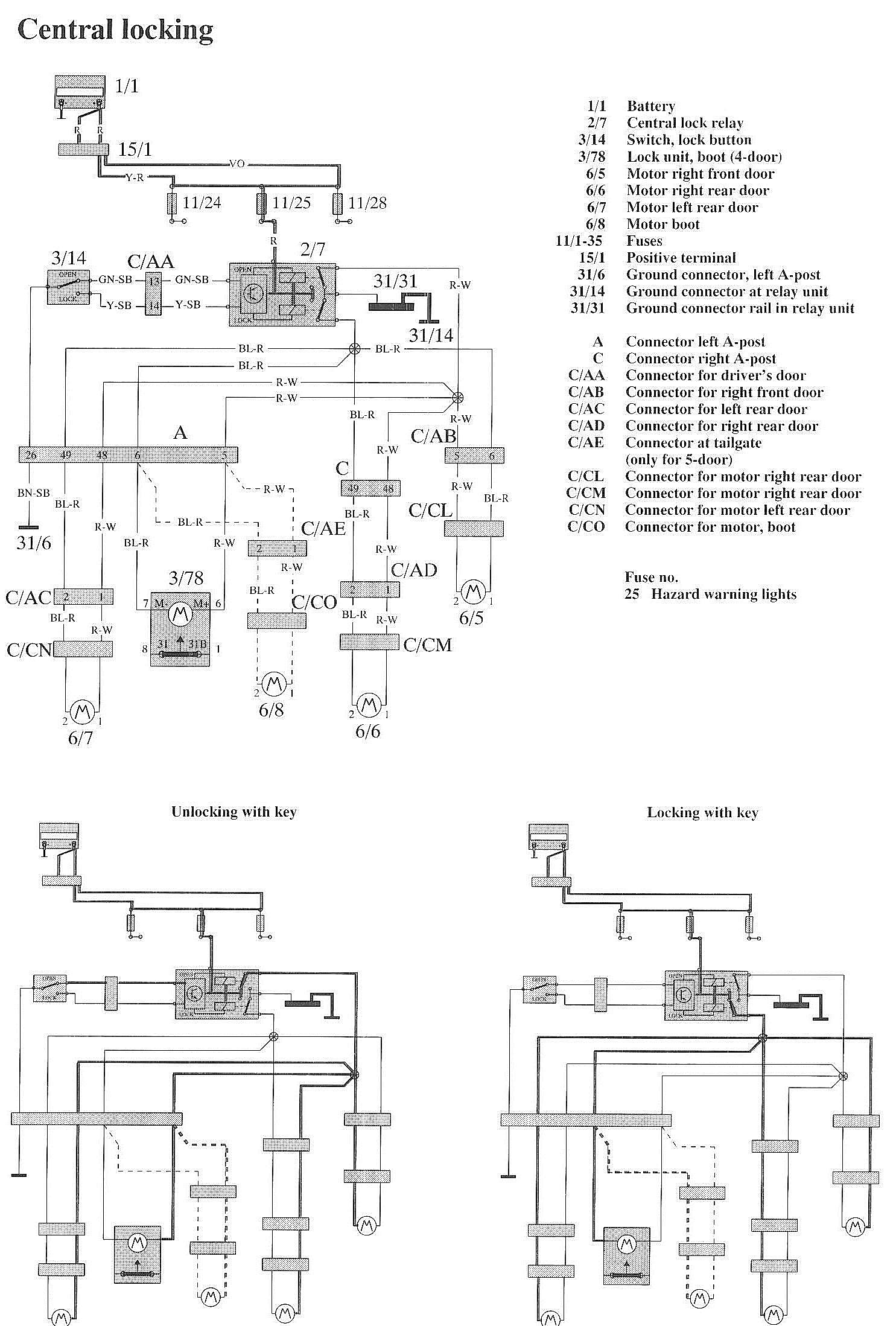

Wiring Diagrams:

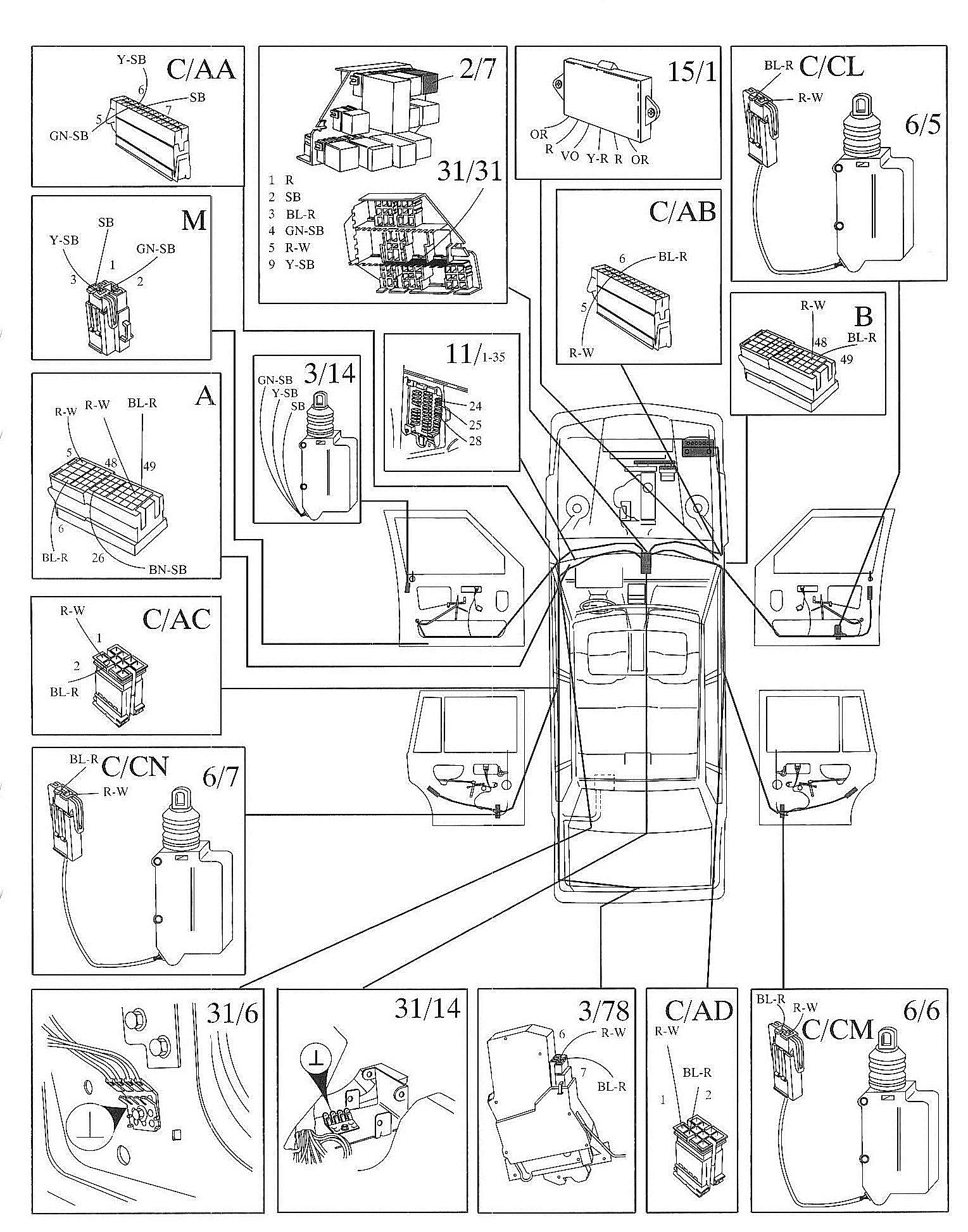

Component / Connector Locations:

LEGEND
1/1 Battery
2/7 Central lock relay
3/14 Switch, lock button
3/78 Lock unit, boot (4-door)
6/5 Motor right front door
6/6 Motor right rear door
6/7 Motor left rear door
6/8 Motor boot

11/1-35 Fuses
15/1 Positive terminal
31/6 Ground connector, left A-post
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
