Overdrive Assembly, M/T

Wiring Diagrams:

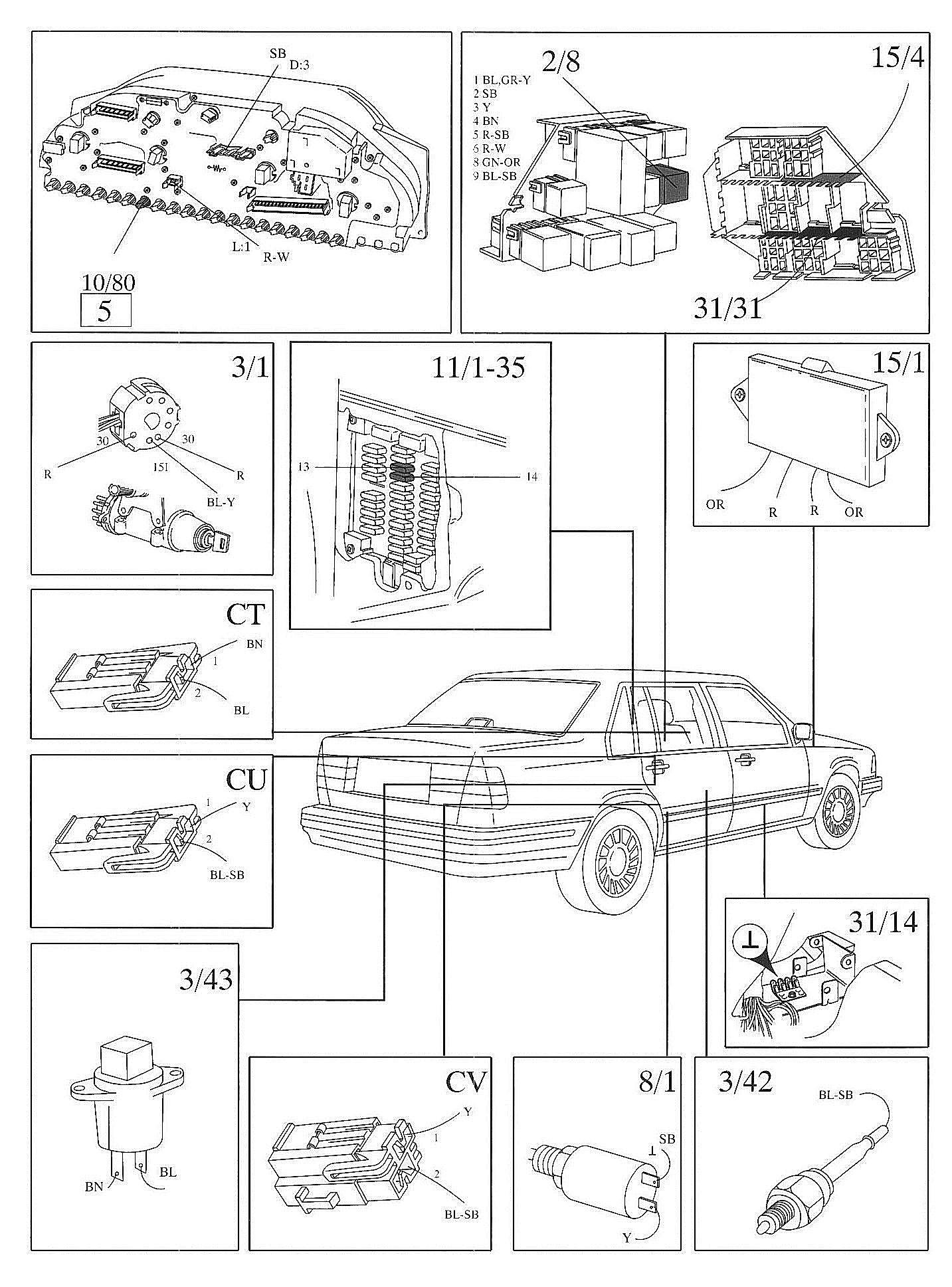

Component / Connector Locations:

LEGEND
1/1 Battery
2/8 Overdrive relay
3/1 Ignition lock
3/42 Contact on gearbox
3/43 Contact in gear lever
5/1D 4-pin connector in combined instrument
5/1L 2-pin connector in combined instrument
8/1 Operating solenoid

10/80 Indicator lamp. overdrive
11/1-35 Fuses
15/1 Positive terminal
15/4 15I-rail in relay unit
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
