System Diagram

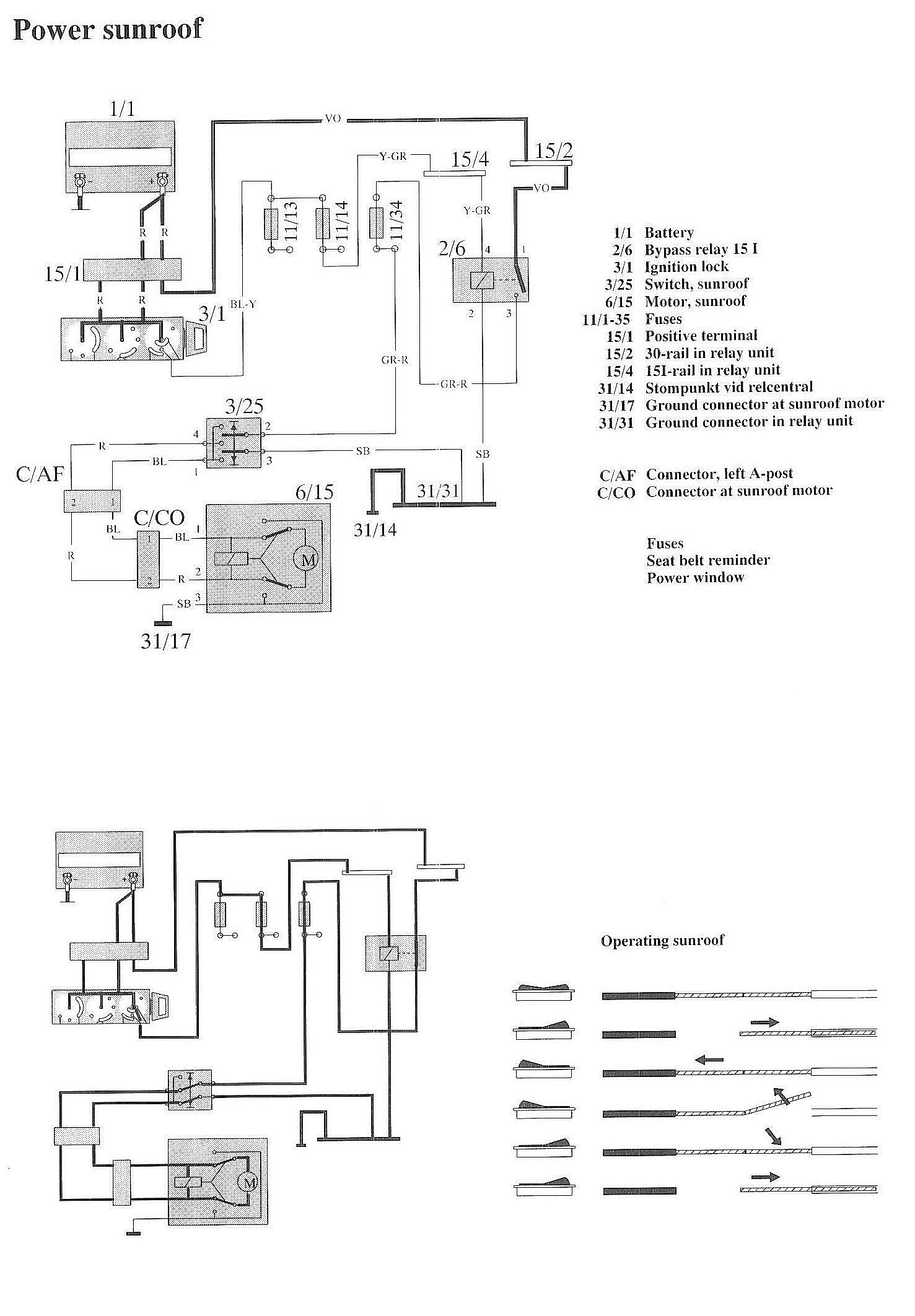

Wiring Diagrams:

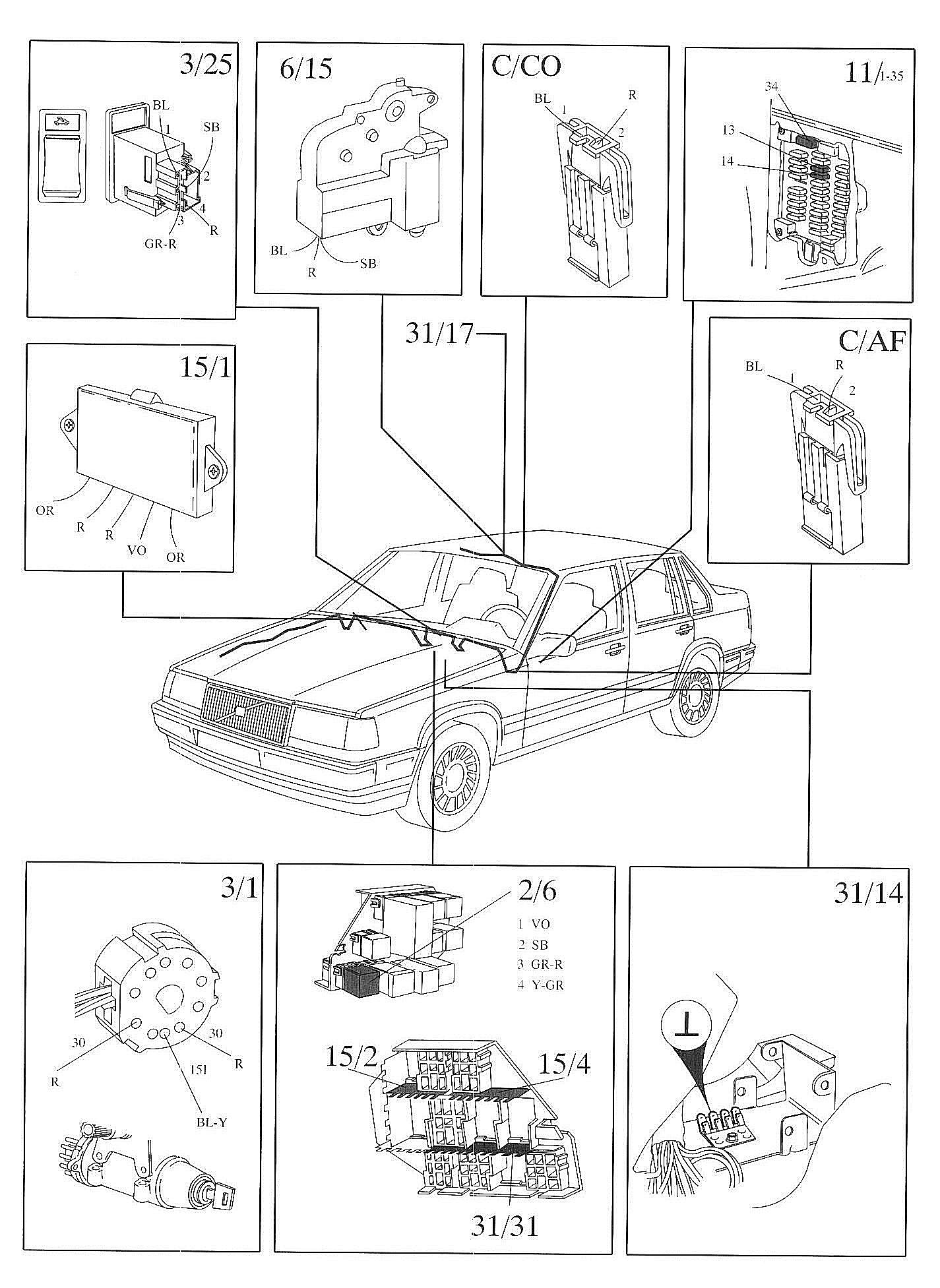

Component / Connector Locations:

LEGEND
1/1 Battery
2/6 Bypass relay 15I
3/1 Ignition lock
3/25 Switch, sunroof
6/15 Motor, sunroof

11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
15/4 15I-rail in relay unit
31/14 Ground point at relay unit
31/17 Ground connector at sunroof motor
31/31 Ground connector in relay unit
