Bulb Failure Sensor and Brake Circuit Monitor

Wiring Diagrams:

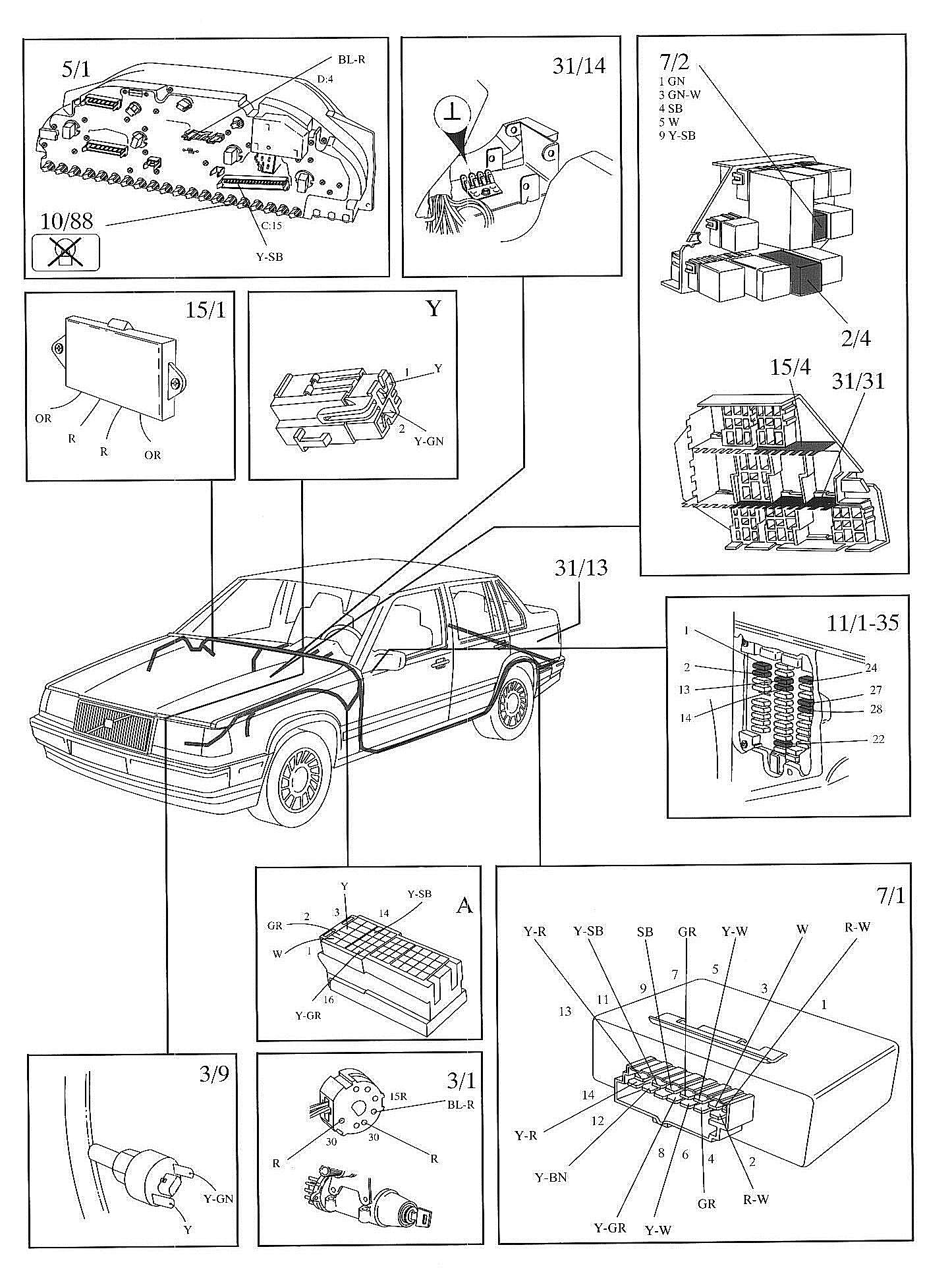

Component / Connector Locations:

LEGEND
1/1 Battery
2/1 Main light relay
2/4 1nternal relay, windscreen wipers
3/1 Ignition lock
3/9 Brake light switch
5/1C 18-pin connector at instrument panel
5/1D 4-pin connector at instrument panel
7/1 Bulb failure sensor, rear
7/2 Bulb failure sensor, front

10/43 Right brake light
10/44 Right parking light, rear
10/45 Right parking/tail light
10/50 Left brake light
10/51 Left parking light, rear
10/52 Left parking/tail light
10/66 Right low beam
10/70 Left low beam
10/88 Indicator lamp, bulb failure sensor
11/1-35 Fuses
15/1 Positive terminal
15/4 15I-rail in relay unit
31/13 Ground connector, left rear light
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
