High/Low Beams

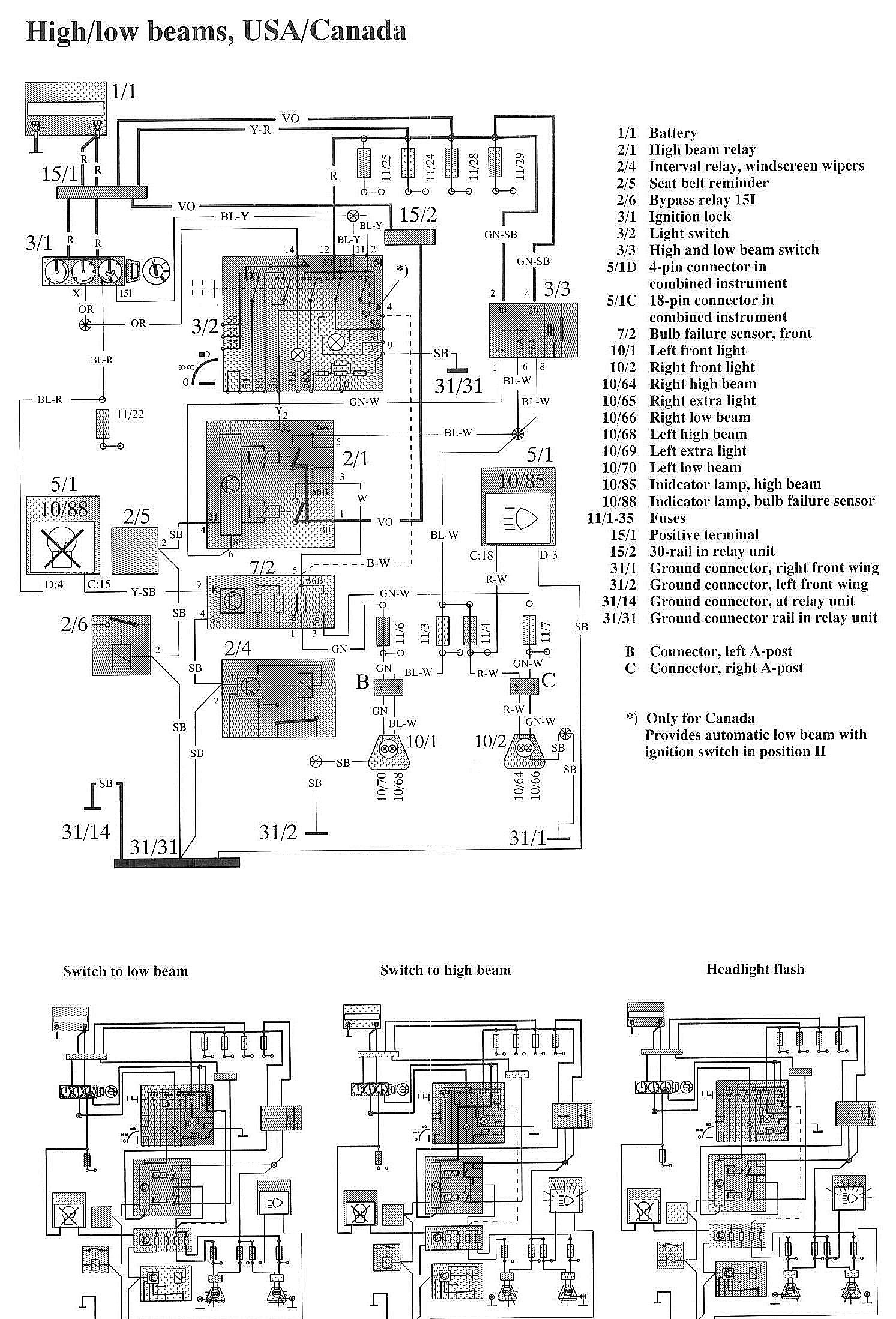

Wiring Diagrams:

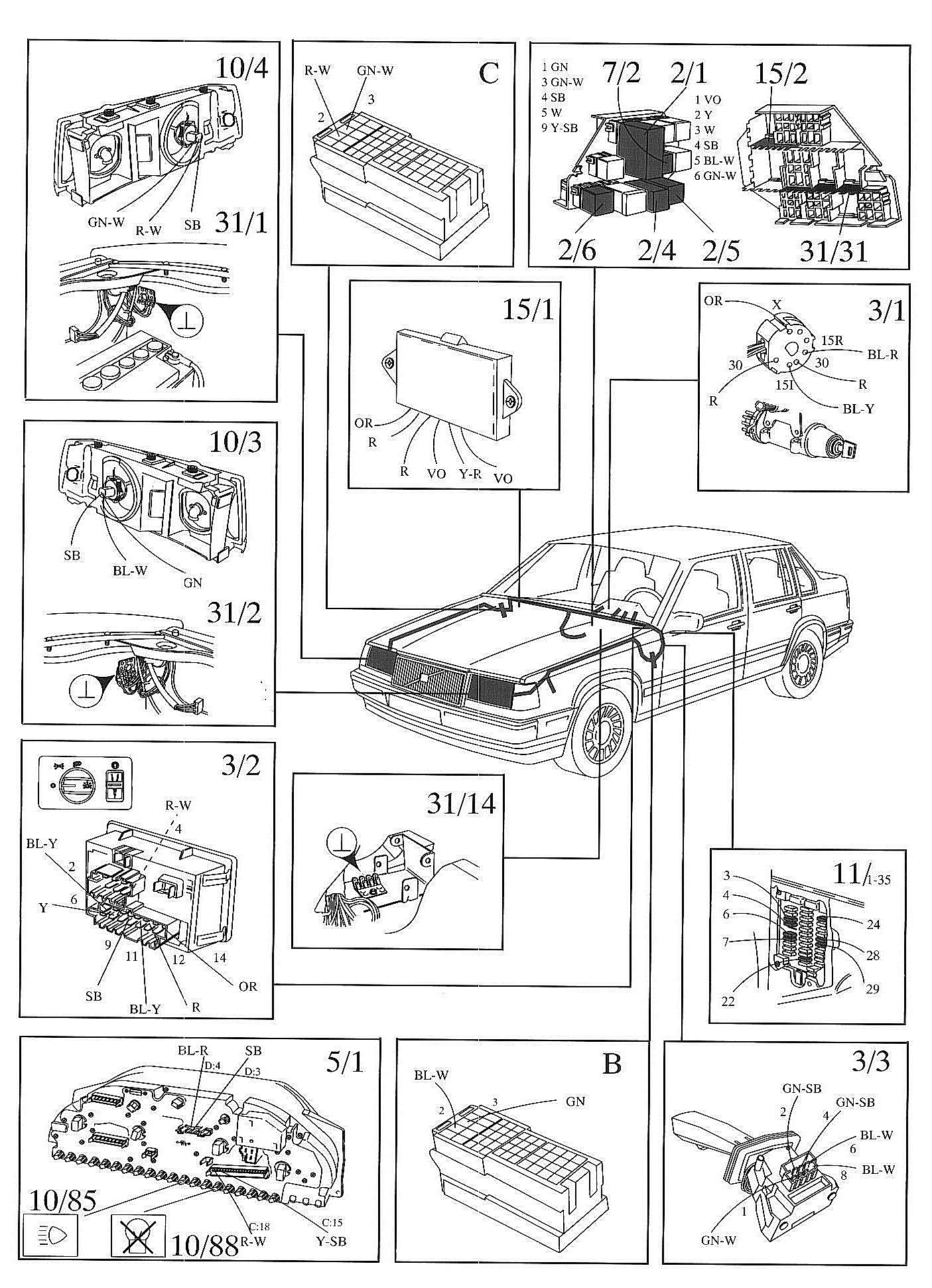

Component / Connector Locations:

LEGEND
1/1 Battery
2/1 High beam relay
2/4 Interval relay, windscreen wipers
2/5 Seat belt reminder
2/6 Bypass relay 15I
3/1 Ignition lock
3/2 Light switch
3/3 High and low beam switch
5/1D 4-pin connector in combined instrument
5/1C 18-pin connector in combined instrument
7/2 Bulb failure sensor, front

10/1 Left front light
10/2 Right front light
10/64 Right high beam
10/65 Right extra light
10/66 Right low beam
10/68 Left high beam
10/69 Left extra light
10/70 Left low beam
10/85 Indicator lamp, high beam
10/88 Indicator lamp, bulb failure sensor
11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
31/1 Ground connector, right front wing
31/2 Ground connector, left front wing
31/14 Ground connector, at relay unit
31/31 Ground connector rail in relay unit
