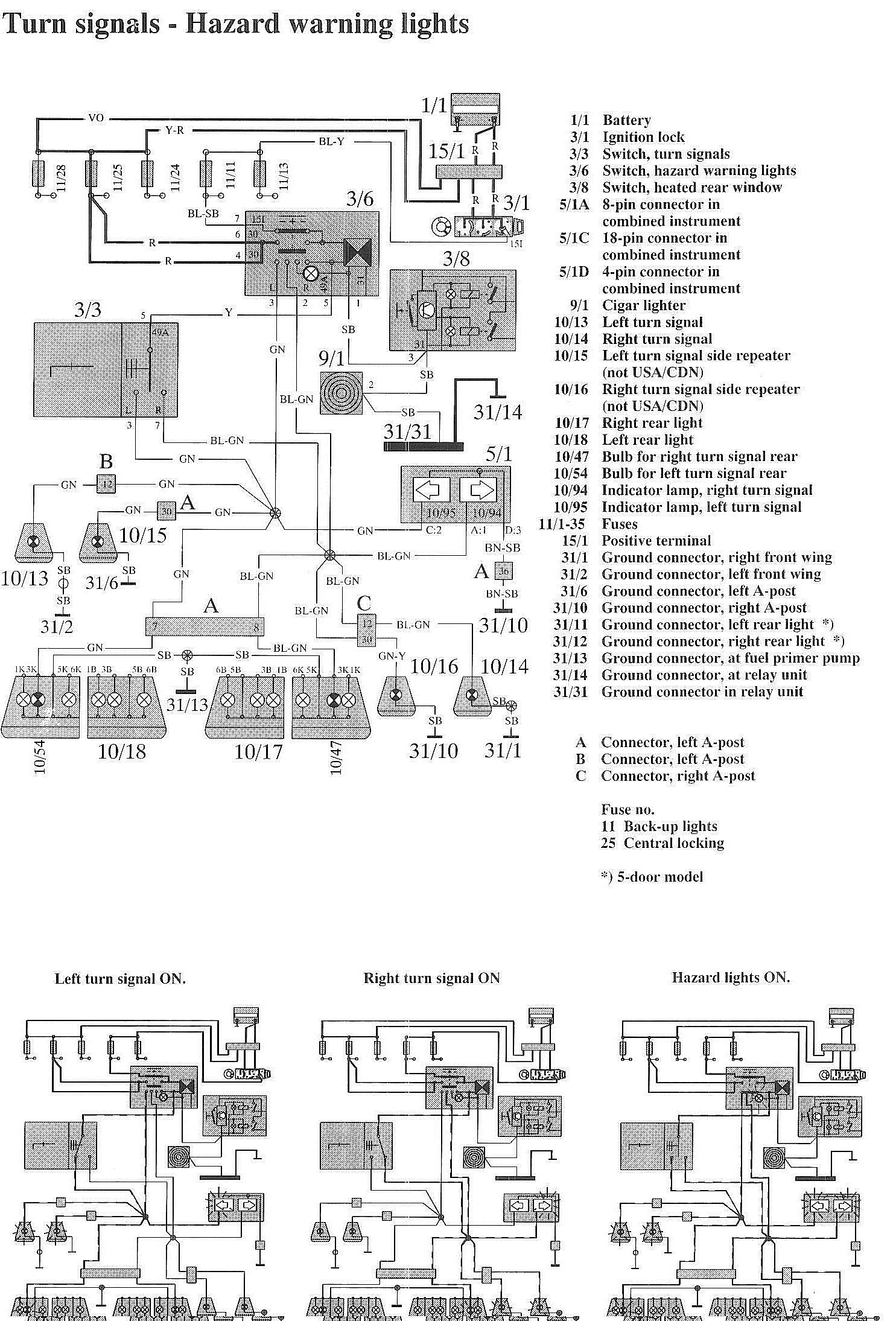

Turn Signals - Hazard Warning Lights

Wiring Diagrams:

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
3/3 Switch, turn signals
3/6 Switch, hazard warning lights
3/8 Switch. heated rear window
5/1A 8-pin connector in combined instrument
5/1C 18-pin connector in combined instrument
5/1D 4-pin connector in combined instrument
9/1 Cigar lighter

10/13 Left turn signal
10/14 Right turn signal
10/15 Left turn signal side repeater (not USA/CAN)
10/16 Right turn signal side repeater (not USA/CAN)
10/17 Right rear light
10/18 Left rear light
10/47 Bulb for right turn signal rear
10/54 Bulb for left turn signal rear
10/94 Indicator lamp, right turn signal
10/95 Indicator lamp, left turn signal
11/1-35 Fuses
15/1 Positive terminal
31/1 Ground connector, right front wing
31/2 Ground connector, left front wing
31/6 Ground connector, left A-post
31/10 Ground connector, right A-post
31/11 Ground connector, left rear light
31/12 Ground connector, right rear light
31/13 Ground connector, at fuel primer pump
31/14 Ground connector, at relay unit
31/31 Ground connector in relay unit
