Electrical Diagrams

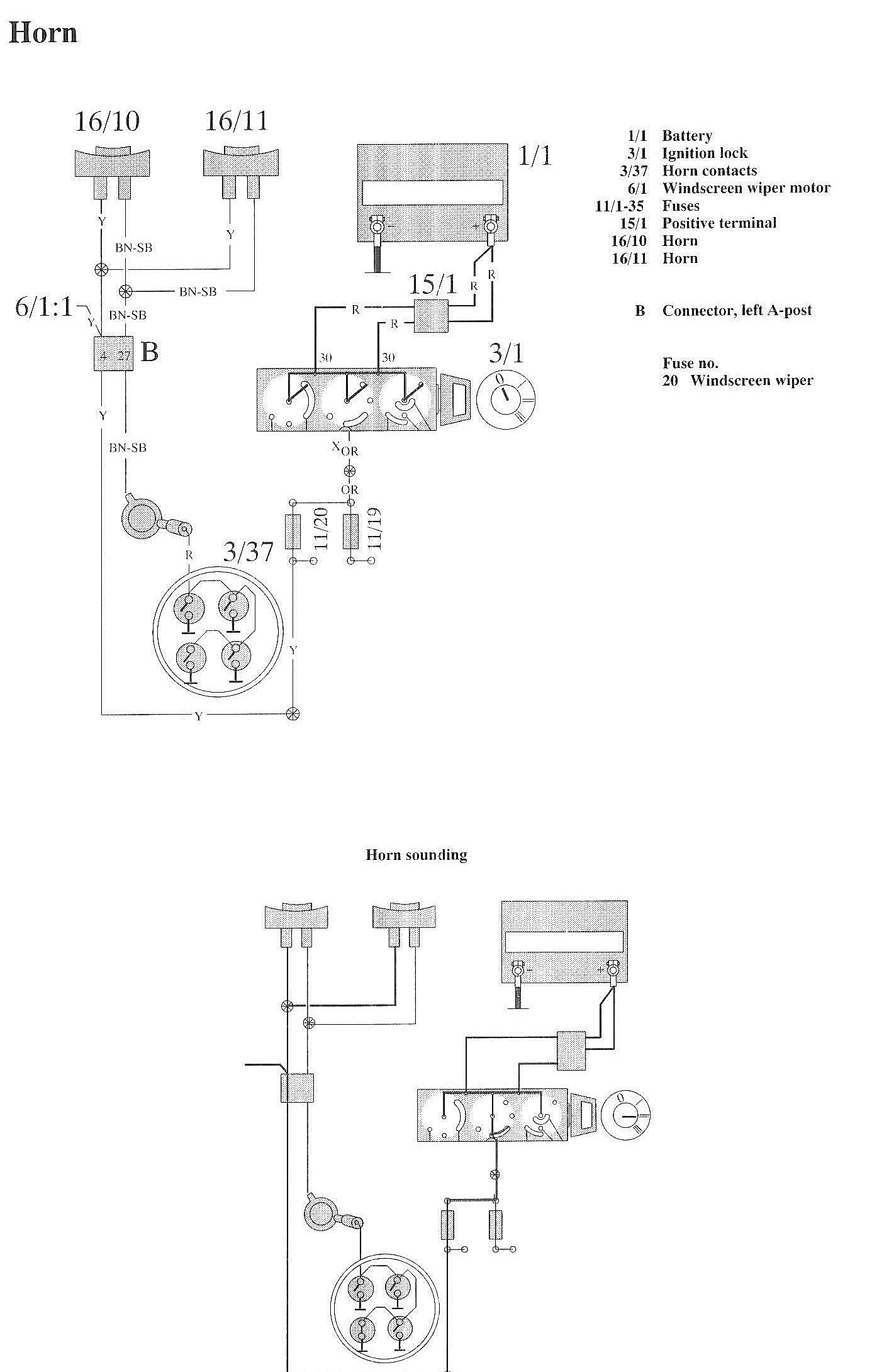

Wiring Diagrams:

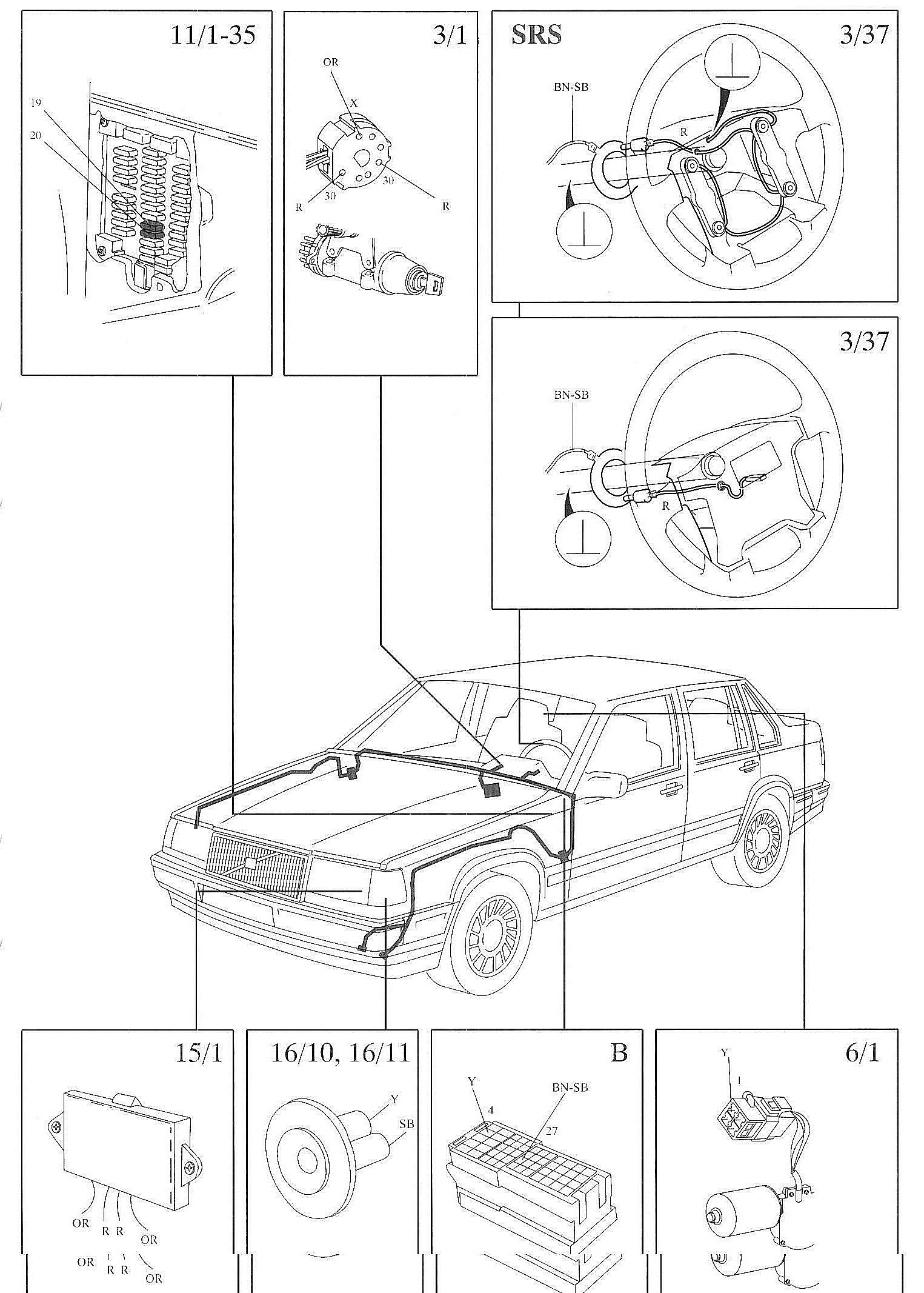

Component / Connector Locations:

LEGEND
1/1 Battery
3/1 Ignition lock
3/37 Horn contacts
6/1 Windscreen wiper motor

11/1-35 Fuses
15/1 Positive terminal
16/10 Horn
16/11 Horn
