Beam Control

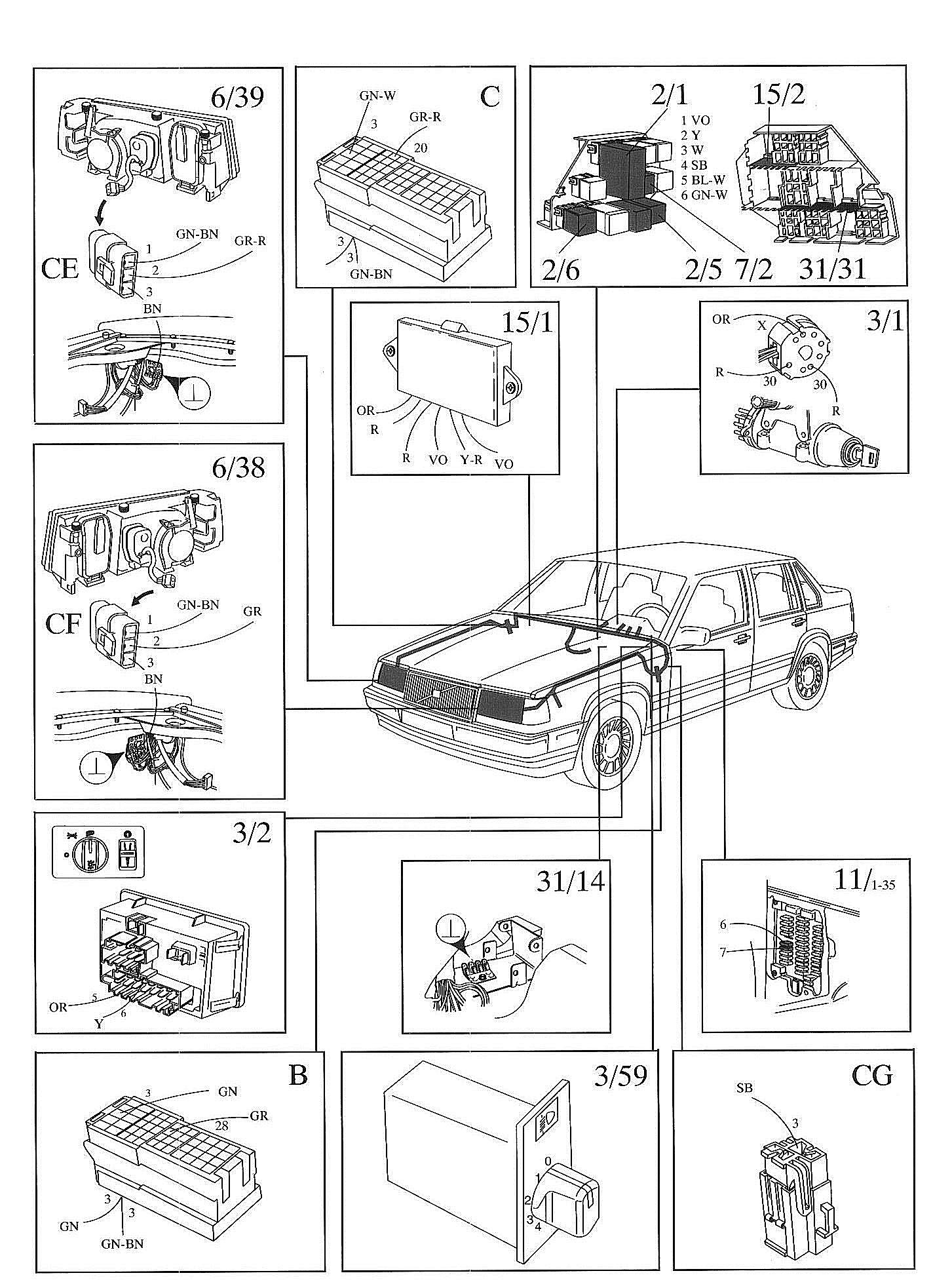

Component / Connector Locations:

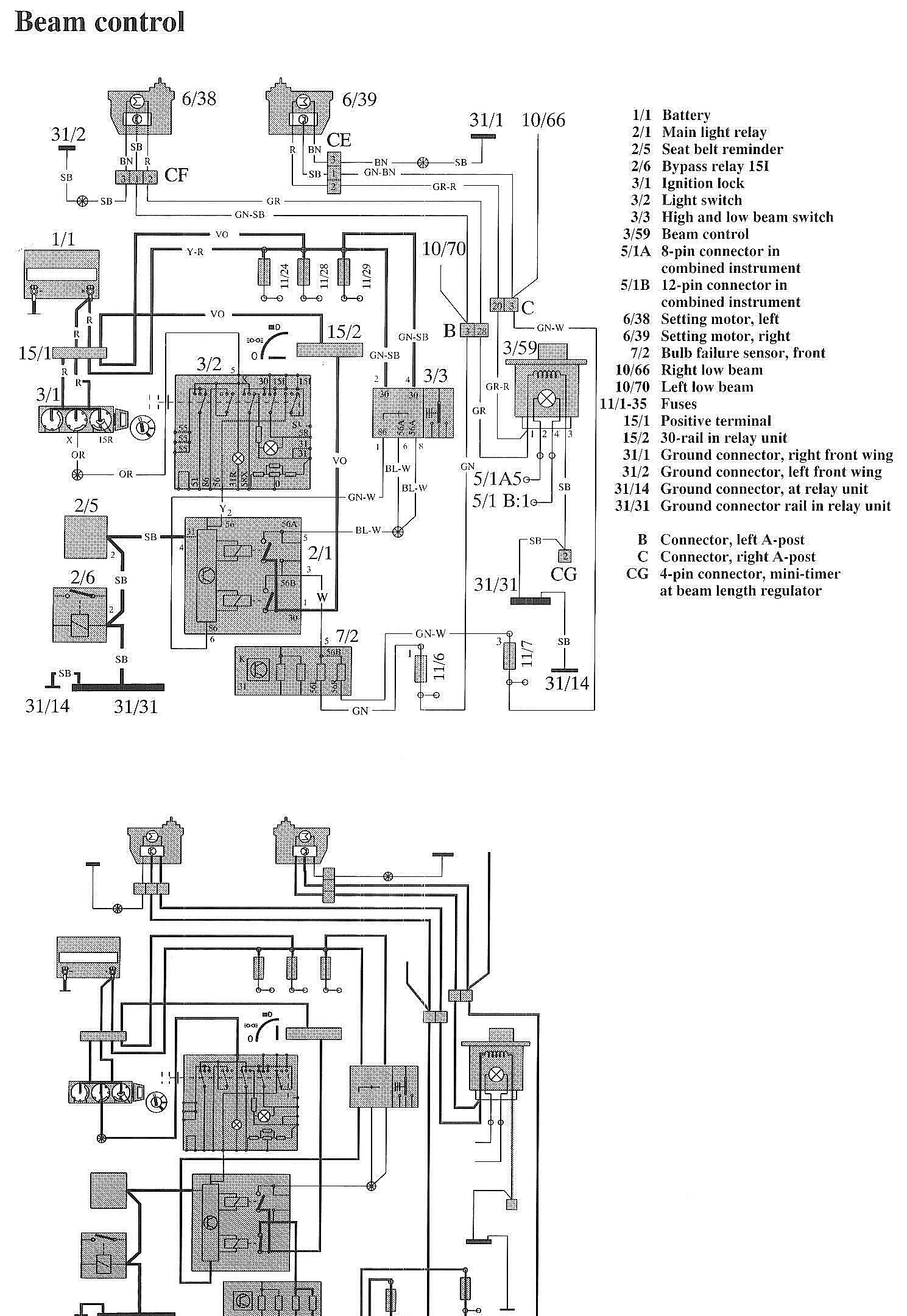

Wiring Diagrams:

LEGEND
1/1 Battery
2/1 Main light relay
2/5 Seat belt reminder
2/6 Bypass relay 15I
3/1 Ignition lock
3/2 Light Switch
3/3 High and low beam switch
3/59 Beam control
5/1A 8-pin connector in combined instrument
5/1B 12-pin connector in combined instrument
6/38 Setting motor, left
6/39 Setting motor, right
7/2 Bulb failure sensor, front

10/66 Right low beam
10/70 Left low beam
11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
31/1 Ground connector, right front wing
31/2 Ground connector, left front wing
31/14 Ground connector, at relay unit
31/31 Ground connector rail in relay unit
