Fuse Block: Service and Repair

Fusebox Removal




- Remove battery negative lead.
- Remove cover from left side of instrument panel (right side on RHD cars).

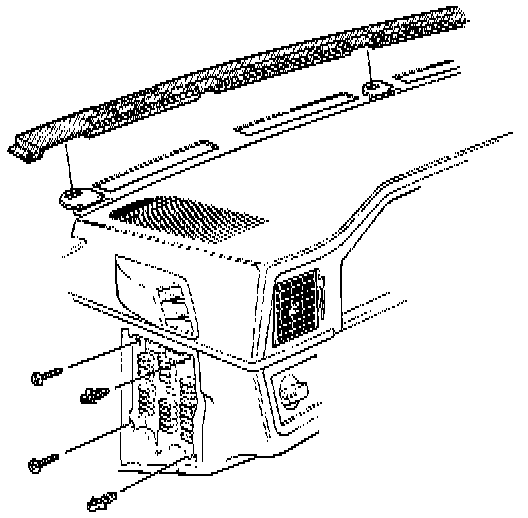

- Detach fusebox:
Turn the two clips a quarter of a turn and pull straight out At the same time remove the two screws.
- Reassemble in reverse order.
Insert front of cover first and press into position.
