Campaign - Engine Speed Sensor (RPM) Replacement

PRODUCT
CARS



GROUP
28



NO.
60-A



SUBJECT:
Engine Speed (RPM) Sensor Replacement (Service Campaign 60-A)



DATE:
NOVEMBER, 1992



Reference:
SMB Gr. 00, No. 139A


This bulletin deals with replacement of the Engine Speed (RPM) sensor on M/Y 1992 960's. The sensor must be replaced on all affected vehicles even if the sensor was replaced previously.


Parts required:
RPM sensor:
p/n 3547699-3
Grease:
p/n 1161417-9

Tools Required:
Torx 25 driver

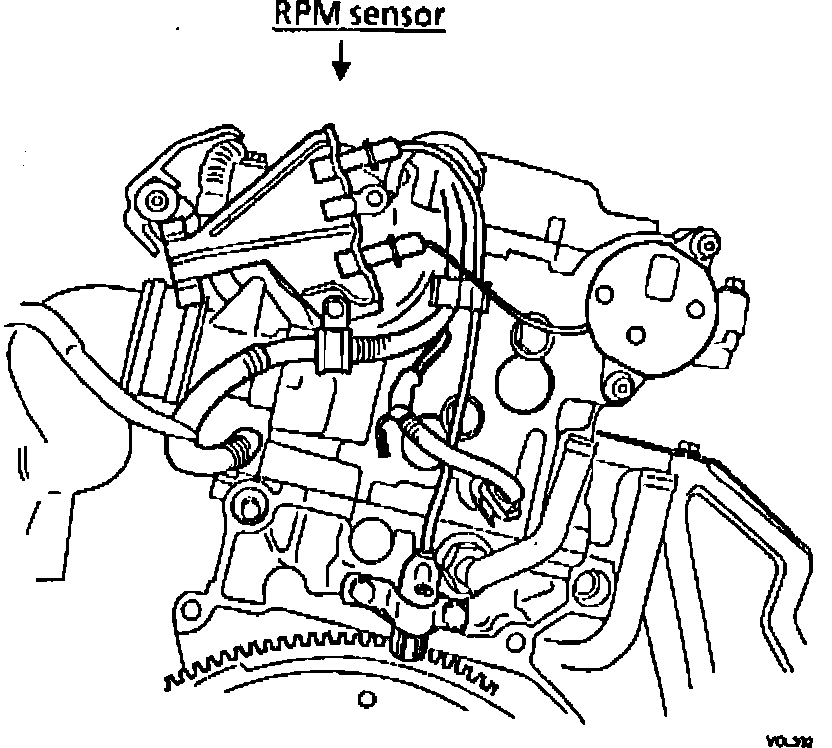

1. Remove RPM sensor using Torx 25 driver



2. Install New RPM sensor, p/n 3547699-3 into housing. Apply grease, p/n 1161417-9 to male connector before connecting it to vehicle wiring harness.



3. Start engine and test drive. Check diagnostic system to ensure that no Diagnostic Trouble Codes (DTC's) are present.
