Shift Interlock: Locations

Component / Connector Locations:

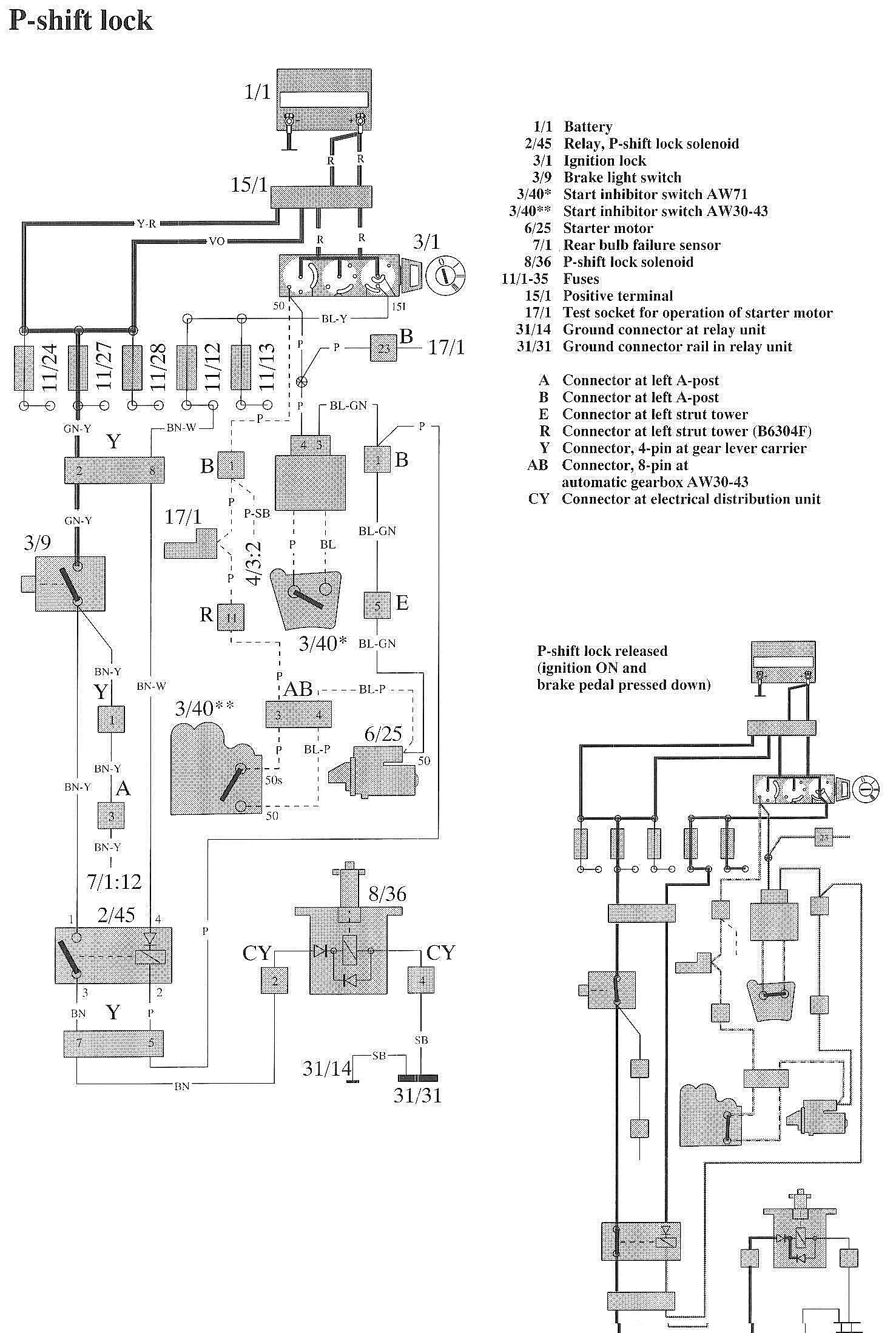

Wiring Diagrams:

LEGEND
1/1 Battery
2/45 Relay, P-shift lock solenoid
3/1 Ignition lock
3/9 Brake light switch
3/40* Start inhibitor switch AW71
3/40** Start inhibitor switch AW30-43
6/25 Starter motor
7/1 Rear bulb failure sensor
8/36 P-shift lock solenoid

11/1-35 Fuses
15/1 Positive terminal
17/1 Test socket for operation of starter motor
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
