Tailgate Wash/Wipe

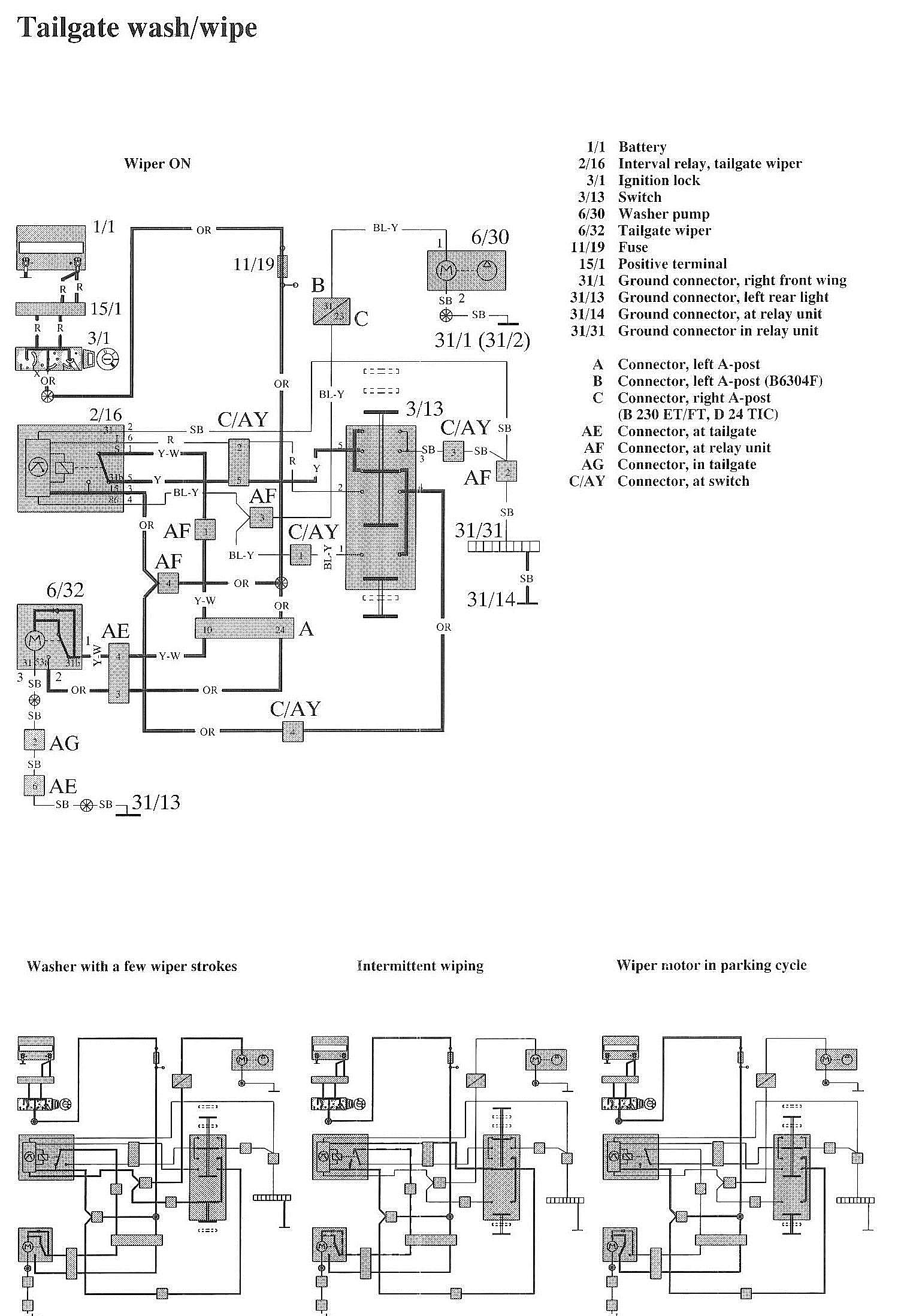

Wiring Diagrams:

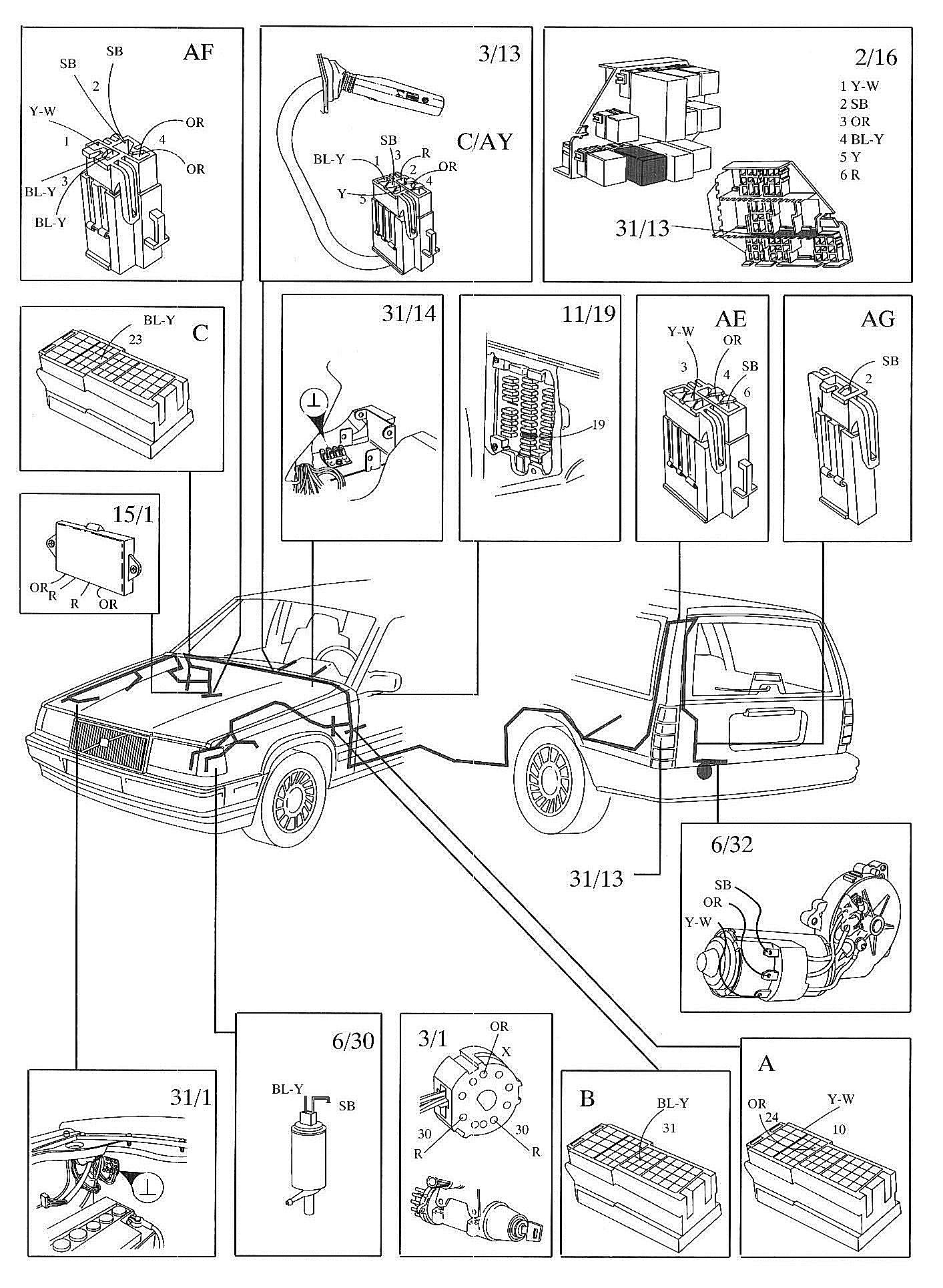

Component / Connector Locations:

LEGEND
1/1 Battery
2/16 Interval relay, tailgate wiper
3/1 Ignition lock
3/13 Switch
6/30 Washer Pump
6/32 Tailgate wiper

11/19 Fuse
15/1 Positive terminal
31/1 Ground connector, right front wing
31/13 Ground connector, left rear light
31/14 Ground connector, at relay unit
31/31 Ground connector in relay unit
