Windscreen Wash/Wipe

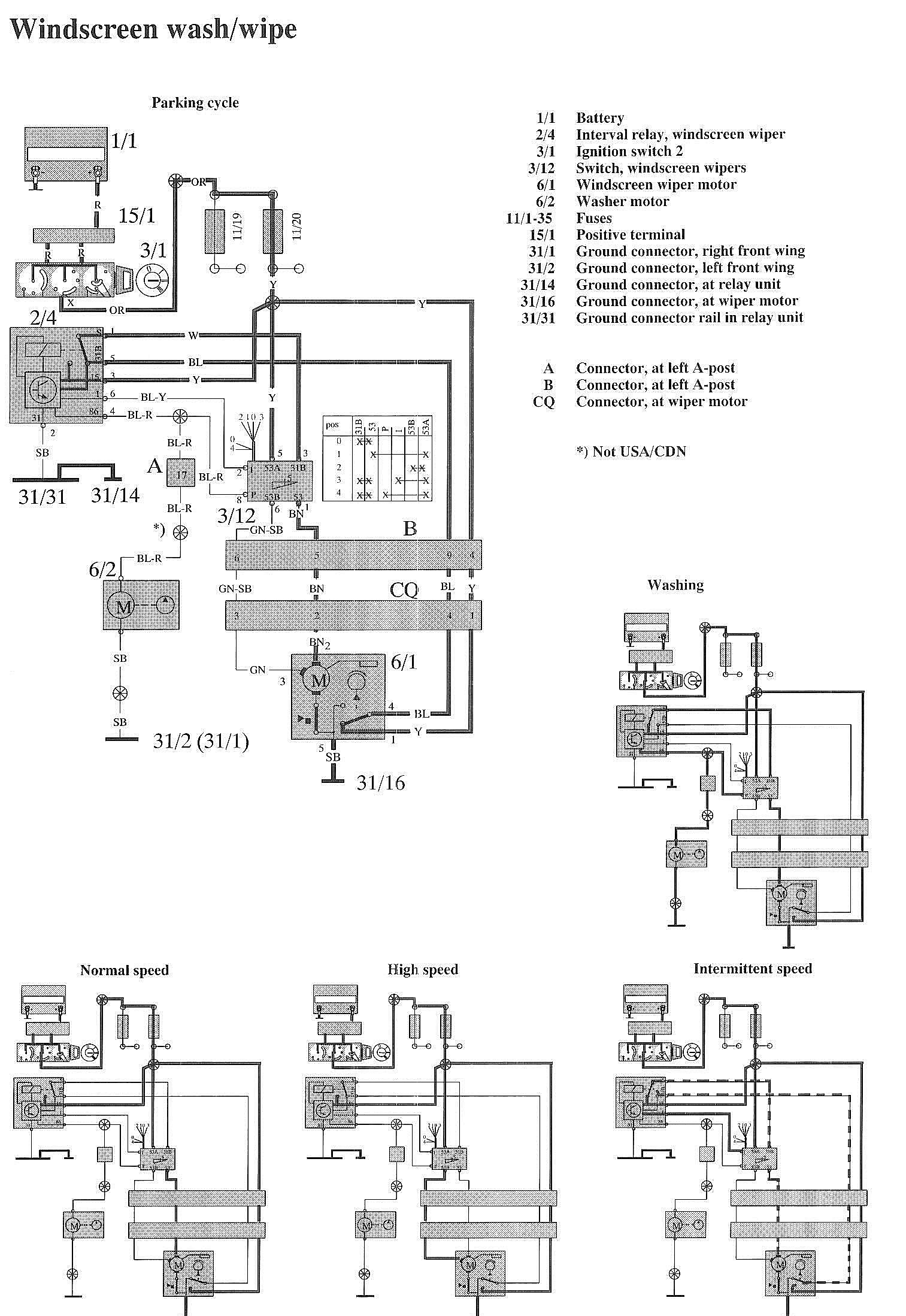

Wiring Diagrams:

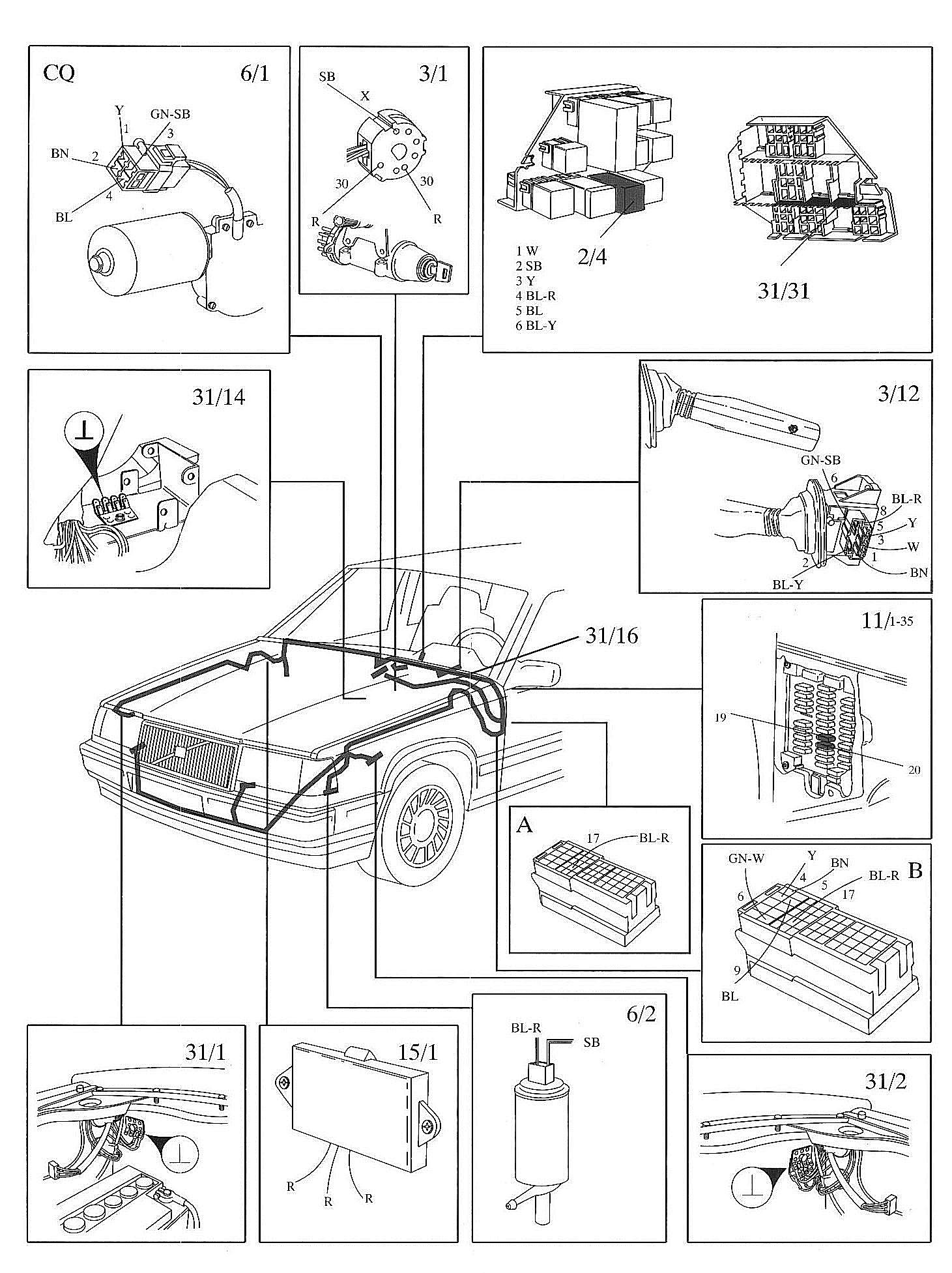

Component / Connector Locations:

LEGEND
1/1 Battery
2/4 Interval relay, windscreen wiper
3/1 Ignition switch 2
3/12 Switch, windscreen wipers
6/1 Windscreen wiper motor
6/2 Washer motor

11/1-35 Fuses
15/1 Positive terminal
31/1 Ground connector, right front wing
31/2 Ground connector, left front wing
31/14 Ground connector, at relay unit
31/16 Ground connector, at wiper motor
31/31 Ground connector rail in relay unit
