Electrical Diagrams

Wiring Diagrams:

Component / Connector Views:

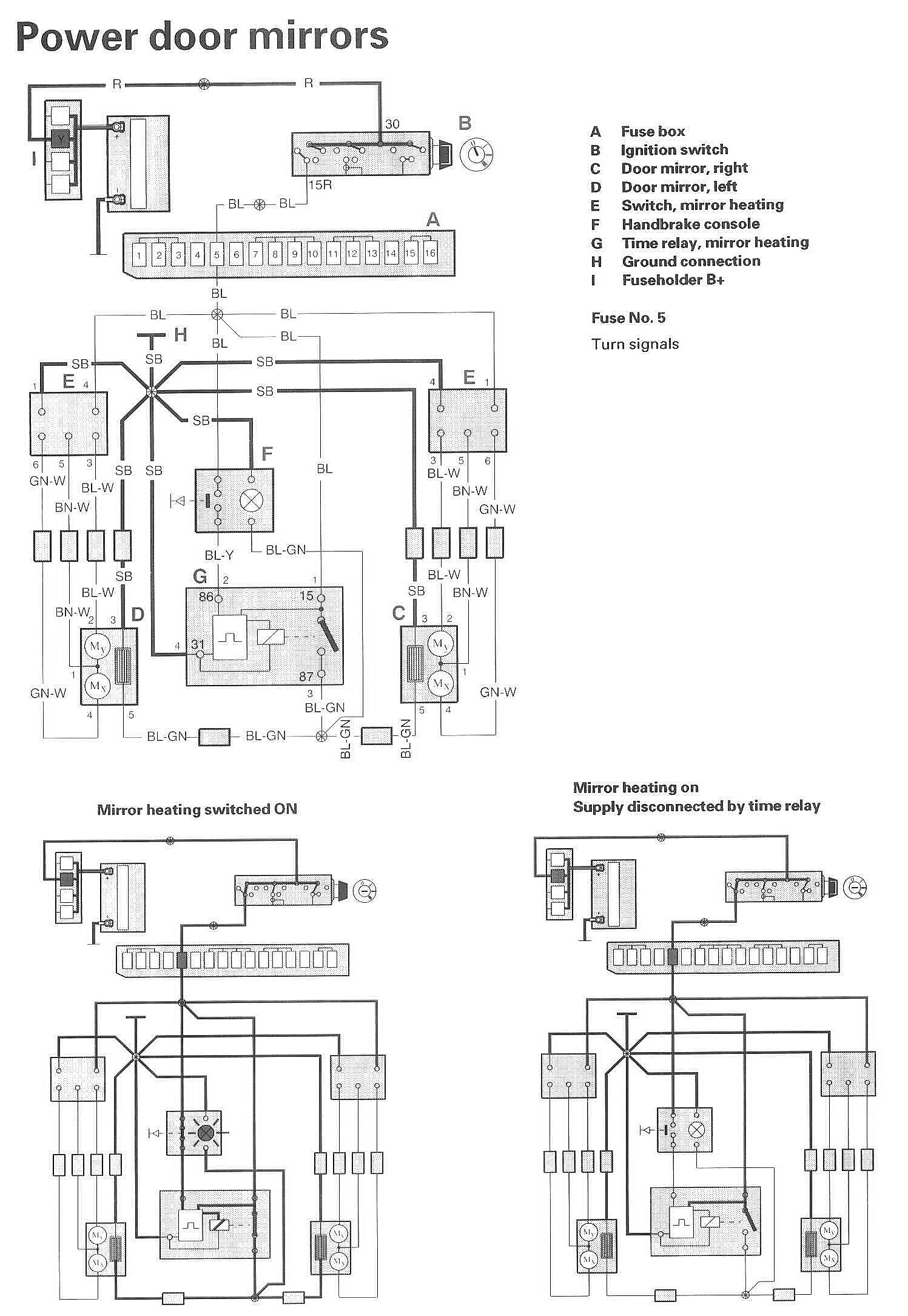

LEGEND
A Fusebox
B Ignition switch
C Door mirror, right
D Door mirror, left
E Switch, mirror heating
F Handbrake console
G Time relay, mirror heating
H Ground connection
I fuse holder B+
