Cruise Control Module: Service and Repair

Replacing control unit

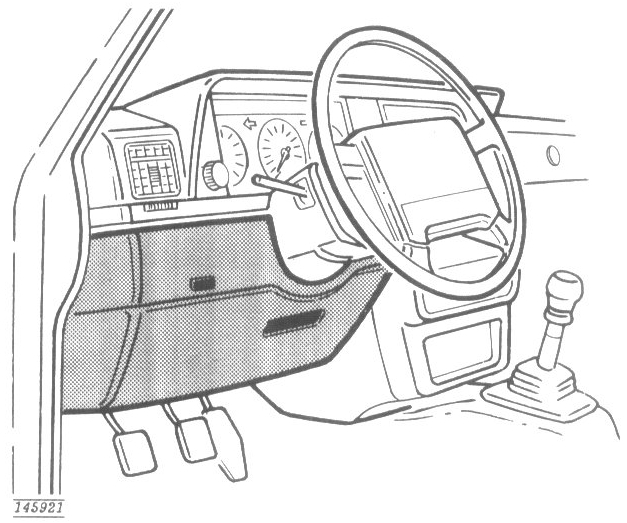

Remove knee bolster
Remove knee bolster access panel. Remove screws behind the access panels. Remove bolster.

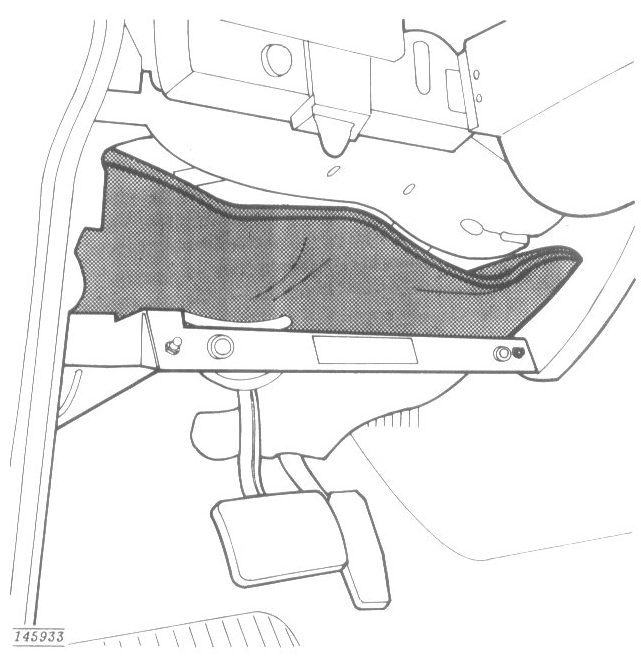

Fold down sound proofing

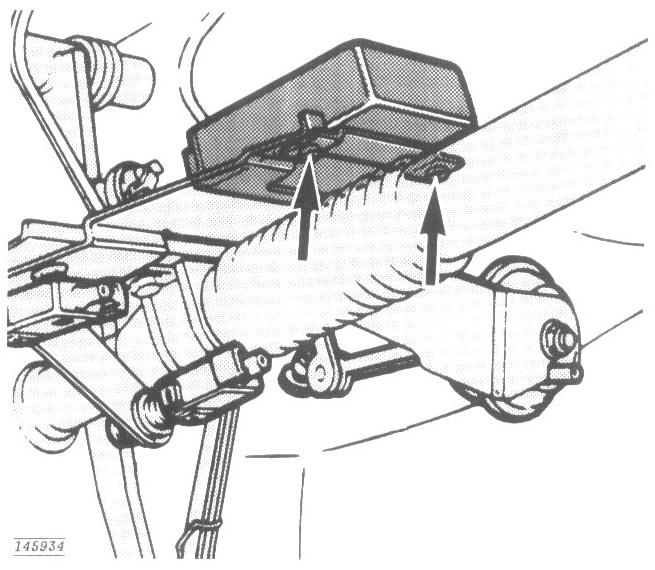

Replace control unit
Remove the control unit and disconnect the control unit connector.
Connect new control unit connector and install new control unit.

Reinstall all parts
